6.3 RECALL MEASUREMENTS

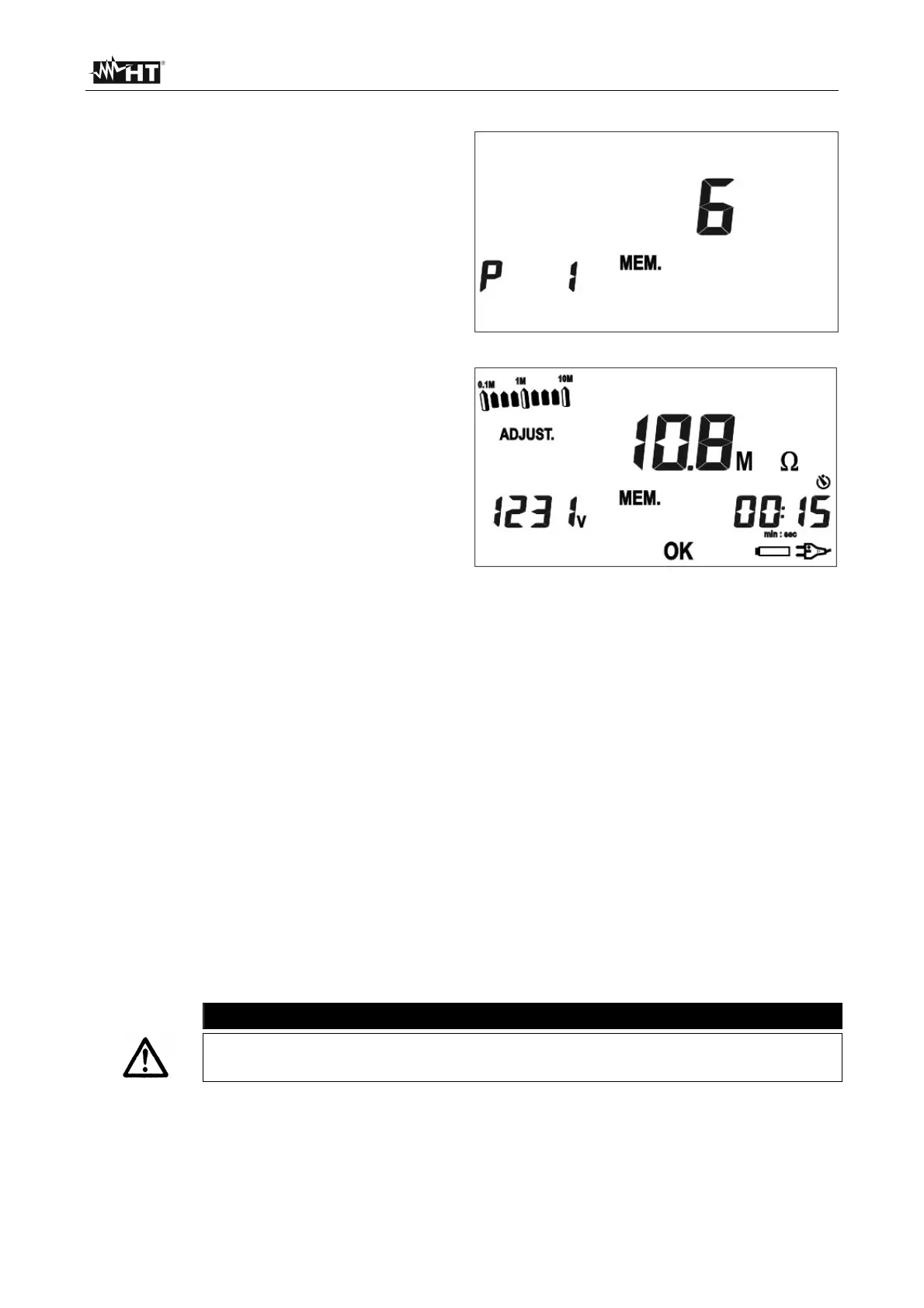

1. Press the ESC/RECALL MEM key. The
display shows a screen similar to that
reported here to the side, which
contains:
The number of the last memory
location used
The value of parameter P
2. Press the arrow keys to select the memory location whose content is to be displayed.
3. Press the SET/DISPLAY MEM key to
display the measure contained in the
selected memory location, the display
shows a screen similar to that reported
here to the side.
4. By pressing the arrow keys it is also possible to cyclically display (according to the
mode in which the saved measurement was performed) the leakage current, the
DAR (Dielectric Absorption Ratio), the PI (Polarization Index), the capacitance and
the number N of cycles.
5. Press the ESC/RECALL MEM key to go back to the previous screen and press the
ESC/RECALL MEM key again to exit memory management.
7 RESET OF INSTRUMENT
1. Turn on the instrument by pressing the relevant key
2. Press and hold the SET/DISPLAY MEM key. After approximately 10 seconds, the
instrument is reset and turns off
8 CONNECTION OF THE INSTRUMENT TO PC
The connection between the PC and the instrument is obtained by means of a serial port
and the RS-232 cable, supplied with the software pack. Before connection, it is necessary
to select the COM port used for transmission by the PC and the correct baud rate (9600).
To set these parameters, launch the management software and consult the program’s help
on line.
CAUTION
The selected port must NOT be used by other devices or applications (e.g.
mouse, modem, etc…).
The procedure for transferring saved data to a PC can be schematized as follows:
1. Turn on the instrument and wait for the initial screen to disappear
2. Connect the RS-232 cable to the instrument and to a COM port of the PC
3. Launch the data management program on the PC
4. Follow the instructions of the software’s help on line
