IRONMETER
EN - 8
4.3.2. AC Voltage measurement
CAUTION
The maximum input AC voltage is 600V. Do not measure voltages
exceeding the limits given in this manual. Exceeding voltage limits could
result in electrical shocks to the user and damage to the instrument.

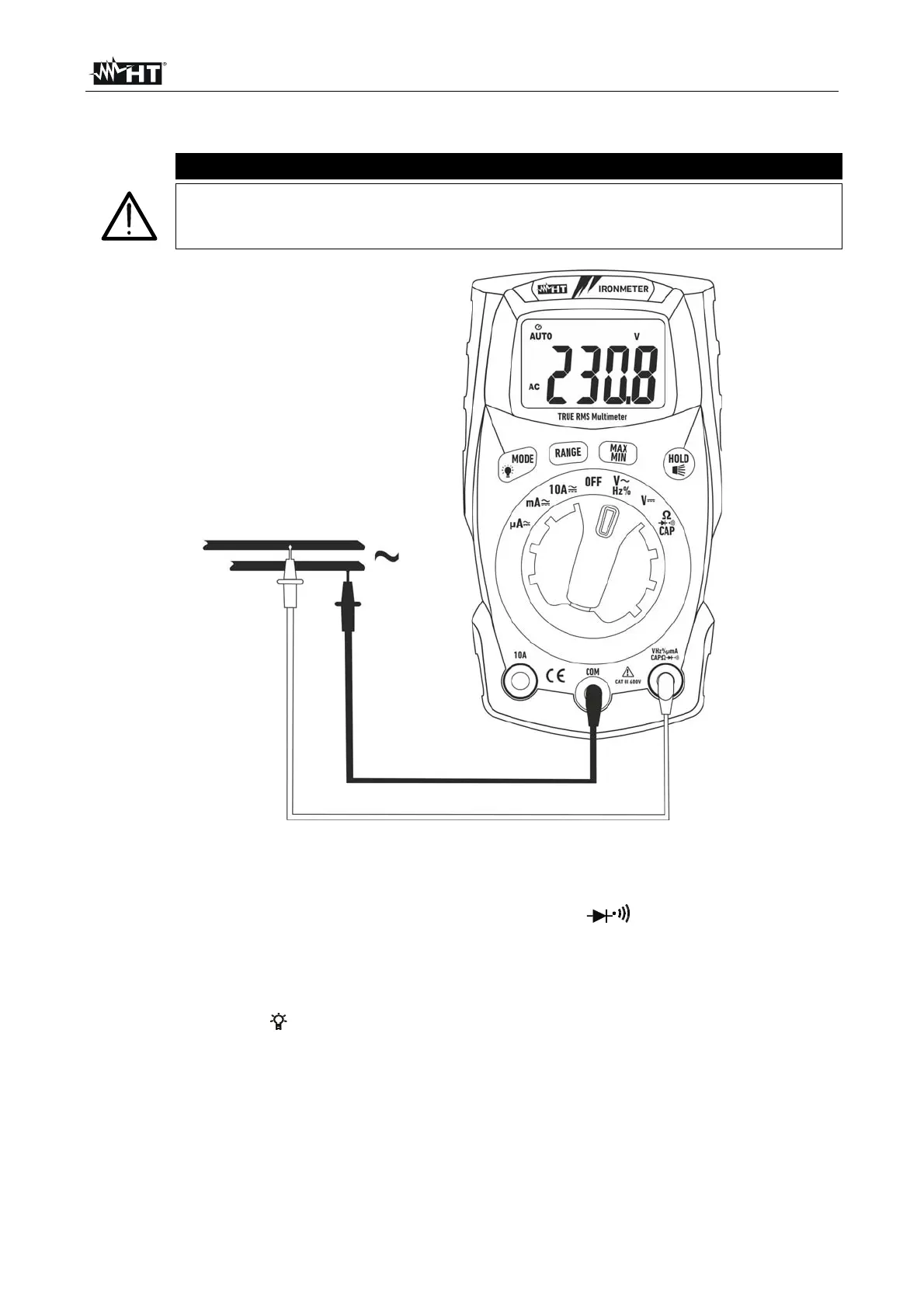

Fig. 4: Use of the instrument for AC voltage measurement
1. Select position VHz%
2. Insert the red cable into input terminal VHz%mACAP
and the black cable into
input terminal COM.
3. Position the red lead and the black lead respectively in the spots of the circuit to be
measured (see Fig. 4). The display shows the value of voltage.
4. If the display shows the message "O.L", select a higher range.
5. Press the MODE/ key to select measurements “Hz” or “%” in order to display the
values of frequency and duty cycle of input voltage.
6. To use the HOLD, RANGE and MAX MIN functions, see § 4.2
