HT JUPITER User Manual

JUPITER
IT - 32
9. Upon recognition of the event, measurement stops automatically and the instrument
shows, in its main display, the Max RMS value calculated according to the evaluation
time of 100ms (default) indicated on the secondary display (see Fig. 43 – right side)
10. Press keys / or  to select the display of the following parameters:
 Peak value “Pk” calculated in 1ms (see Fig. 44 – left side)
 Max RMS value calculated in 16.7ms
 Max RMS value calculated in 20ms
 Max RMS value calculated in 50ms
 Max RMS value calculated in 100ms
 Max RMS value calculated in 150ms
 Max RMS value calculated in 175ms
 Max RMS value calculated in 200ms

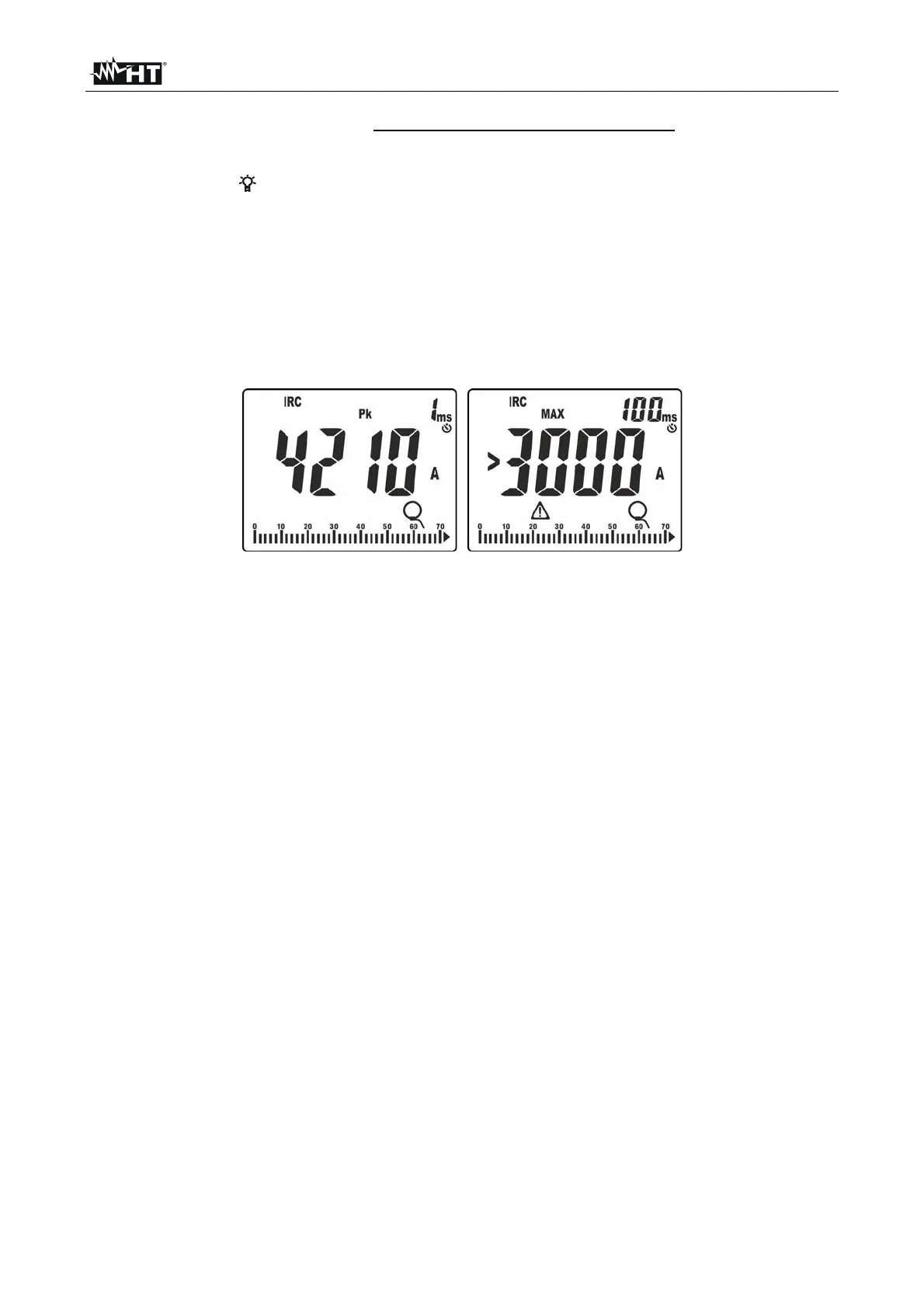

Fig. 44: Examples of display of inrush current
11. If the measured current is higher than the set FS of the clamp, a message like the one
in Fig. 44 – right side (relevant to FS = 3000A) is shown on the display.
12. Press key GO/HOLD again to start a new measurement or turn the rotary switch to quit
the function.
