HTC 500
Usage
1.0 19
As the machine is equipped with the patented EZchange tool
system, fitting and replacing grinding tools is quick and easy. The
tool system consists of wings on which diamond grinding tools are
fitted without the need for screws.
4.5.1. Fitting grinding tools
1. Slide the grinding tool diagonally, from above, down into
the appropriate guide slot on the tool holder, see Figure
4-3 on page 19. Then push the tool fully into the guide
slot.

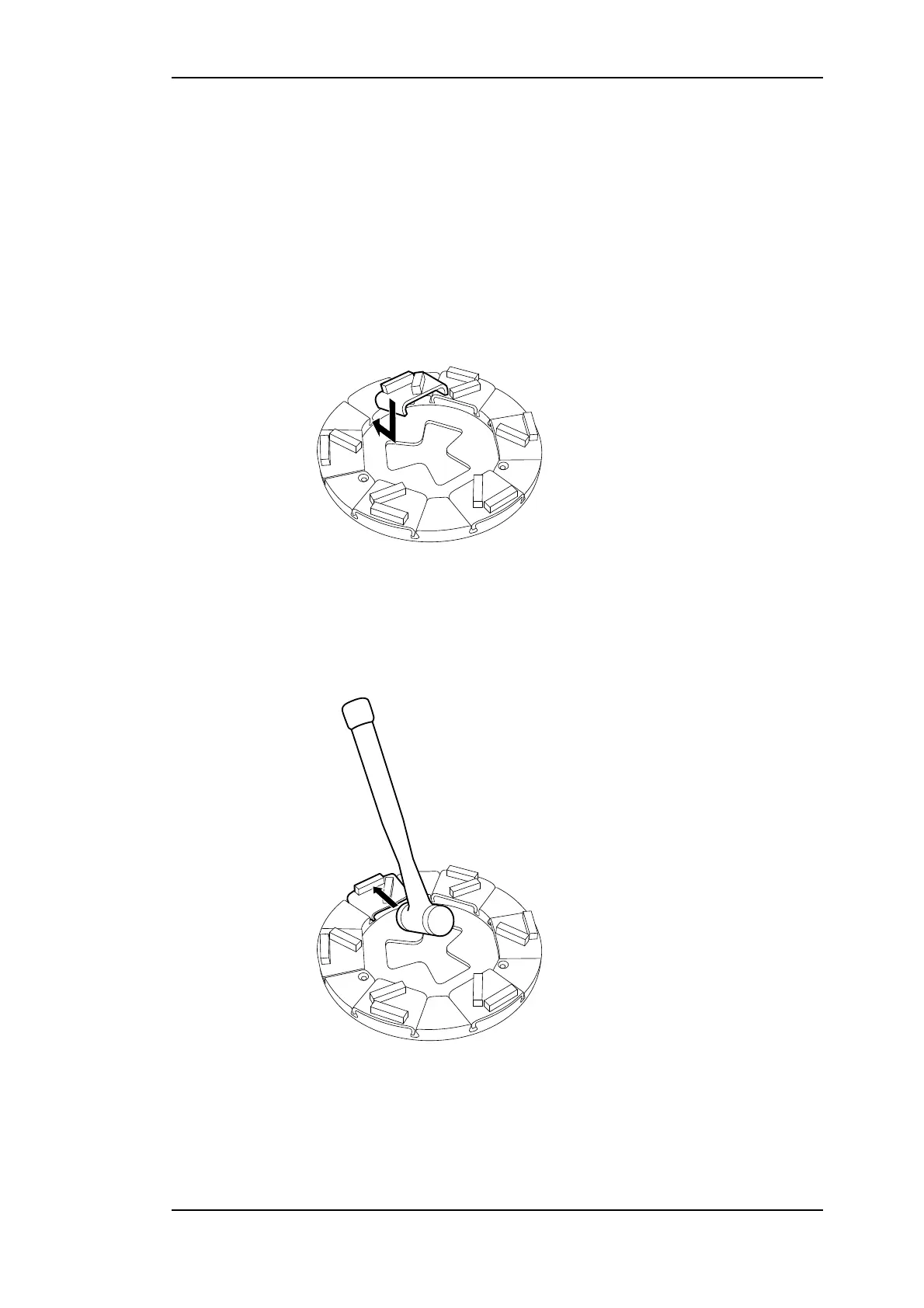

Figure 4-3 Fitting grinding tools
2. Lock the grinding tool into the tool holder by giving
it a few light taps with a rubber hammer - see Figure
4-4 on page 19.
Figure 4-4 Locking grinding tools
