HTC 650 HDX - Changing Grinding Tools

Usage
HTC 650 HDX
22 1.0

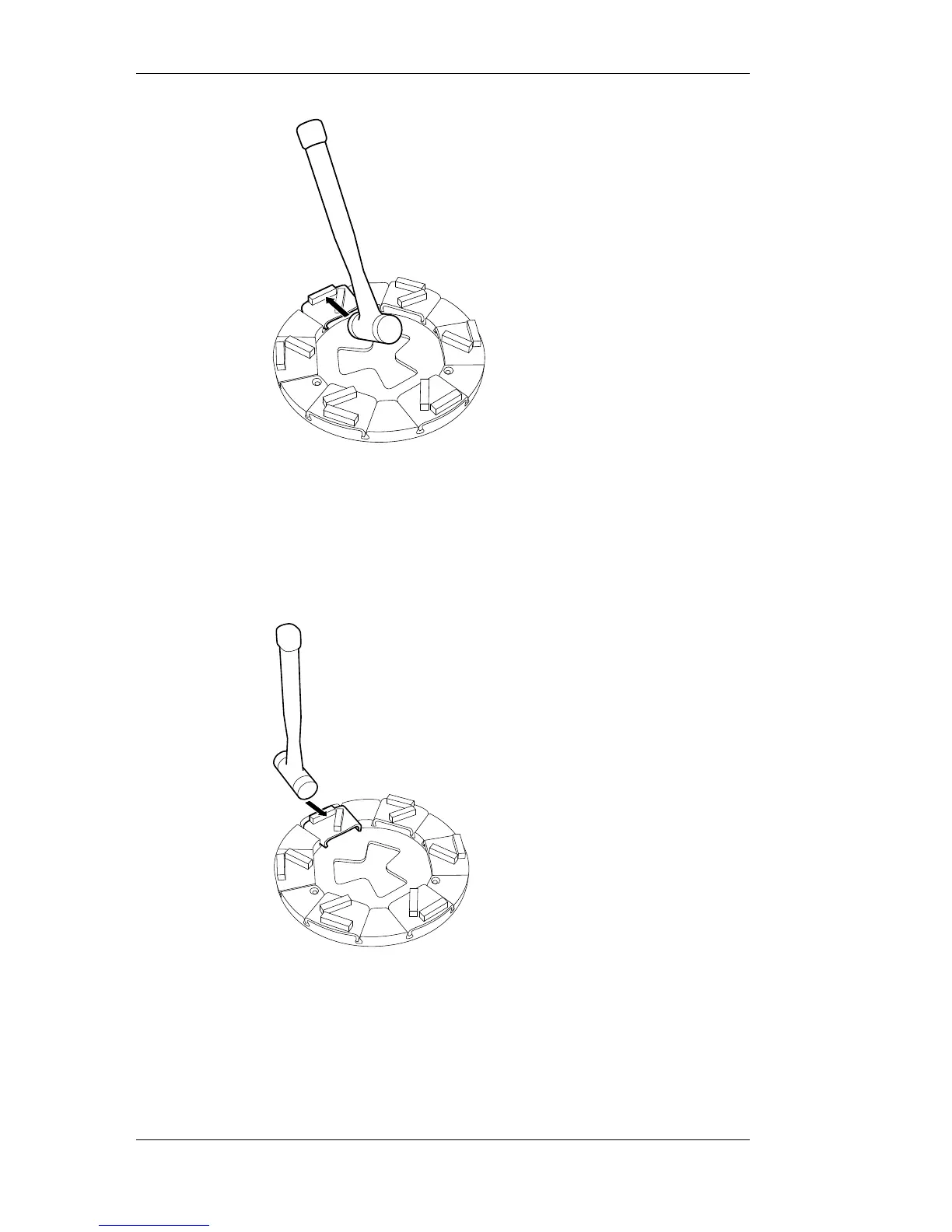

Figure 4-10 Locking grinding tools
4.5.2. Changing grinding tools
1. Remove the grinding tool by giving it a few light taps
with a rubber hammer so the locking mechanism releases,
see Figure 4-11 on page 22. Then draw the tool up out
of the guide slot.
Figure 4-11 Removing grinding tools
2. Slide the grinding tool diagonally, from above, down into
the appropriate guide slot on the tool holder, see Figure
4-9 on page 21. Then push the tool fully into the guide
slot.
