Machine description HTC GL 40 D
8 2.0
3 Machine description
3.1 General machine description
HTC GL 40 D is constructed from a number of main components, such as chassis,
electrical cabinet, etc, seeFigure3-1, page8andFigure3-2, page9. Several
different designs are available, adapted for different markets. For model variants, see the
table in Technical data, page33. The dust that is vacuumed up is captured in a
Longopac bag, which can be sealed when the desired quantity of dust has been reached.

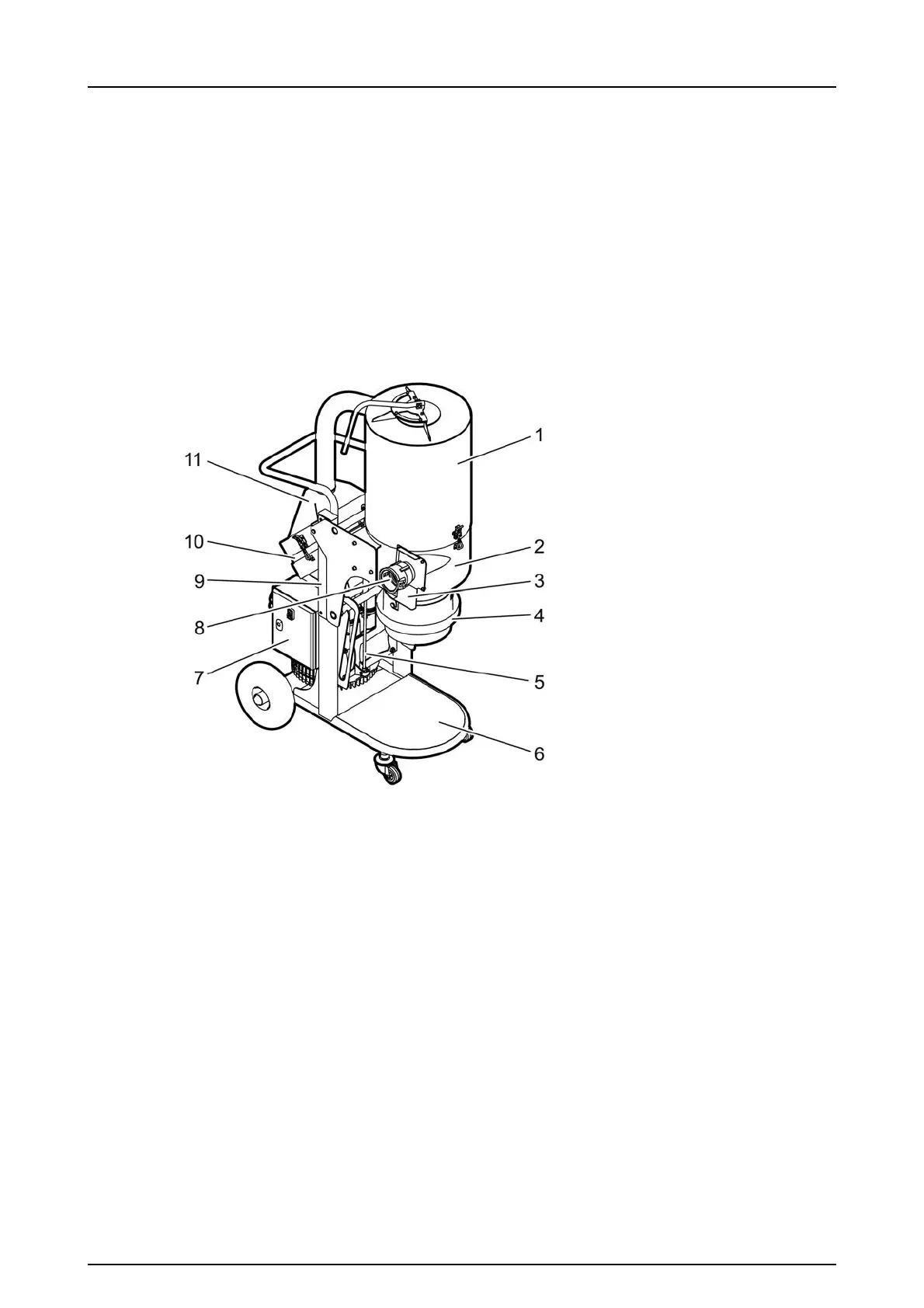

Figure 3-1. The front of the dust extractor
1. Upper cylinder section
2. Lower cylinder section
3. Slide gate
4. Longopac holder
5. Gas shock-absorber
6. Collection plate for dust bags
7. Control cabinet
8. Inlet, suction hose connection
9. Chassis
10. Absolute filter
11. Absolute filter holder
