HTP UFT-80W User Manual

78
LP-542 REV. 6.2.16

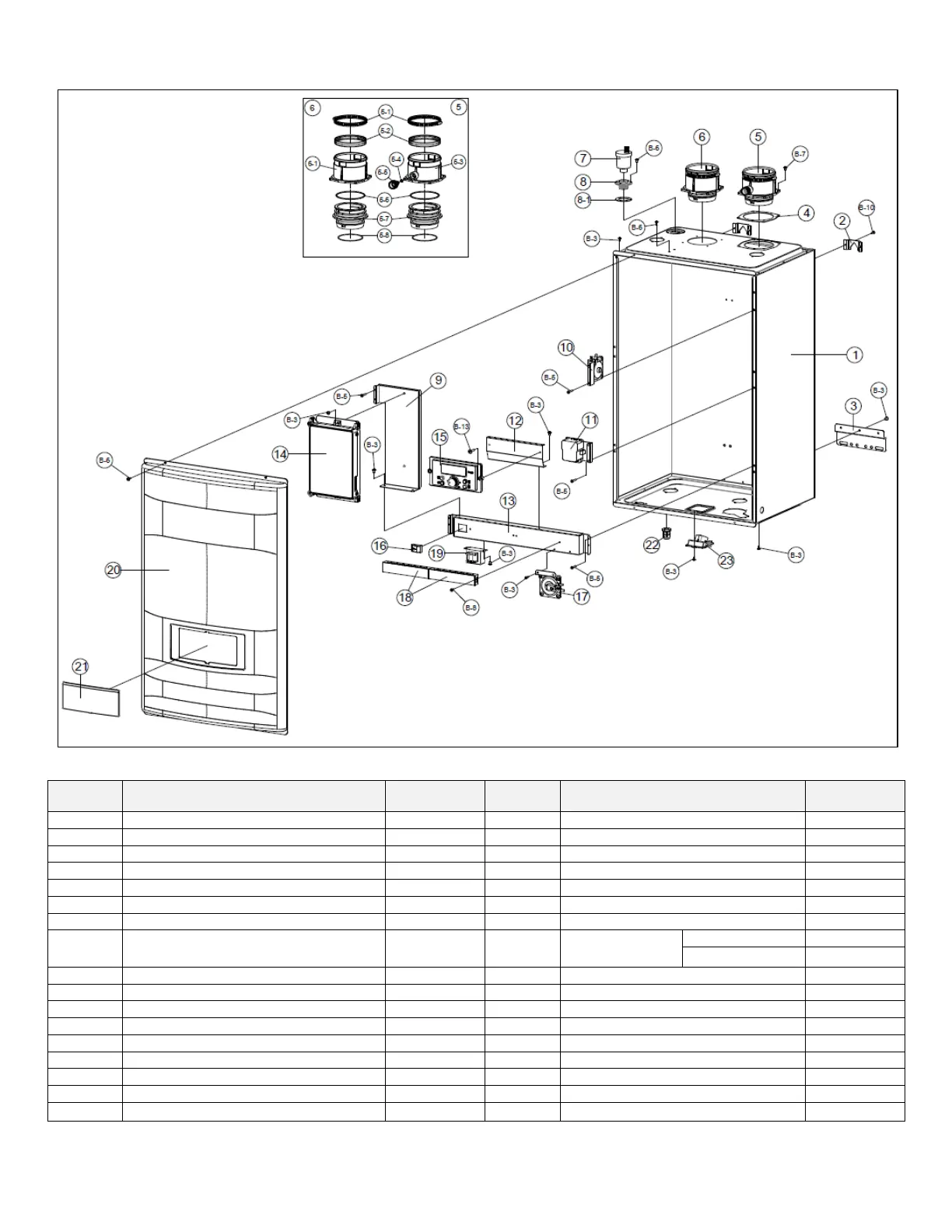

Figure 62 – Cabinet Replacement Parts – 175 – 199W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
1
Cabinet Assembly
7855P-410
8
Air Vent Adapter
7855P-453
2
Top Wall Mount Bracket
7850P-068
8-1
Air Vent Grommet
7855P-339
3
Bottom Wall Mount Bracket
7850P-092
9
Control Board Bracket
7855P-412
4
Exhaust Adapter Sealing Gasket
7850P-041
10
Air Pressure Switch
7855P-262
5
Exhaust Duct (Assembly)
7855P-002
11
Ignition Transformer
7855P-007
5-1
Exhaust / Intake Duct Clamps
7855P-332
12
Display Panel Bracket
7855P-413
5-2
Exhaust / Intake Gaskets
7850P-210
13
Terminal Blocks Bracket
7855P-434
5-3
Exhaust Duct
7855P-333
14
Control Board
175W
7855P-404
199W
7855P-405
5-4
Combustion Analyzer Port Plug O-Ring
7855P-334
15
Display Panel
7855P-344
5-5
Combustion Analyzer Port Plug
7855P-335
16
Manual Power Switch
7855P-014
5-6
Intake and Exhaust Adapter O-Ring
7855P-256
17
Condensate Block APS
7855P-017
5-7
Exhaust Duct Inner Adapter
7855P-004
18
Terminal Block
7855P-345
5-8
Exhaust Adapter O-Ring
7855P-254
19
Transformer
7855P-346
6
Air Intake Assembly
7855P-411
20
Cabinet Front Cover
7855P-414
6-1
Air Intake Cap
7855P-337
21
Display Panel Cover
7850P-023
6-2
Air Intake Inner Adapter
7855P-004
22
Wire Gland
7855P-348
7
Air Vent
7855P-063
23
CH Pressure Gauge
7855P-222
Table 36 – Cabinet Replacement Parts – 175 – 199W Models
