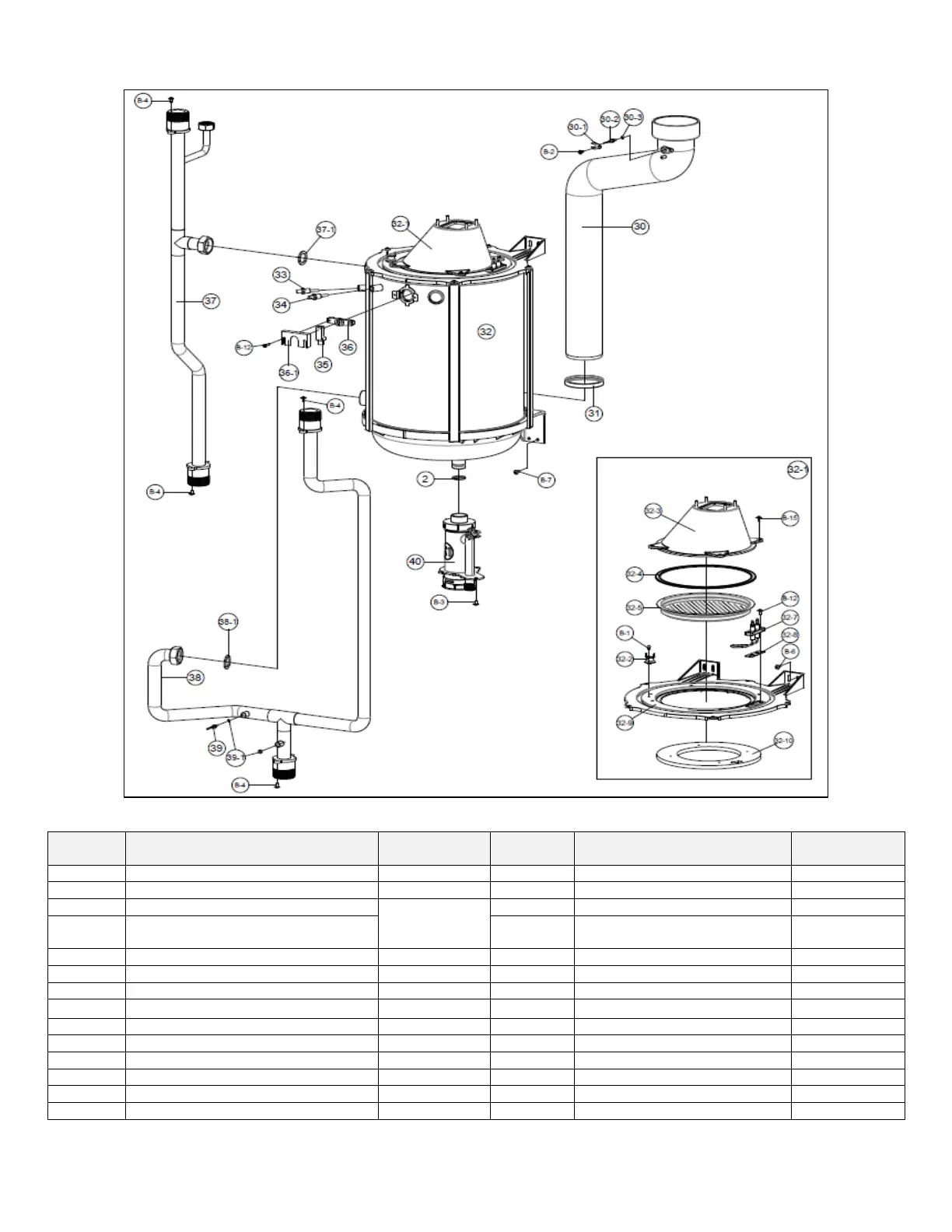

Figure 64 – Heat Exchanger Replacement Parts – 175W – 199W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
30
Exhaust Pipe Assembly
7855P-415
32-9
Heat Exchanger Top
7855P-619
30-1
Exhaust Temperature Sensor Clip
7855P-349
32-10
Burner Refractory
7855P-612
30-2
Exhaust Temperature Sensor
7855P-092
33
CH Supply Temperature Sensor
7855P-030
30-3
Exhaust Temperature Sensor O-Ring
34
Water Level Detection Sensor
(Low Water Cut-Off)
7855P-029
31
Exhaust Pipe Gasket
7855P-418
35
Flame Sensor
7855P-031
32
Heat Exchanger Assembly
7855P-416
36
Flame Sensor Bracket
7855P-356
32-1
Burner Body Assembly
7855P-417
36-1
Flame Sensor Cover
7855P-357
32-2
Burner Overheat Sensor
7855P-066
37
CH Supply Pipe
7855P-421
32-3
Burner Body
7855P-606
37-1
CH Supply Pipe Gasket
7855P-074
32-4
Burner Gasket
7855P-419
38
CH Return Pipe
7855P-422
32-5
Ceramic Fiber Burner
7855P-420
38-1
CH Return Pipe Gasket
7855P-074
32-6
Burner Plate O-Ring
7855P-249
39
CH Return Sensor
7855P-097
32-7
Ignition Rod
7855P-607
39-1
CH Return Sensor Gasket
7855P-364
32-8
Igniter Gasket
7855P-252
40
Condensate Trap Assembly
7855P-605
Table 38 – Heat Exchanger Replacement Parts – 175W – 199W Models
