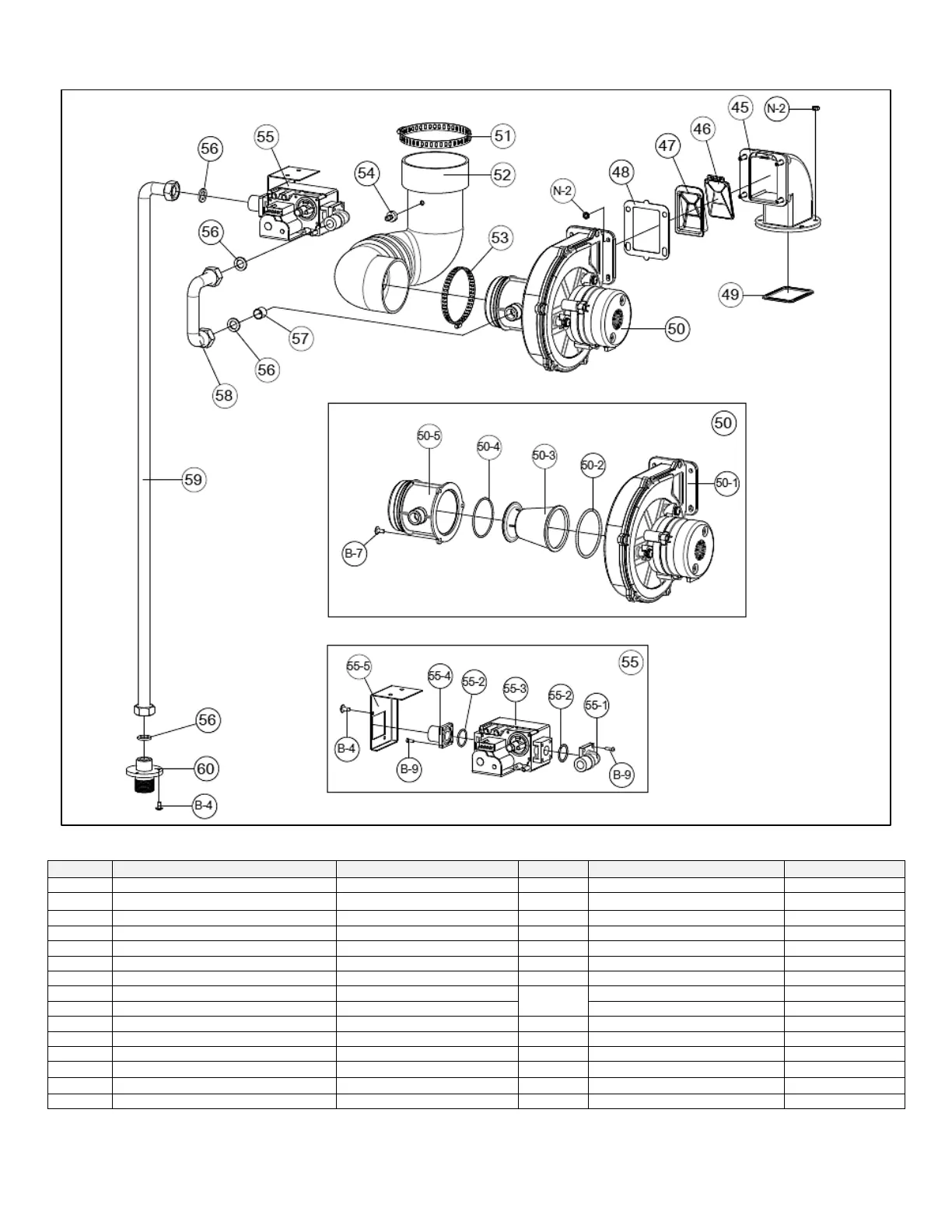

Figure 66 – Combustion System Replacement Parts – 175W – 199W Models
#
DESCRIPTION
PART NUMBER
#
DESCRIPTION
PART NUMBER
45
Burner Inlet Channel (with Damper)
7855P-424
55
Gas Valve Assembly
7855P-431
46
Air Damper
7855P-618
55-1
Gas Valve Outlet Adapter
7855P-232
47
Air Damper Guide
7855P-369
55-2
Gas Valve O-Ring
7855P-076
48
Fan Outlet Gasket
7855P-425
55-3
Gas Valve
7855P-034
49
Burner Inlet Channel Gasket
7855P-426
55-4
Gas Valve Inlet Adapter
7850P-077
50
Fan and Mixer Assembly
7855P-427
55-5
Gas Valve Bracket
7855P-436
50-1
Fan
7855P-025
56
½” Gas Pipe Gasket
7855P-221
50-2
Fan O-Ring
7855P-371
57
Gas Orifice (NG) 8.3 mm
7855P-610
50-3
Air-Gas Mixer (Inner Part)
7855P-609
Gas Orifice (LP) 6.3 mm
7855P-435
50-4
Air-Gas Mixer Gasket
7855P-428
58
Gas Pipe (to Mixer)
7855P-432
50-5
Air-Gas Mixer (Outer Part)
7855P-608
59
Gas Pipe (to Gas Valve)
7855P-433
51
Air Intake Hose Top Clamp
7855P-429
60
Gas Inlet Adapter (3/4”)
7855P-382
52
Air Intake Hose
7855P-430
53
Air Intake Hose (Bottom Clamp)
7855P-429
54
APS Hose Fitting
7855P-375
Table 40 – Combustion System Replacement Parts – 175W – 199W Models
