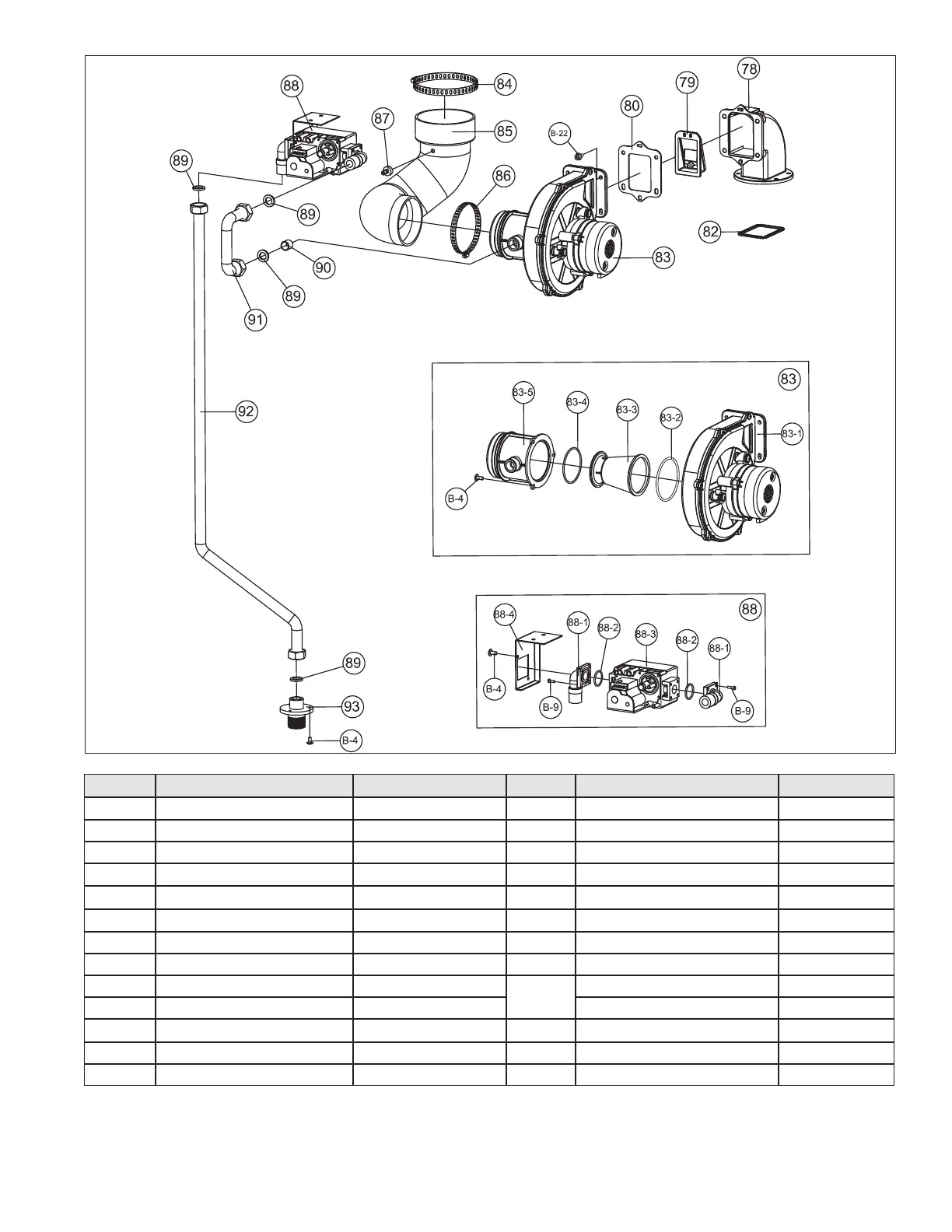

Figure 68 - Combustion System Replacement Parts - 199 Floor and Wall Mount Models
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
78 Burner Inlet Channel 7855P-479 86 Air Intake Hose (Bottom Clamp) 7855P-429
79 Plastic Flapper 7865P-033 87 APS Hose Fitting 7855P-375
80 Fan Outlet Gasket 7855P-425 88 Gas Valve Assembly 7855P-431
81 N/A N/A 88-1 Gas Valve Outlet Adapter 7855P-232
82 Burner Inlet Channel Gasket 7855P-426 88-2 Gas Valve O-Ring 7855P-076
83 Fan and Mixer Assembly 7855P-427 88-3 Gas Valve 7855P-034
83-1 Fan 7855P-025 88-4 Gas Valve Bracket 7855P-436
83-2 Fan O-Ring 7855P-371 89 1/2” Gas Pipe Gasket 7855P-221
83-3 Air Gas Mixer (Inner Part) 7855P-609
90
Gas Orice (NG) 8.3 mm 7855P-610
83-4 Air Gas Mixer Gasket 7855P-428 Gas Orice (LP) 6.35 mm 7855P-435
83-5 Air Gas Mixer (Outer Part) 7855P-608 91 Gas Pipe (to Mixer) 7855P-432
84 Air Intake Hose Top Clamp 7855P-429 92 Gas Pipe (to Gas Valve) 7855P-295
85 Air Intake Hose 7855P-430 93 Gas Inlet Adapter (3/4”) 7855P-382
Table 45 - Combustion System Replacement Parts - 199 Floor and Wall Mount Models
