CHAPfER
VI Installation Instruction
For
Diesel Engine Generating Set
r
4
, .
'~'--J;-=,
=.
=-_-_-_-
...
~
_
_:.=_;

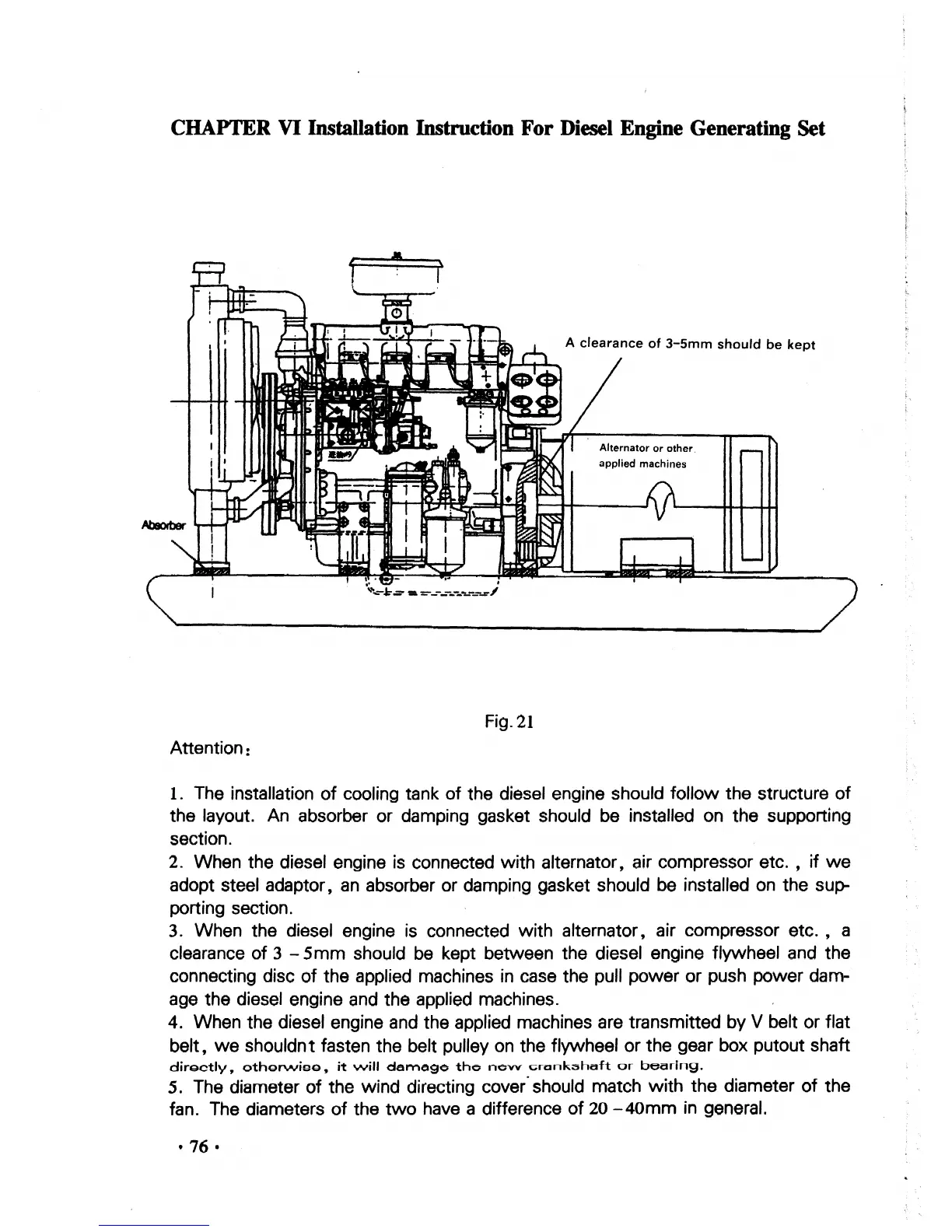

Fig.
21
Attention:
1.
The installation
of
cooling tank
of
the diesel engine should
follow
the structure
of
the
layout. An absorber
or
damping gasket should be installed on
the
supporting
section.
2. When
the
diesel engine is connected
with
alternator, air compressor etc. ,
if
we
adopt steel adaptor,
an
absorber
or
damping gasket should be installed on
the
sUJr
porting section.
3.
When
the diesel engine is connected
with
alternator, air compressor
etc.,
a
clearance
of
3 - Smm should be kept between the diesel engine flywheel and
the
connecting disc
of
the
applied machines in case
the
pull
power
or
push
power
dam-
age
the
diesel engine and
the
applied machines.
4. When the diesel engine
and
the applied machines are transmitted
by
V belt
or
flat
belt,
we
shouldnt fasten
the
belt pulley on the flywheel or
the
gear box putout shaft
dirQctly
7
othorvviso,
it
vvill
dan-.ogo
the
nevv
\JrClnk~hClft
or
bccaring.
5. The diameter
of
the
wind
directing cover' should match
with
the
diameter
of
the
fan. The diameters
of
the
two
have a difference
of
20
-40mm
in
general.
