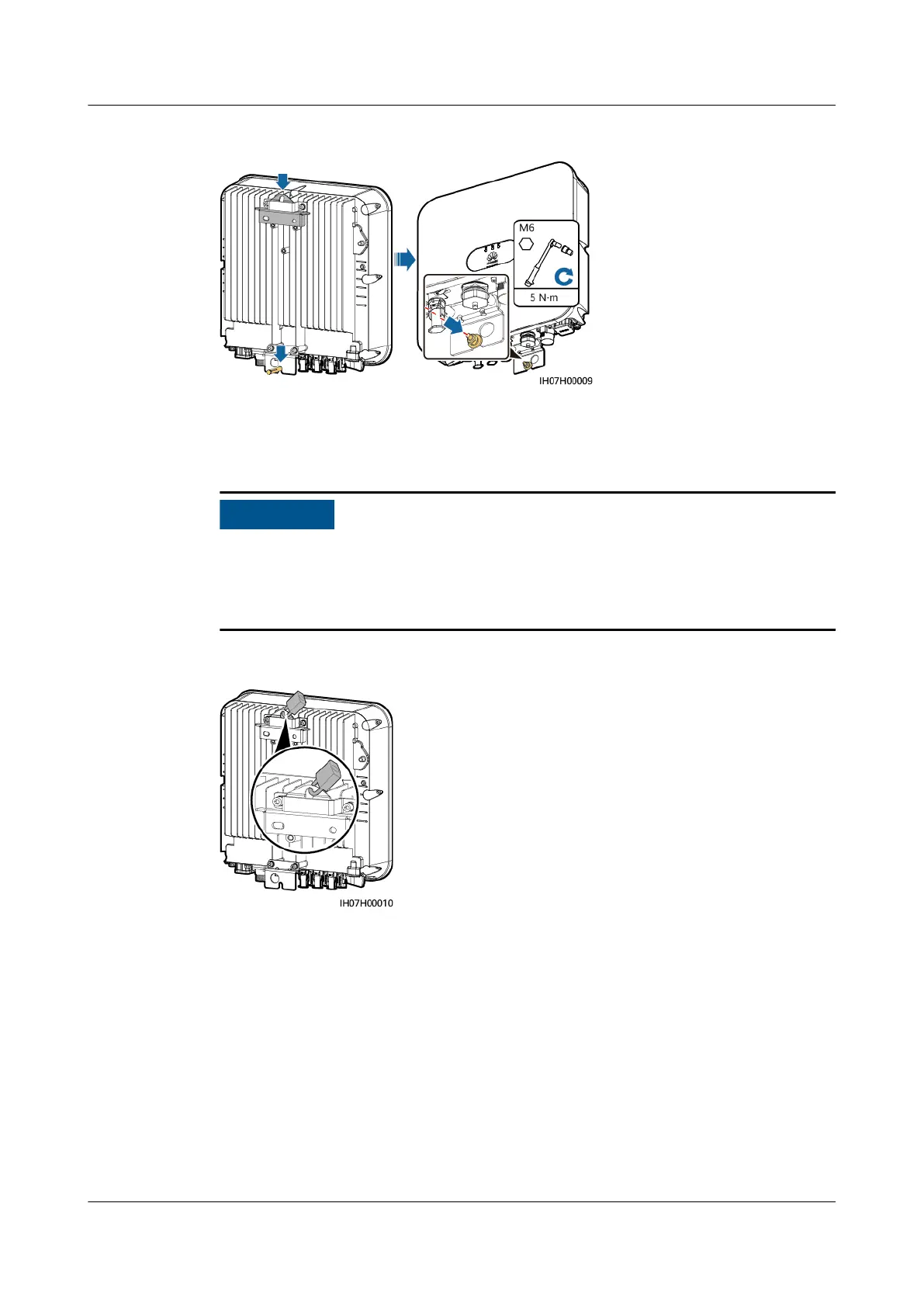

Figure 4-11 Tightening nuts
Step 6 (Optional) Install an anti-theft lock.
● Prepare an anti-theft lock suitable for the lock hole diameter (Ф10 mm).
● An outdoor waterproof lock is recommended.
● Keep the key to the anti-theft lock.
Figure 4-12 Installing an anti-theft lock
----End
4.5.2 Support-Mounted Installation
Procedure
Step 1 Determine the positions for drilling holes using the marking-o template, and
then mark the positions with a marker.
SUN2000-(2KTL-6KTL)-L1
User Manual 4 System Installation
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 33
