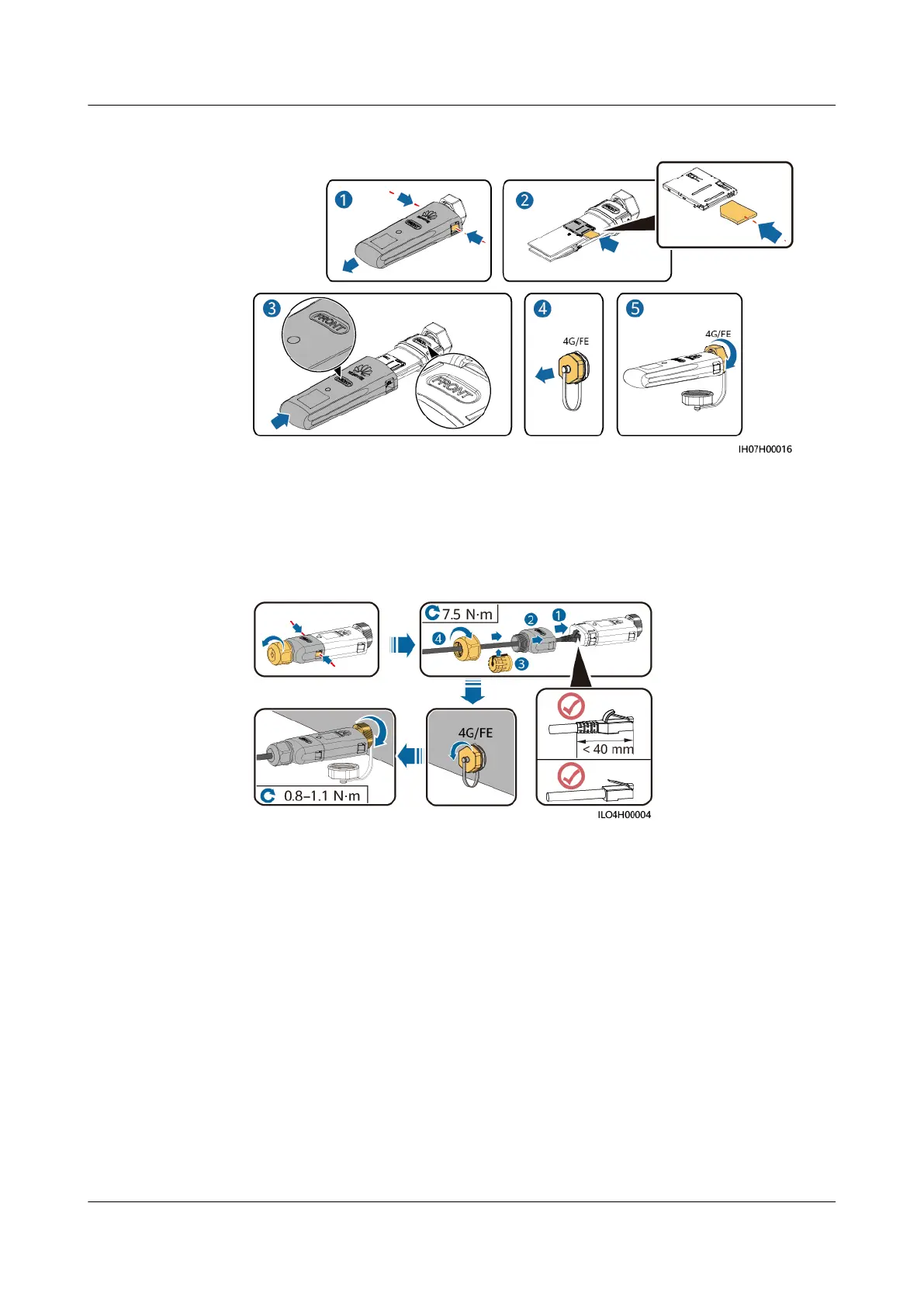

Figure 5-4 Installing a 4G Smart Dongle
● WLAN-FE Smart Dongle (FE Communication)
You are advised to use a CAT 5E outdoor shielded network cable (outer
diameter < 9 mm; internal resistance ≤ 1.5 ohms/10 m) and shielded RJ45
connectors.
Figure 5-5 Installing a WLAN-FE Smart Dongle (FE communication)
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 46
