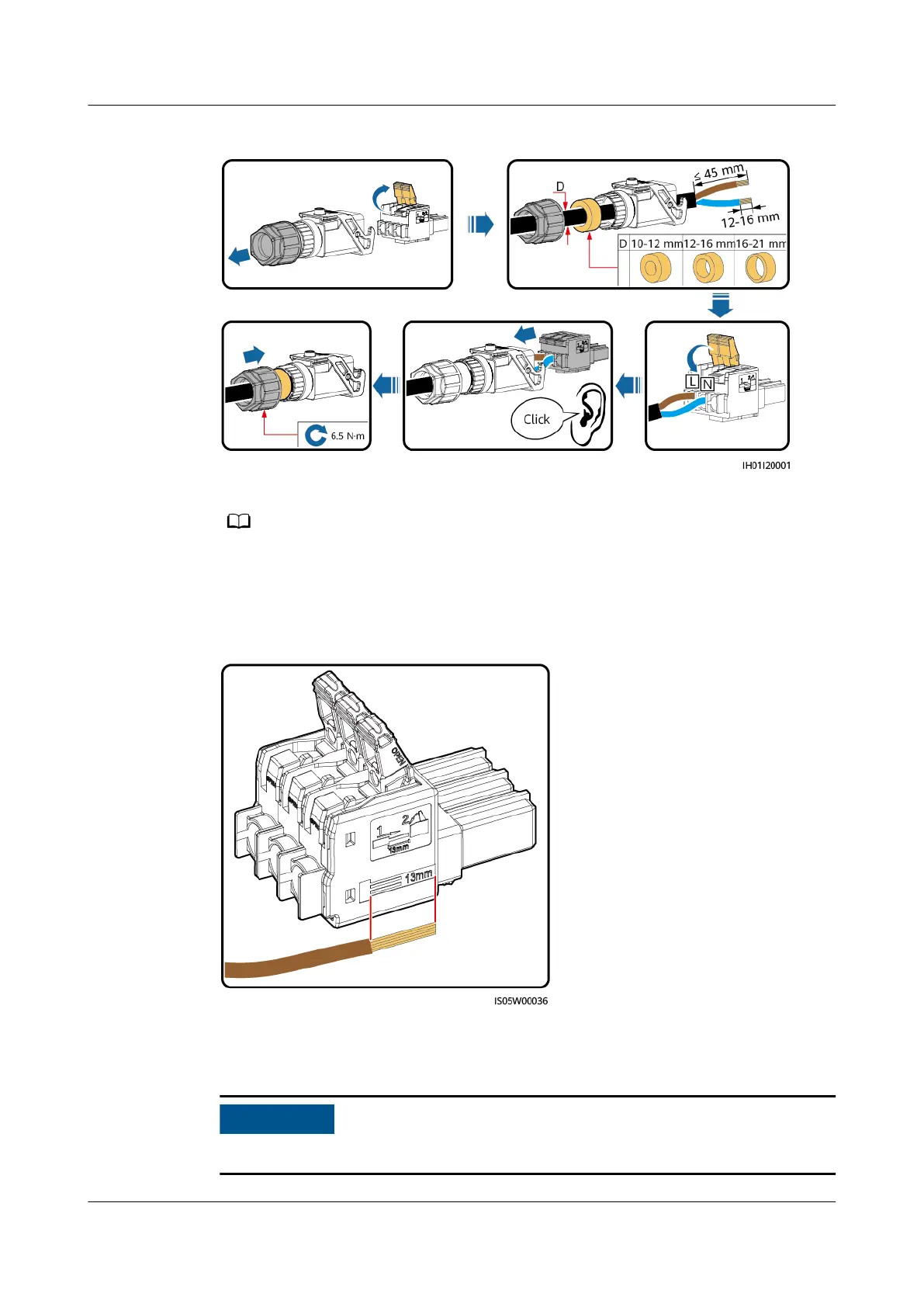

Figure 5-8 Assembling an AC connector (two-core wire)
● The cable colors shown in the gures are for reference only. Select an appropriate cable
according to the local standards.
● For the core installation method and the length for cable stripping, see the instructions
on the side of the plug insert.
Figure 5-9 Length for cable stripping
Step 2 Connect the AC connector to the AC output port.
Ensure that the AC connector is connected securely.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 50
