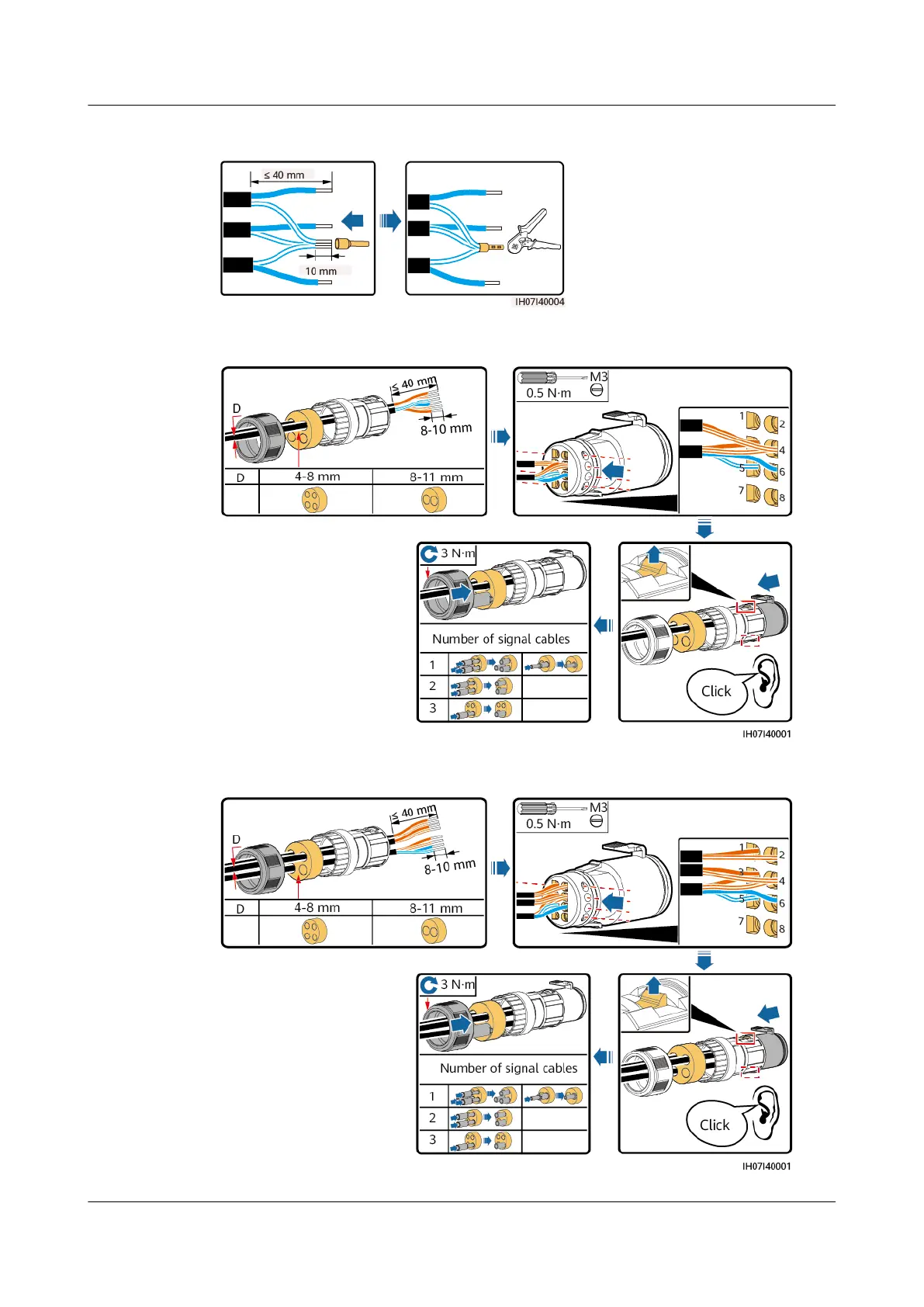

Figure 5-24 Crimping three signal cables
Figure 5-25 Assembling a signal connector (single SUN2000)
Figure 5-26 Assembling a signal connector (SUN2000 cascading)
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 63
