Ports

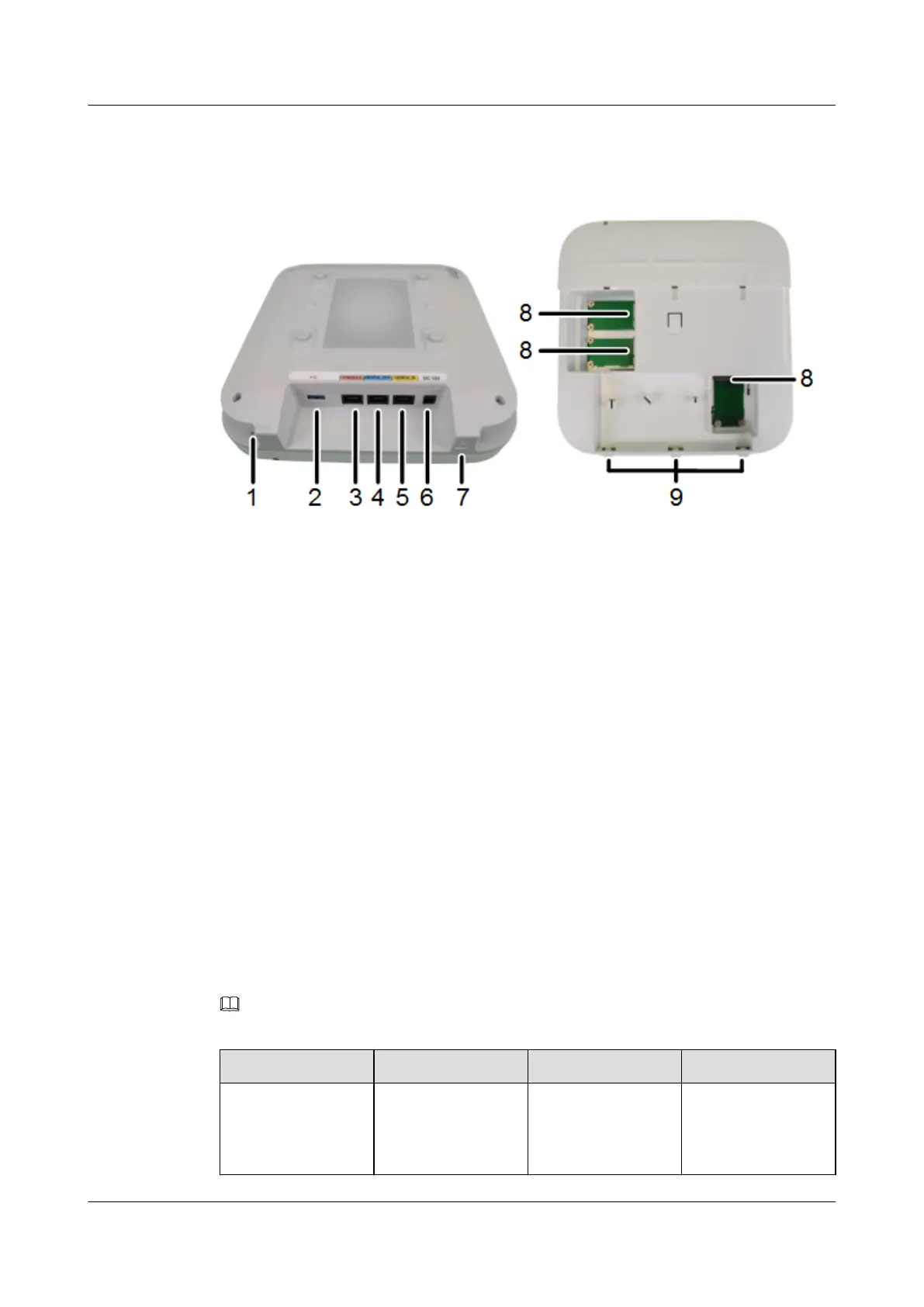

Figure 2-2 AP4050DN-E ports
As shown in Figure 2-2, each port can be described as follows:
1. Default button: restores factory settings and restarts the device if you hold down the
button more than 3 seconds.
2. USB port: connects to a USB flash drive to extend the storage space of the AP, and
provides a maximum of 2.5 W power.
3. Console port: connects to the maintenance terminal for AP configuration and
management.
4. GE1/PoE_OUT: 10/100/1000M port used to connect to the wired Ethernet and support
PoE output.
5. GE0/PoE_IN: 10/100/1000M port used to connect to the wired Ethernet and support PoE
input.
6. DC 12V: connects a 12 V power adapter to the AP.
7. Lock port: protects the AP against theft.
8. IoT slot: allows IoT cards to be inserted to provide extended functions such as RFID
location.
9. Radio port: connects to an IoT card and an antenna.
LED Indicators
NOTE
Indicator colors may vary slightly at different temperature.
Type
Color Status Description
Default status after
power-on
Green Steady on The AP is just
powered on and the
software is not
started yet.
AP4050DN-E
Product Description
2 Hardware Structure
Issue 01 (2016-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
