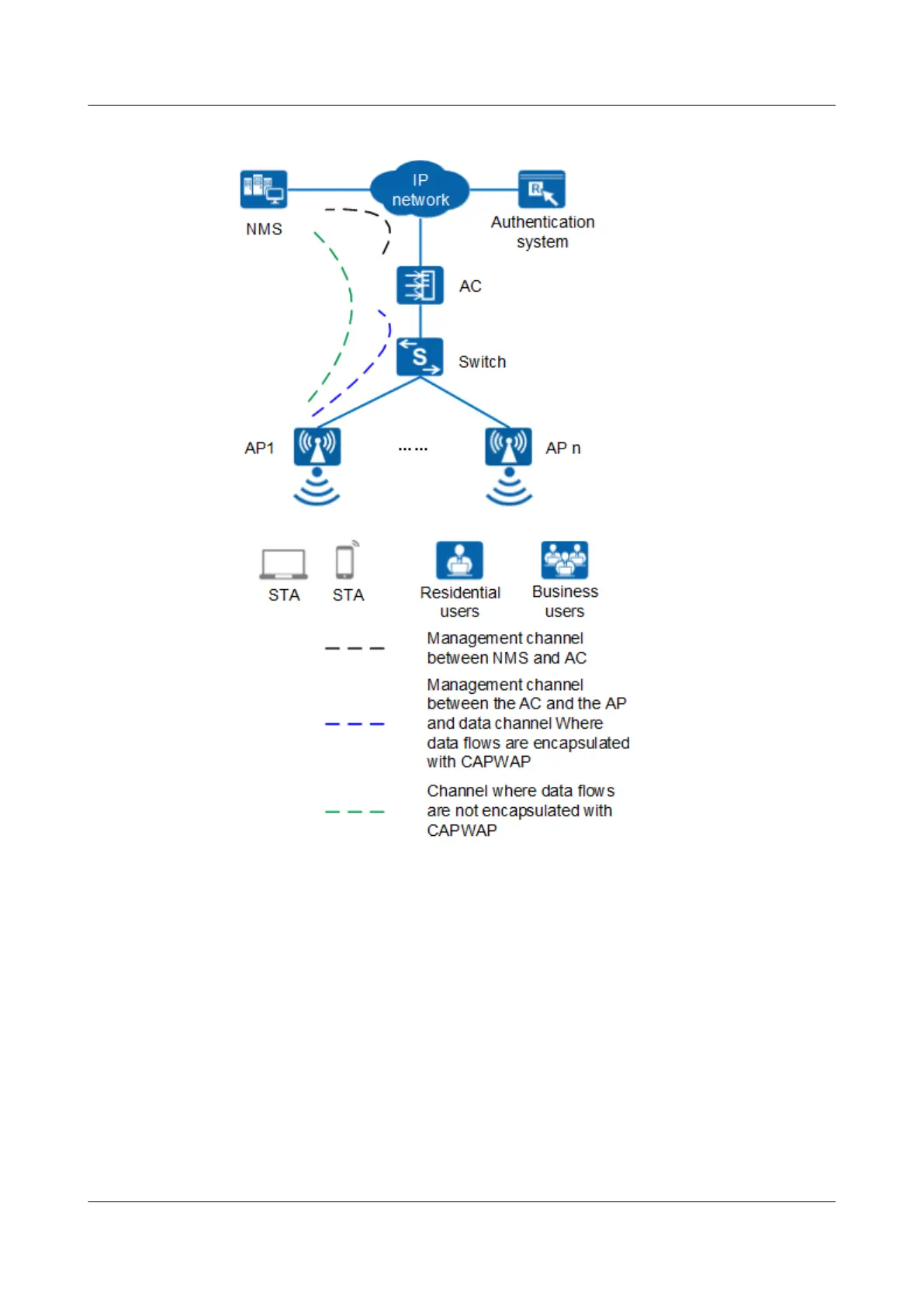

Figure 1-1 Fit AP networking (AP mode)
In this networking, the AP functions as a Fit AP. The AC is responsible for user access, AP
go-online, AP management, authentication, routing, security, and QoS. Huawei products that
provide the AC function include the AC6605, AC6005, ACU2 (with S7700, S9700, or
S12700), S5720HI, S7700 (with X series board), S9700 (with X series board), and S12700
(with X series board).
AP4050DN-E
Product Description
1 Product Positioning and Characteristics
Issue 01 (2016-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
