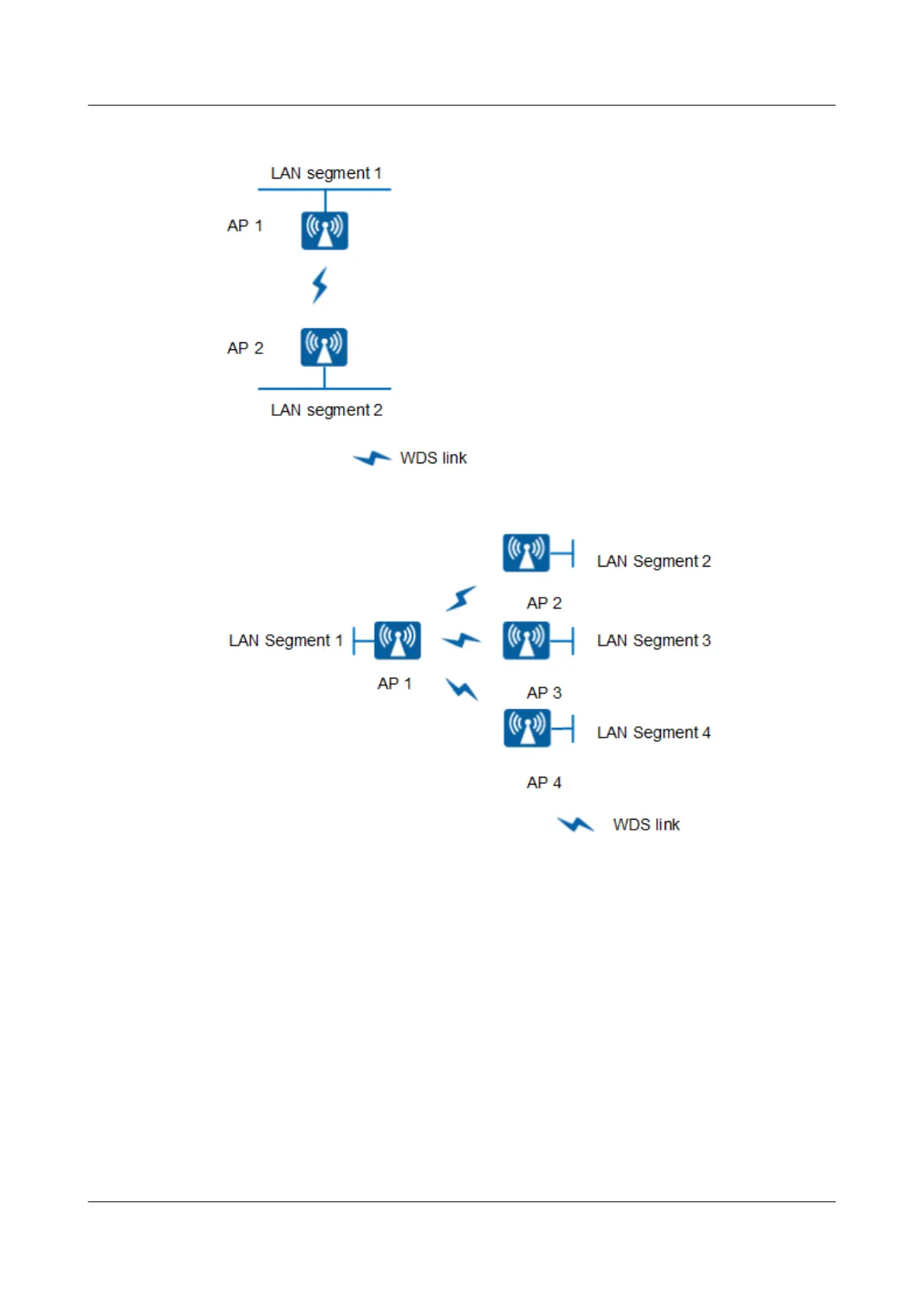

Figure 1-2 Fit AP networking (WDS mode: point-to-point)
Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)
In this networking, the AP connects two or more independently wired or wireless LANs
through wireless links to construct a network on which users can exchange data. In Wireless
Distribution System (WDS) mode, the AP supports point-to-point (P2P) and point-to-
multipoint (P2MP) networking modes. Supporting 5 GHz and 2.4 GHz frequency bands, the
AP can implement wireless bridging and access functions.
