Huawei AP7050DE - Installing the Device on a T-Rail

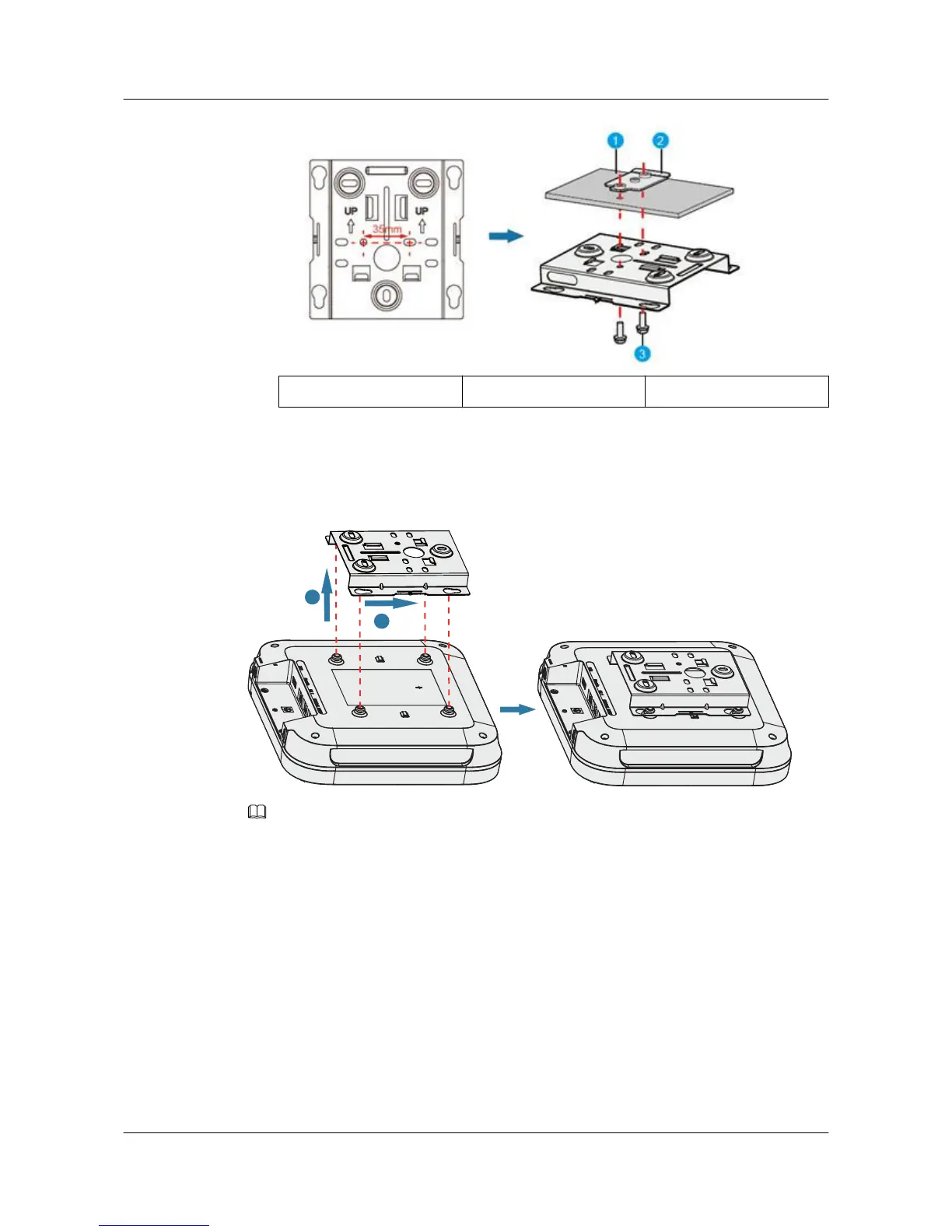

1. Ceiling tile 2. Adjustable buckle 3. M4x30 screw
2. Connect the cables. For details, see 2.6 Cable Connection.
3. Hang the AP on the mounting holes by aligning the mounting screws at the rear of the
AP with the mounting holes on the bracket and push the AP horizontally to secure the
AP.
a
b
NOTE
Ensure that the AP is correctly installed on the mounting bracket and there must be 200 mm space above
and around the AP for maintenance.
2.5.3 Installing the Device on a T-rail
1. Remove two ceiling tiles around the T-rail, use screws to fix the adjustable buckle to the
mounting bracket, hook the adjustable buckle to the T-rail, and secure the screw on the
adjustable buckle to fasten the mounting bracket and T-rail.
