Huawei AP7050DE - 1 Product Overview; Device Structure

1.1 Device Structure
Figure 1-1 shows the appearance of the AP7050DE.

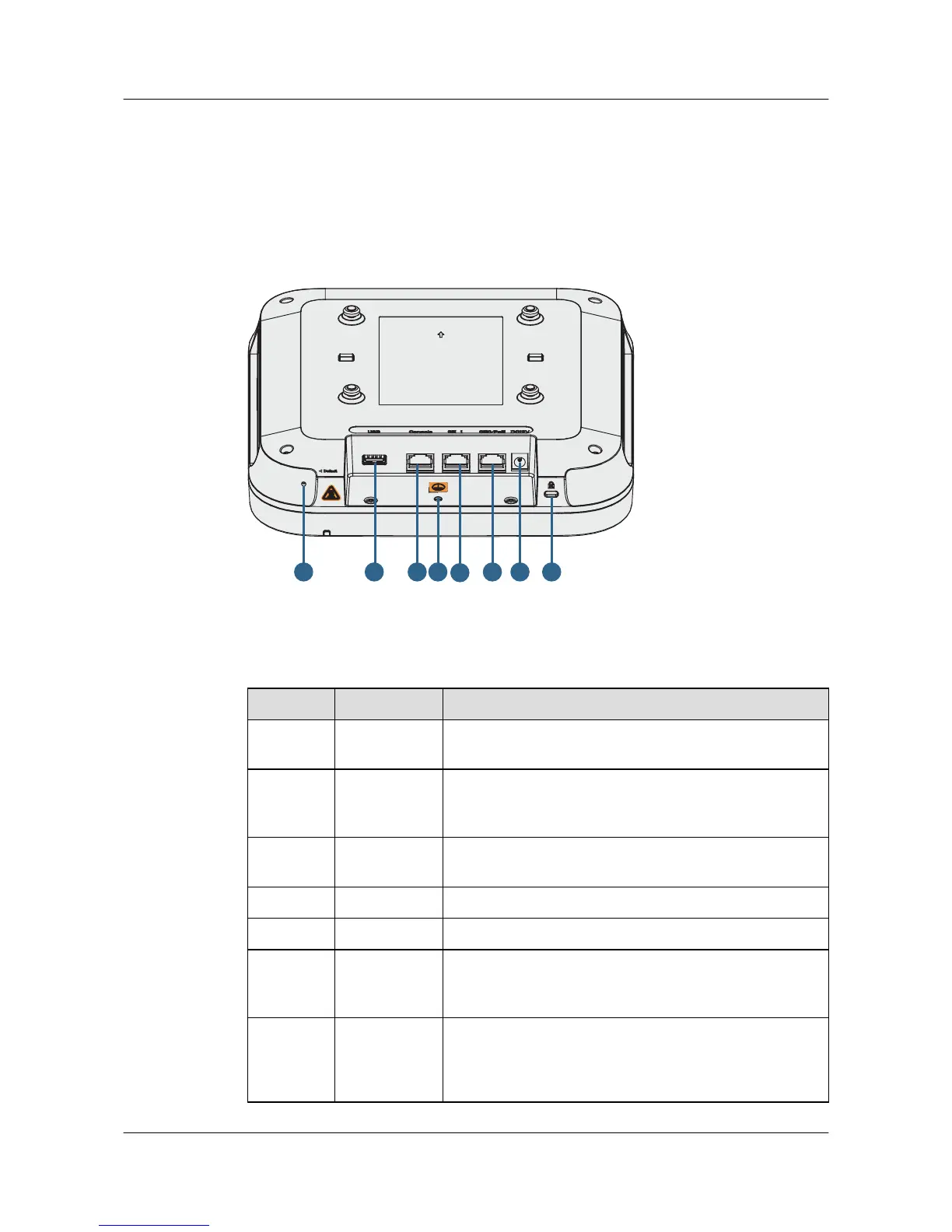

Figure 1-1 Appearance of the AP7050DE
71 3
5
4
2 6 8
Table 1-1 describes interfaces on the AP7050DE.
Table 1-1 Descriptions of interfaces
No.
Name Description
1 Default Reset button: restores factory settings and restarts the
device if you hold down the button more than 3 seconds.
2 USB port Connects to a USB flash drive or other storage devices to
extend the storage space of the AP. The USB port complies
with the USB 2.0 specification.
3 Console Connects to a maintenance terminal for AP configuration
and management.
4 Ground screw Connects the AP to a ground cable.
5 GE1 10/100/1000M port: connects to the wired Ethernet.
6 GE0/PoE 10/100/1000M port: connects to the wired Ethernet. The
port can connect to a PoE power supply device to provide
power for APs.
7 DC 12V Connects to PoE or DC power supply.
NOTE
When the AP uses the DC power supply, use a power adapter for
power supply; otherwise, the AP may be damaged.
AP7050DE
Hardware Installation and Maintenance Guide
1 Product Overview
Issue 01 (2016-04-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
