2. Connect the cables. For details, see 2.6 Cable Connection.

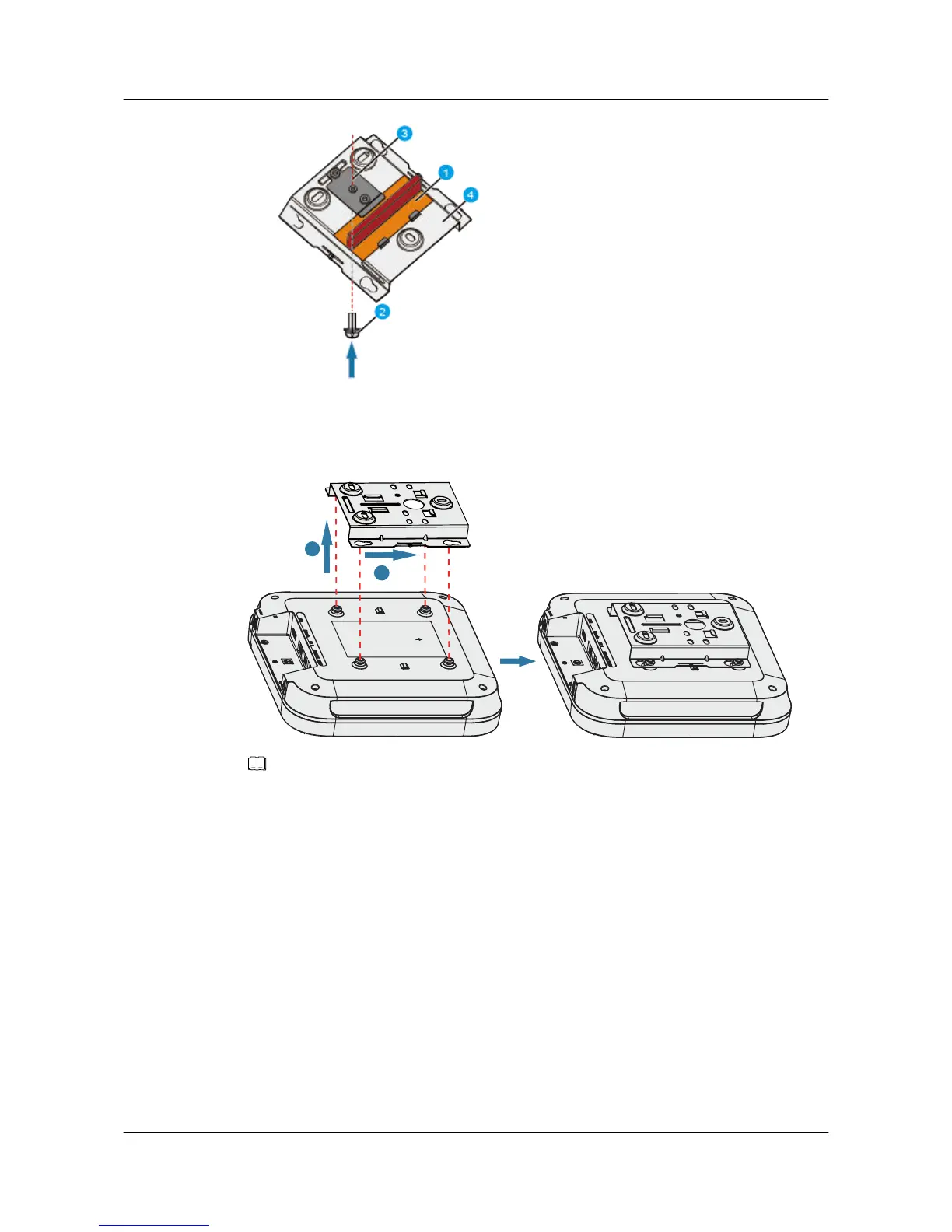

3. Hang the AP on the mounting holes by aligning the mounting screws at the rear of the
AP with the mounting holes on the bracket and push the AP horizontally to secure the
AP.
NOTE
l Before fixing the adjustable buckle with a screw, you need to adjust the buckle to a proper position
based on the T-rail width.
l Ensure that the AP is correctly installed on the mounting bracket and there must be 200 mm space
above and around the AP for maintenance.
2.6 Cable Connection
Figure 2-3 describes the cable connections.
AP7050DE
Hardware Installation and Maintenance Guide
2 AP Installation
Issue 01 (2016-04-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
