AP8030DN
Product Description
2 Hardware Structure
CAUTION
There is a scald warning label attached on the device, warning you not to touch
the device after the device has been operating for a long time.
Interfaces
The following figure shows interfaces on the AP.

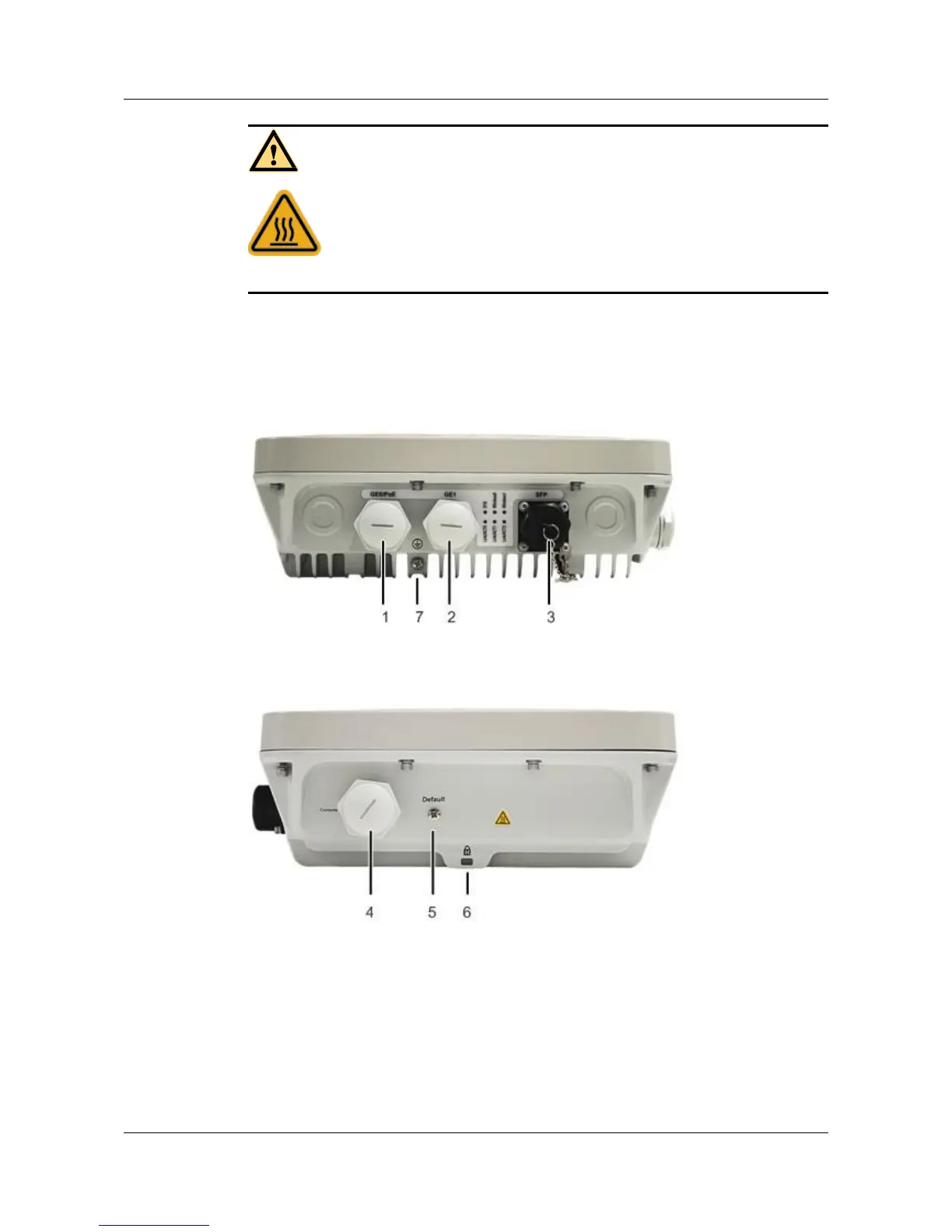

Figure 2-2 Interfaces on the AP
1. GE0/PoE interface: 10/100/1000M port that connects to the wired Ethernet and supports
PoE input.
2. GE1 interface: 10/100/1000M port that connects to the wired Ethernet.
3. SFP: Optical port that supports the 100M/1000M optical module.
4. CONSOLE: Connects to a maintenance terminal for AP configuration and management.
5. Default:Restores factory settings and restarts the device when you hold down the button
more than 3 seconds.
