Huawei ATN 905 - 4 Hardware Structure; 4.1 Indoor ATN 905 Devices

4 Hardware Structure
4.1 Indoor ATN 905 Devices
ATN 905 devices are small-sized and can be installed on a desk or in a standard IEC60297
cabinet (19-inch) indoors.
Indoor ATN 905 devices are 1 U high and do not support board removal or installation. Figure
4-1 shows the appearance of an indoor ATN 905 device and Table 4-1 lists the visible
components of the device.

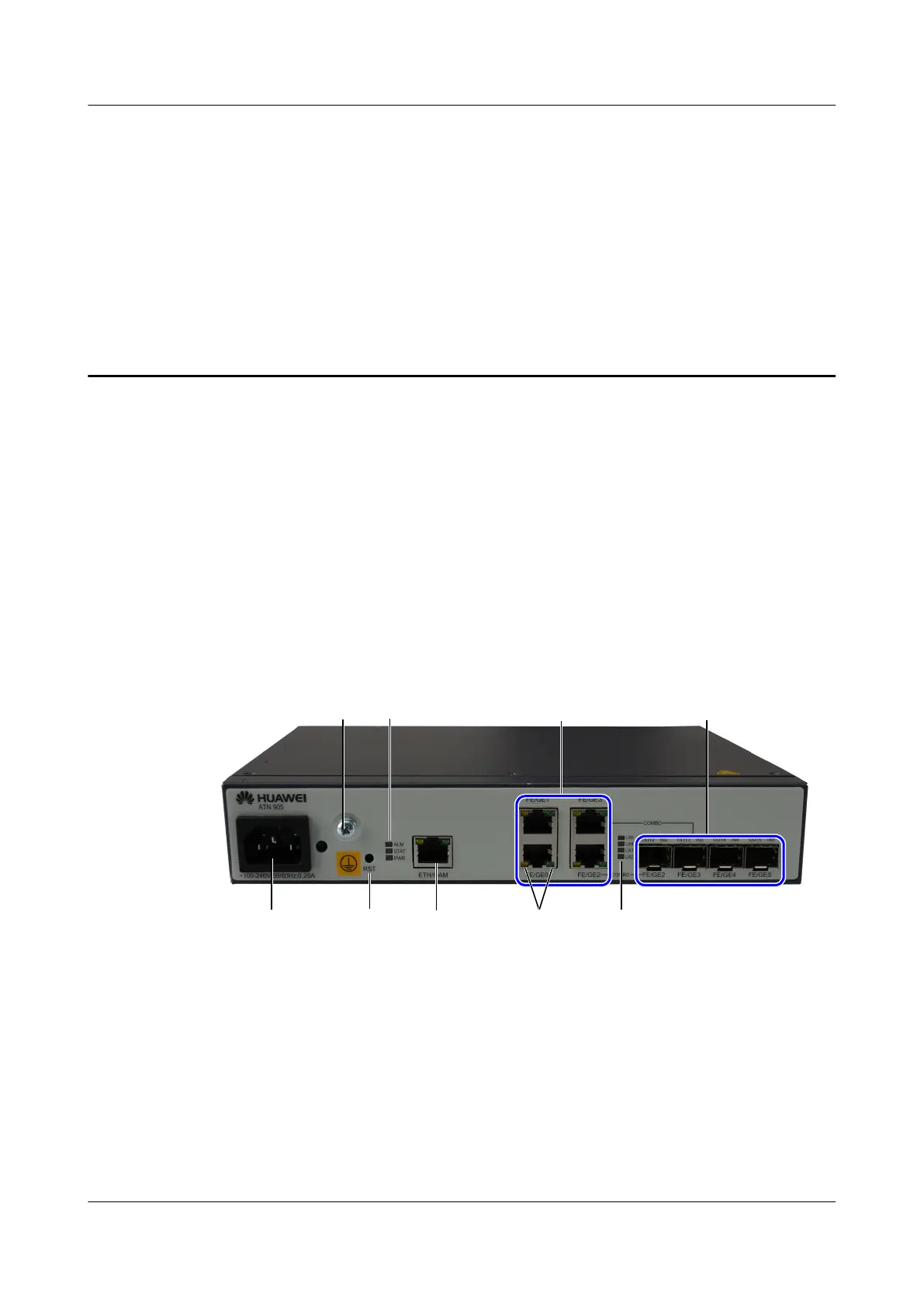

Figure 4-1 Appearance of an indoor ATN 905 device
AC power
input interface
Ground
point
Reset
button
NM network
interface or
NM serial
interface
Device status
indicators
Service electrical interfaces
FE/GE0-FE/GE3
SFP interface
status indicators
Service SFP interfaces
FE/GE2-FE/GE5
Electrical
interface status
indicator
ATN 905 Multi-service Access Equipment
