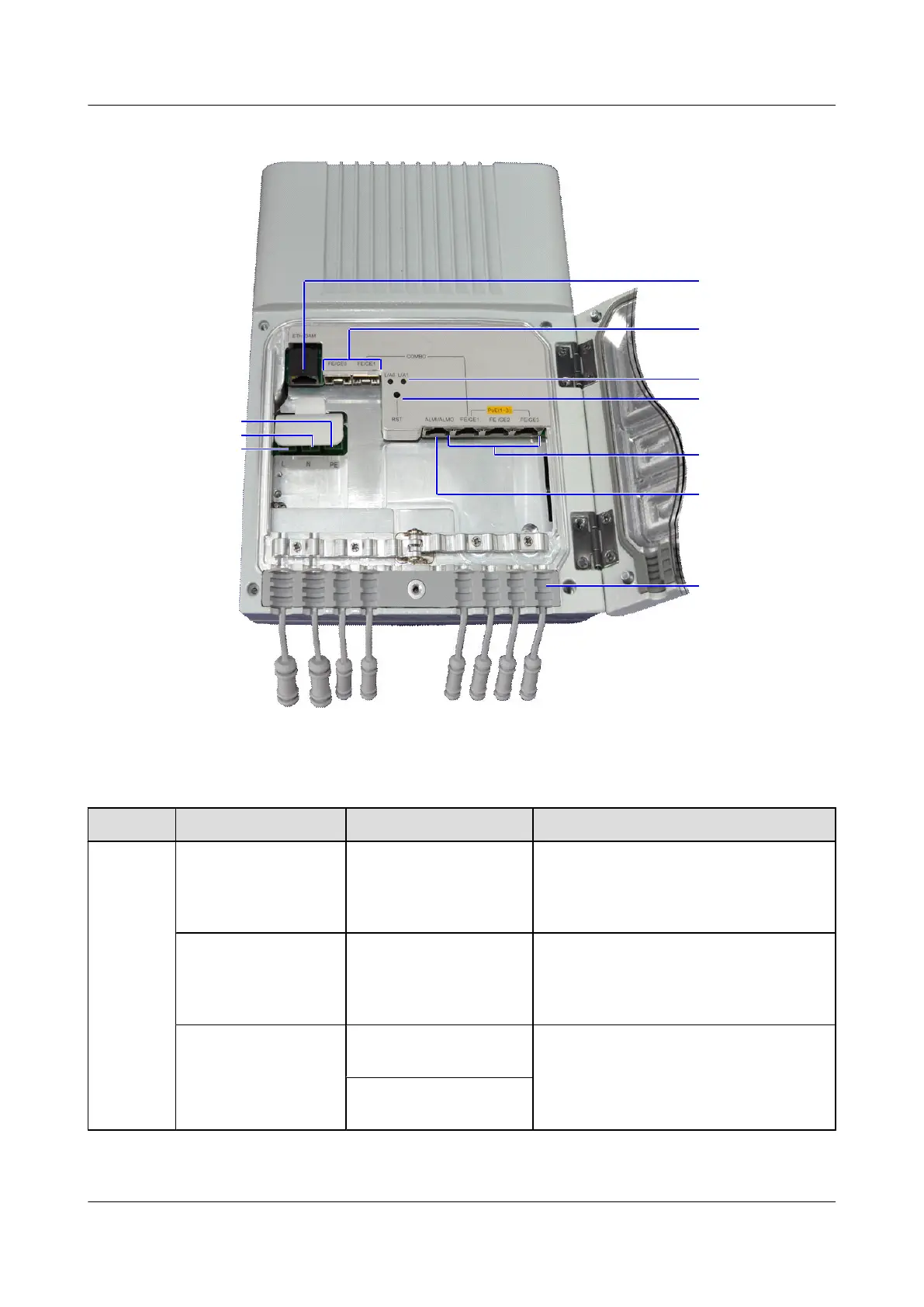

Figure 4-5 Appearance of an outdoor ATN 905A-P device with the maintenance cover opened
Cabling hole
Service electrical
interfaces
FE/GE1-FE/GE3
SFP interface
status indicators
Reset button
Service SFP
interfaces
FE/GE0-FE/GE1
NM network
interface or NM
serial interface
L
N
PE
ALMI/ALMO
Table 4-9 Structure descriptions of outdoor ATN 905 devices
Item
Category Silk Screen Description
Interfaces AC power interface AC 100 V to 240 V
50 Hz/60 Hz; 0.25 A
Outdoor ATN 905 devices require AC
power, an input voltage ranging from 100 V
to 240 V (50 Hz/60 Hz), and a rated current
of 0.25 A.
NM network port or
NM serial port
ETH/OAM The NM network port and NM serial port are
combined and the NM serial port is non-
standard. For core connections of the cable
connected to the port, see Figure 4-6.
Service SFP interfaces GE0 and GE1, FE/GE0 to
FE/GE3 (ATN 905A)
Receive GE and FE/GE services using the
4.4.3 Optical Fibers or 4.4.2 Ethernet
Cables after an optical or electrical module
is installed.
FE/GE0 and FE/GE1
(ATN 905A-P)
ATN 905 Multi-service Access Equipment
Product Description 4 Hardware Structure
Issue 01 (2013-05-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
