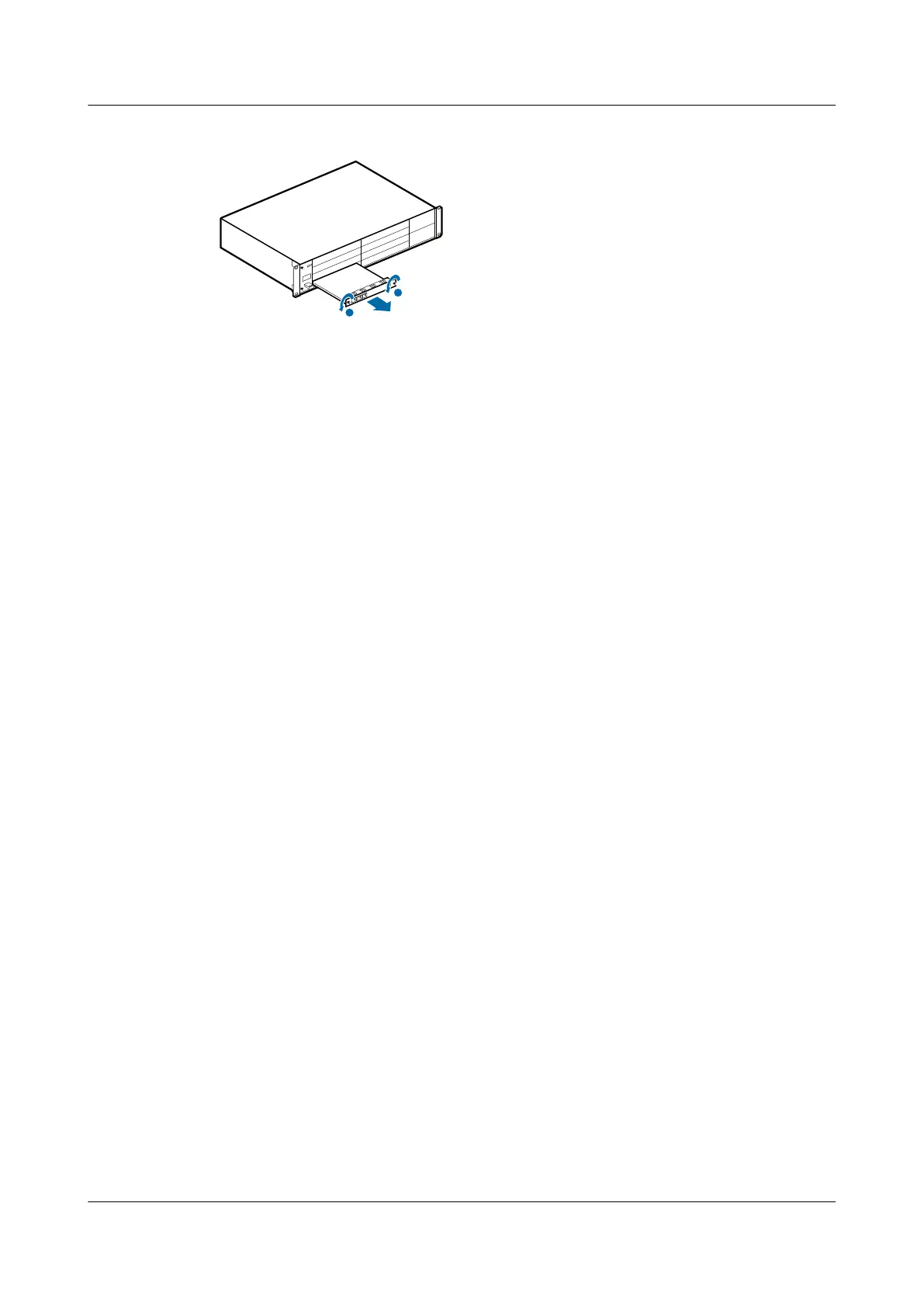

Figure 5-19 Removing the WBBP
2
1
Step 6 Install the new board, tighten the screws on the board until the tightening torque reaches 0.6
N·m, and then reconnect the cables.
Step 7 Check whether the new board is functional according to the status of the LEDs on the board.
For details about the status of the LEDs, see WBBP.
Step 8 Inform the M2000 administrator that the replacement is complete, and then instruct the
administrator to perform the following operations:
1. Load and activate the software version of the WBBP. For details, see the LMT User
Guide.
2. Run the UBL BRD command to unblock the WBBP.
3. Check that no alarm related to the board is generated . For details, see the LMT User
Guide.
4. Manually synchronize the inventory information. For details, see the M2000 Operator
Guide.
Step 9 Take off the ESD wrist strap or gloves, and then pack up all the tools.
----End
Postrequisite
l Place the replaced component into the ESD box or bag. Then, place the ESD box or bag
into a carton padded with foam or into the packing box of the new component.
l Fill in the fault form with the details of the replaced component.
l Contact the local Huawei office to handle the faulty component.
5.10 Replacing the Optical Module
The optical module implements optical-electrical conversion, thus enabling optical transmission
between the BBU and other devices.
Prerequisite
l The tools and materials, such as an ESD wrist strap or ESD gloves, are ready.
l All the types of optical module are ready.
l The authorized personnel are permitted to enter the site. The required keys are available.
BBU3900
