HUAWEI BTS3012 Fast Installation Guide Internal Use
6

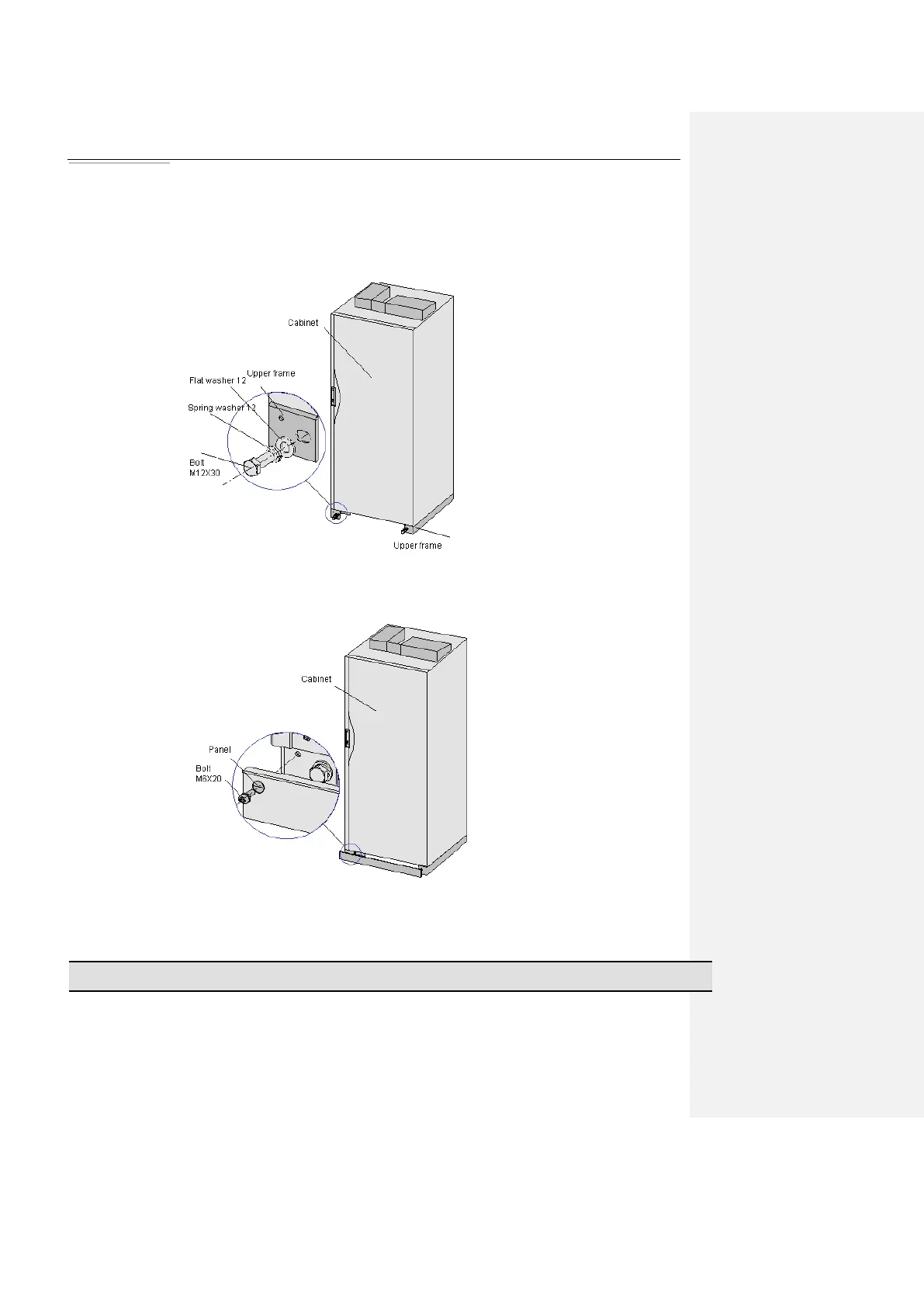

Fix the cabinet
To fix a cabinet on the bottom frame, do as follows:
1. Put the cabinet on the bottom frame to have the upper frame supported by the below frame.
2. Push the cabinet along the guide rails to make the upper frame and bottom frame tightly
combined.
3. Use two bolts to fasten the upper and bottom frames.
4. Fix the panel at the front of the base.
5. Fasten the assembled bolts on the panel.
Finish the
installation
After a cabinet is installed, check the surface of the cabinet. Paint the cabinet if the paint on the
cabinet peels off.
Install the boards
Prepare for the
installation
Notes
Before installing a board, pay attention to the following issues:
Check the cabinet and frames and clean the cabinet and frame.
