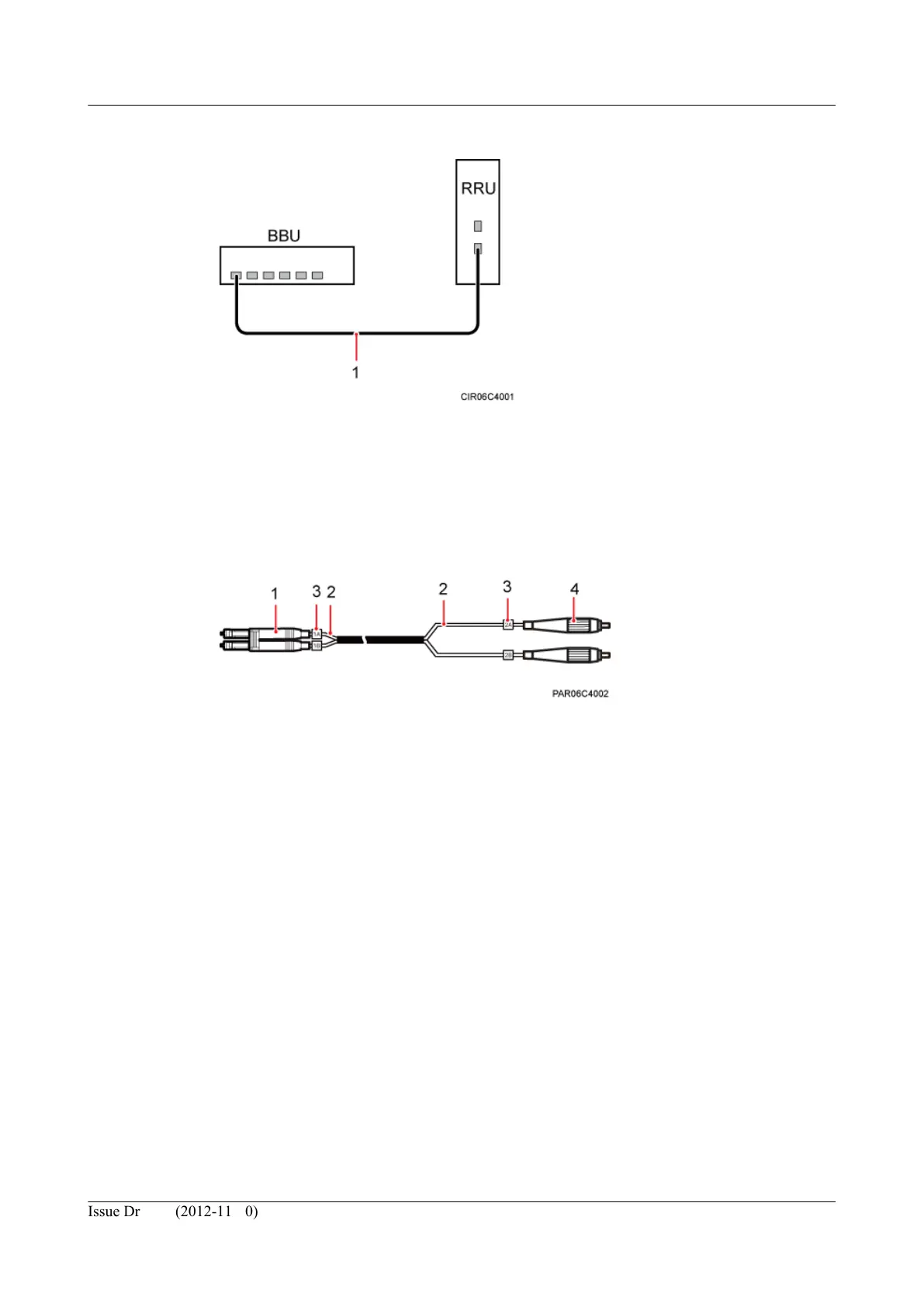

Figure 3-5 Connections for a CPRI fiber optic cable between a BBU and an RRU
(1) CPRI fiber optic cable between a BBU and an RRU
Figure 3-6 shows a single-mode fiber optic cable between a BBU and an ODF or between an
ODF and an RRU, with a DLC connector at one end and an FC connector at the other end.
Figure 3-6 Single-mode fiber optic cable between a BBU and an ODF or between an ODF and
an RRU
(1) DLC connector
(2) Branch optical fiber
(3) Label on the branch optical fiber (4) FC connector
When a single-mode fiber optic cable connects a BBU and an ODF, the optical fibers on the
BBU side and ODF side are 0.34 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.
When a single-mode fiber optic cable connects an ODF and an RRU, the optical fibers on the
RRU side and ODF side are 0.03 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.
Figure 3-7 shows the connections for a single-mode CPRI fiber optic cable between a BBU and
an ODF or between an ODF and an RRU.
DBS3900
RRU3252/RRU3256 Hardware Description 3 RRU Cables
Issue Draft A (2012-11-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
