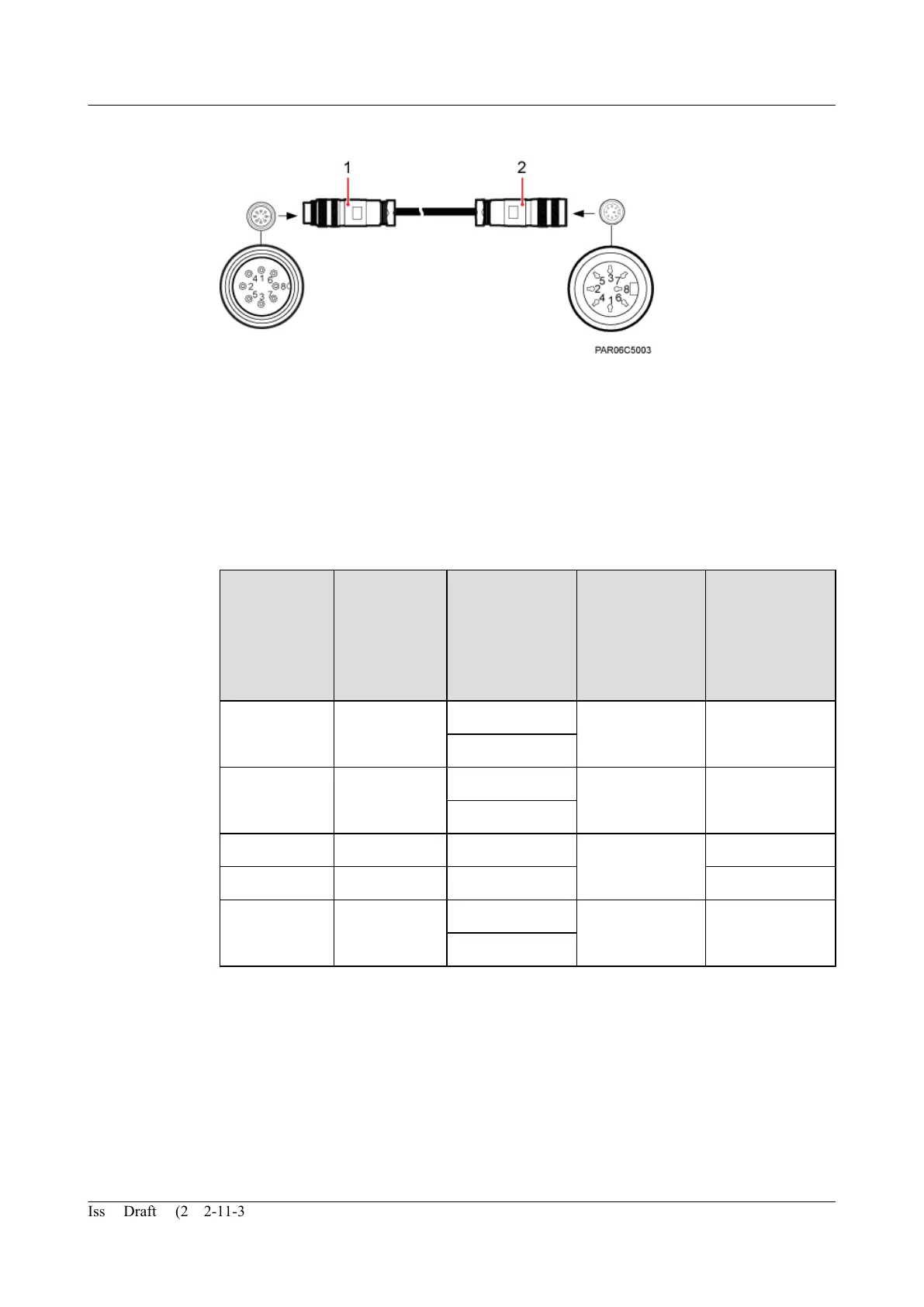

Figure 3-12 AISG extension cable

1. Standard AISG male connector 2. Standard AISG female connector

Pin Assignment

Table 3-10 describes the pin assignment for the core wires of an AISG extension cable.

Table 3-10 Pin assignment for the core wires of an AISG extension cable

X1 End (Pin

of the

Standard

AISG Male

Connector)

X2 End (Pin

of the

Standard

AISG

Female

Connector)

Color of the

Core Wire

Type of the

Core Wire

Description

X1.1 X2.1 White and blue Twisted pair +12 V

Blue

X1.7 X2.7 White and orange Twisted pair DC Return A

Orange

X1.3 X2.3 White and green Twisted pair RS485 B

X1.5 X2.5 Green RS485 A

X1.6 X2.6 White and brown Twisted pair +24 V

Brown

DBS3900

RRU3252/RRU3256 Hardware Description 3 RRU Cables

Issue Draft A (2012-11-30) Huawei Proprietary and Confidential
