Huawei G510 - Flash Memory Circuit

G510 Maintenance Manual V1.0
INTERNAL
2013-01-28
Huawei Confidential
Page 46 of 96
Troubleshooting
Fault symptom: The G510 fails to be powered on or frequently breaks down. Checks on the
32.768 kHz oscillator show that X301 and U3101 have no output or output unstable
frequencies.
Handling: Replace X301 or U3101. If the problem persists, replace the PM8029.

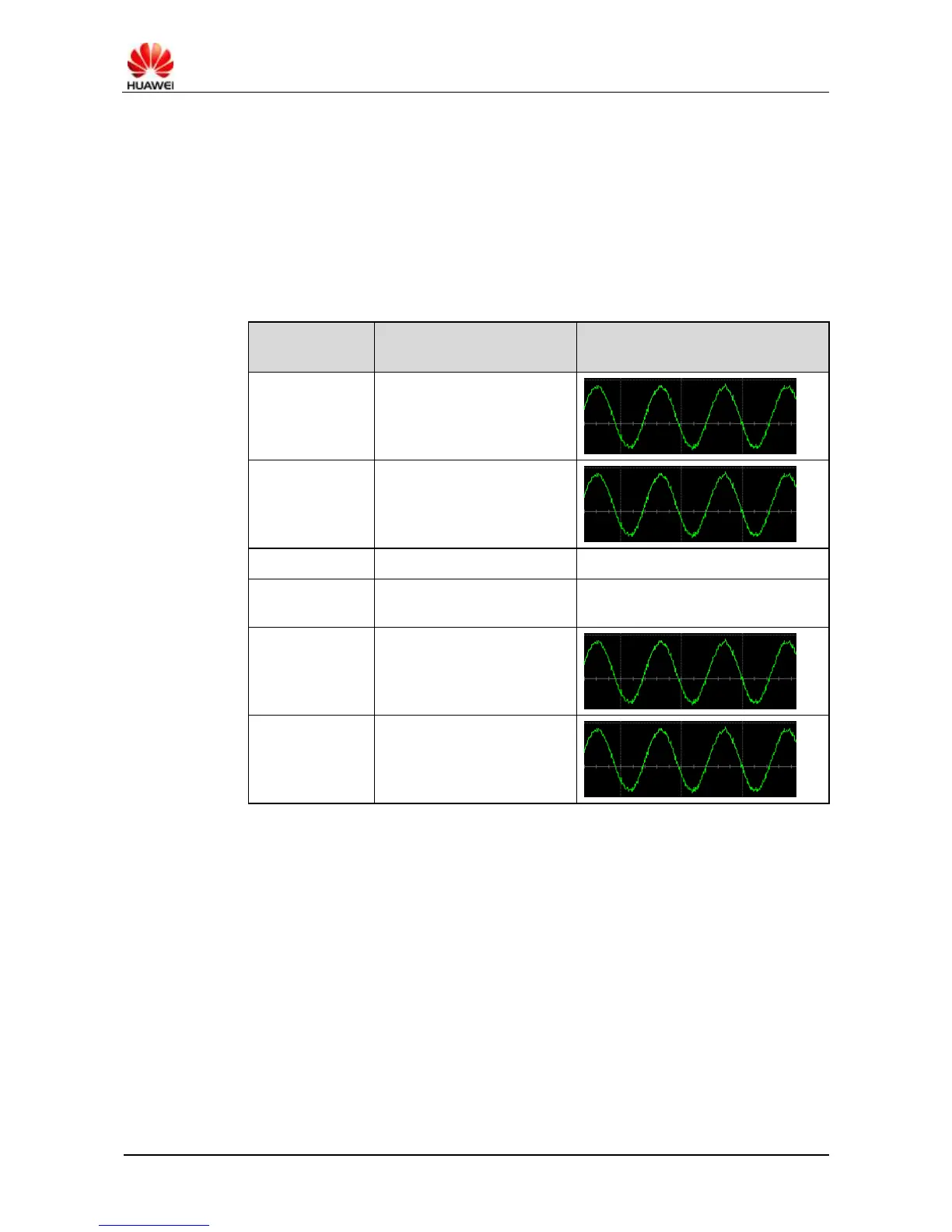

Circuit Symbols
Signal Symbol
Description
Reference Measurement or
Waveform
XTAL32K
_OUT
Output end for the 32.768
kHz main clock signals
XTAL32K_IN
Input end for the 32.768 kHz
main clock signals
VREG_TCXO
19.2 MHz oscillator power
2.85 V
TRK_LO_ADJ
Control signal of the 19.2
MHz output frequency
None
RTR6285_TCXO
19.2 MHz clock output
TCXO
19.2 MHz clock output
9.2.4 Flash Memory Circuit
Circuit Diagram
Figure 9-13 shows the circuit diagrams of the flash memory.
