3 Hardware Installation
HUAWEI HG231f Wireless-N Router
User Guide
3-4 Issue 01 (2010-04-01)

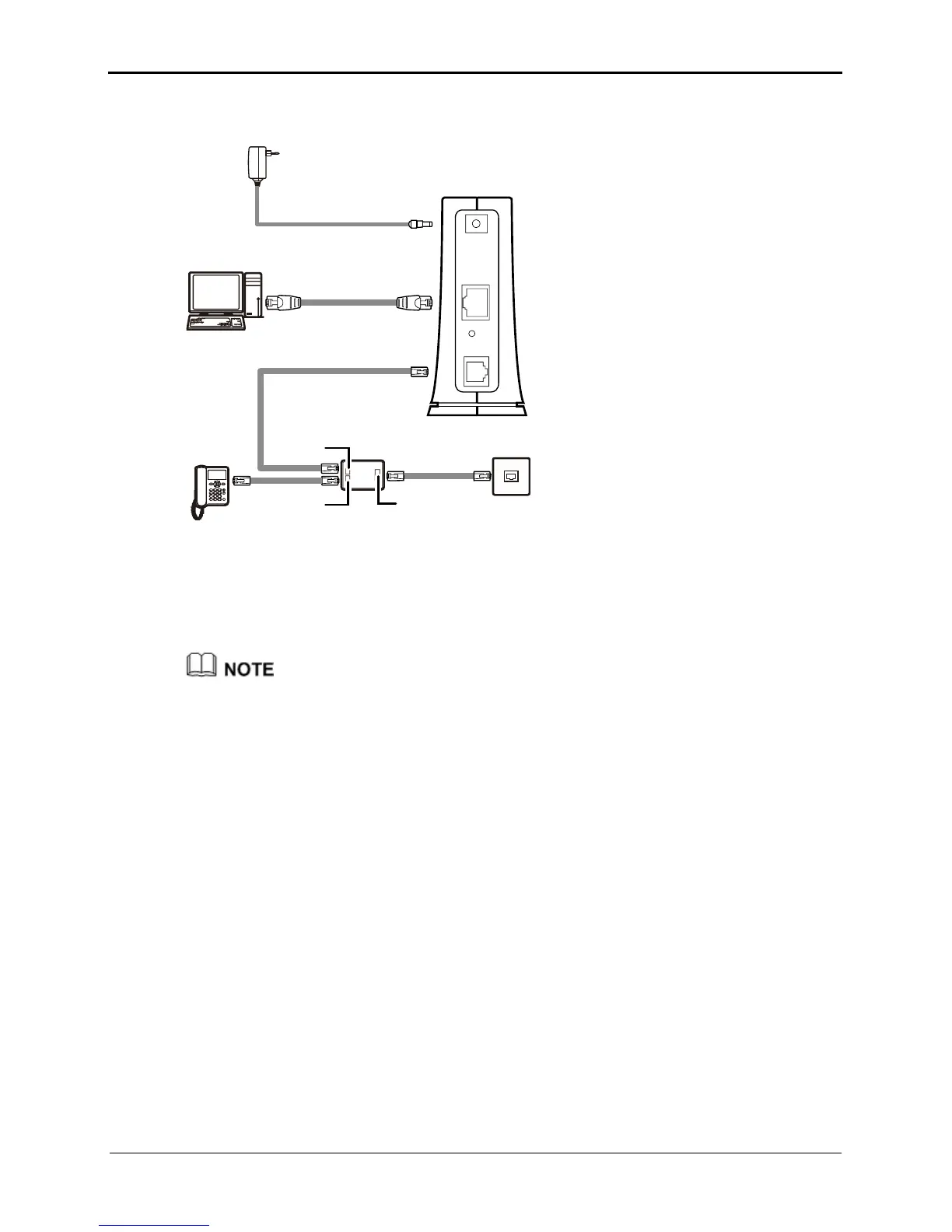

Figure 3-2 Cable connections of an ADSL broadband network before the router is
installed on the network
###
###
1
5
4
POWER
LAN
RESET
ADSL
3
PHONE
LINE
MODEM
6
2
1. Power adapter of the ADSL modem 2. PC
3. Telephone 4. Splitter
5. Telephone line interface on the wall 6. ADSL modem
Figure 3-2 takes the Huawei SmartAX MT880d ADSL customer-premises equipment (CPE)
as an example of the ADSL modem on the ADSL broadband network. Other models of ADSL
modems might vary in appearance. Their interface types and cable connections, however, are
similar to those of the modem as shown in
Figure 3-2.
Figure 3-3 shows the cable connections of an ADSL broadband network after the router
is installed on the network.
