Huawei HG659B User Manual

8
2.3 Installing the HG659b on a Fibre
Broadband Service
In some regions, broadband service is delivered by a Fibre connection.
On this network, your HG659b gateway is directly connected to the
Internet through the local fibre company optical termination point
(ONT) installed in your premise.
If you have subscribed to fibre broadband services, connect your
HG659b WAN Ethernet port to your fibre company ONT using the blue
Ethernet cable supplied.

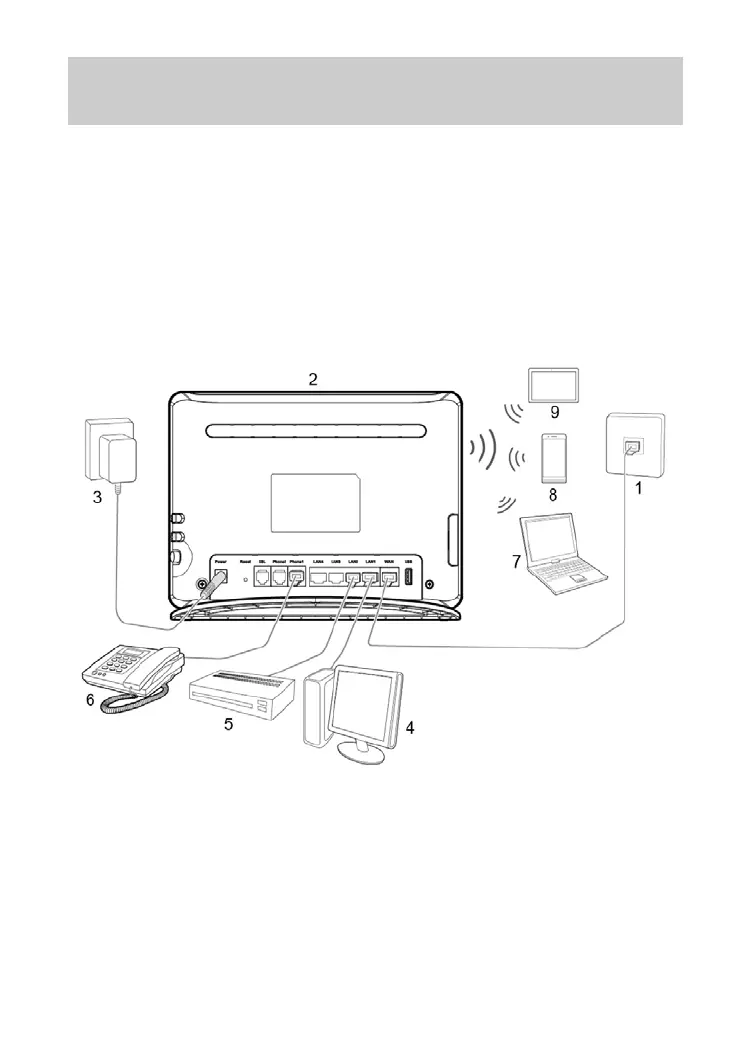

Connect your devices in the sequence indicated in the following figure.
1. Ethernet wall jack
2. HG659b
3. Power adapter
4. Desktop computer
5. Set-top Box
6. Telephone
7. Laptop computer
8. Mobile phone
9. Tablet

Huawei HG659B Specifications

General

Device Type	Gateway
Type	ADSL/VDSL
Wi-Fi Frequency Bands	2.4 GHz, 5 GHz
WAN Ports	1
LAN Ports	4
USB Ports	1
RJ11 Port	1
VoIP	Yes
Power Supply	12V DC
Wi-Fi Standards	802.11b/g/n/ac
Maximum Wi-Fi Speed	1300 Mbps
Security	WPA, WPA2
Buttons	WPS, Reset
Dimensions	160 x 35 mm
