This terminal is mainly placed horizontally on a desk. When it is mounted
onto a wall, the silkscreen of its indicator is reversed. If you have a special
requirement on the silkscreen, purchase another terminal.
This document uses the HG8240H5 as an example to describe the connections. Ports
on GPON terminals of other types may be different. Therefore, connect cables based
on the ports that are actually supported by the device. If the external device is different
from the device in the figure, refer to the description for connections of the external
device.
1
Power switch
2
Power port
3
POTS port
4
Ethernet port
5
Optical port

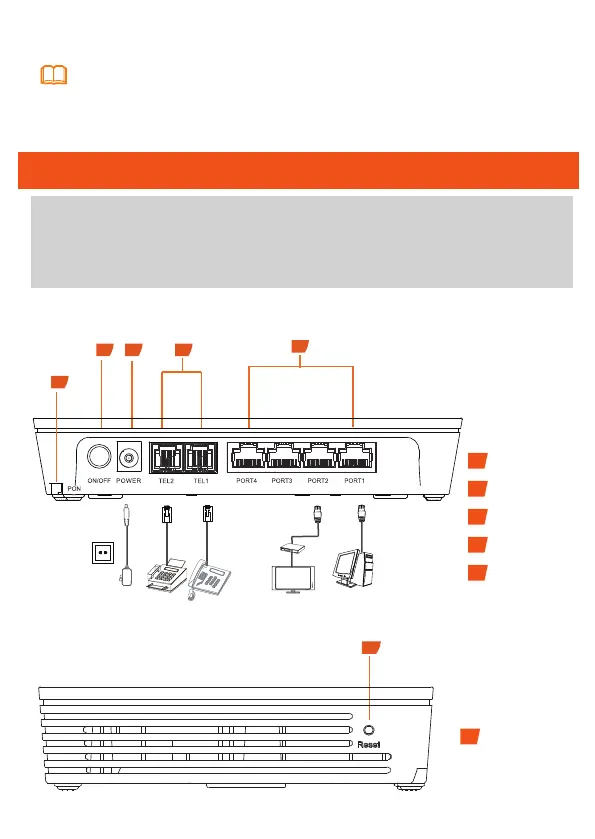

Connecting Cables
1 2
3
4
Power socket
Fax machine
Phone
PC
IP STB
TV set
5
6
Reset
To Next Page
