Huawei ideos S7 - Installation; To Remove the

2
11 Micro USB interface
12 OFN (Optical Finger Navigation) key
13 Call key
14 Speaker
15 LED indicator
16 Front camera lens
17 Power key
18 Bracket
19 Rear camera lens
20 Volume Up/Down key
21 Speaker
22 Headset jack
1.3 Installation

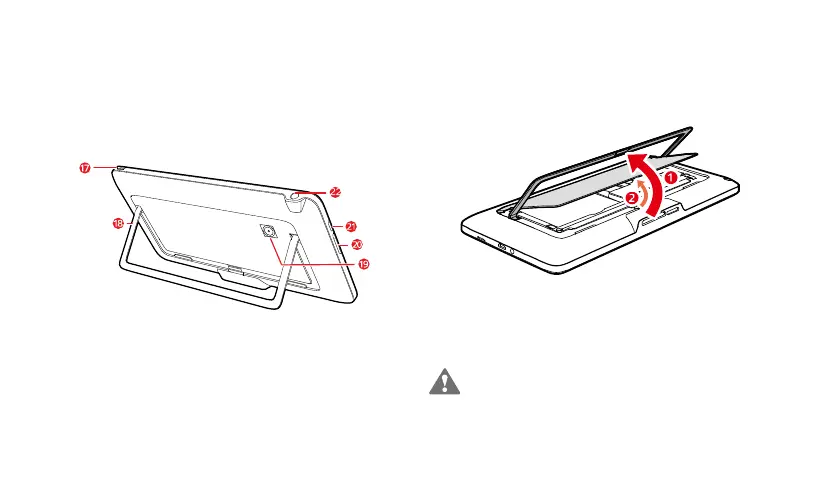

1.3.1 To remove the back cover
To remove the back cover, refer to the following figure and steps.
1. Unfold the bracket.
2. Open and remove the back cover.
To prevent injury, properly place the back cover after you
emove the back cover because it may have sharp edges and
angles.
r
