13

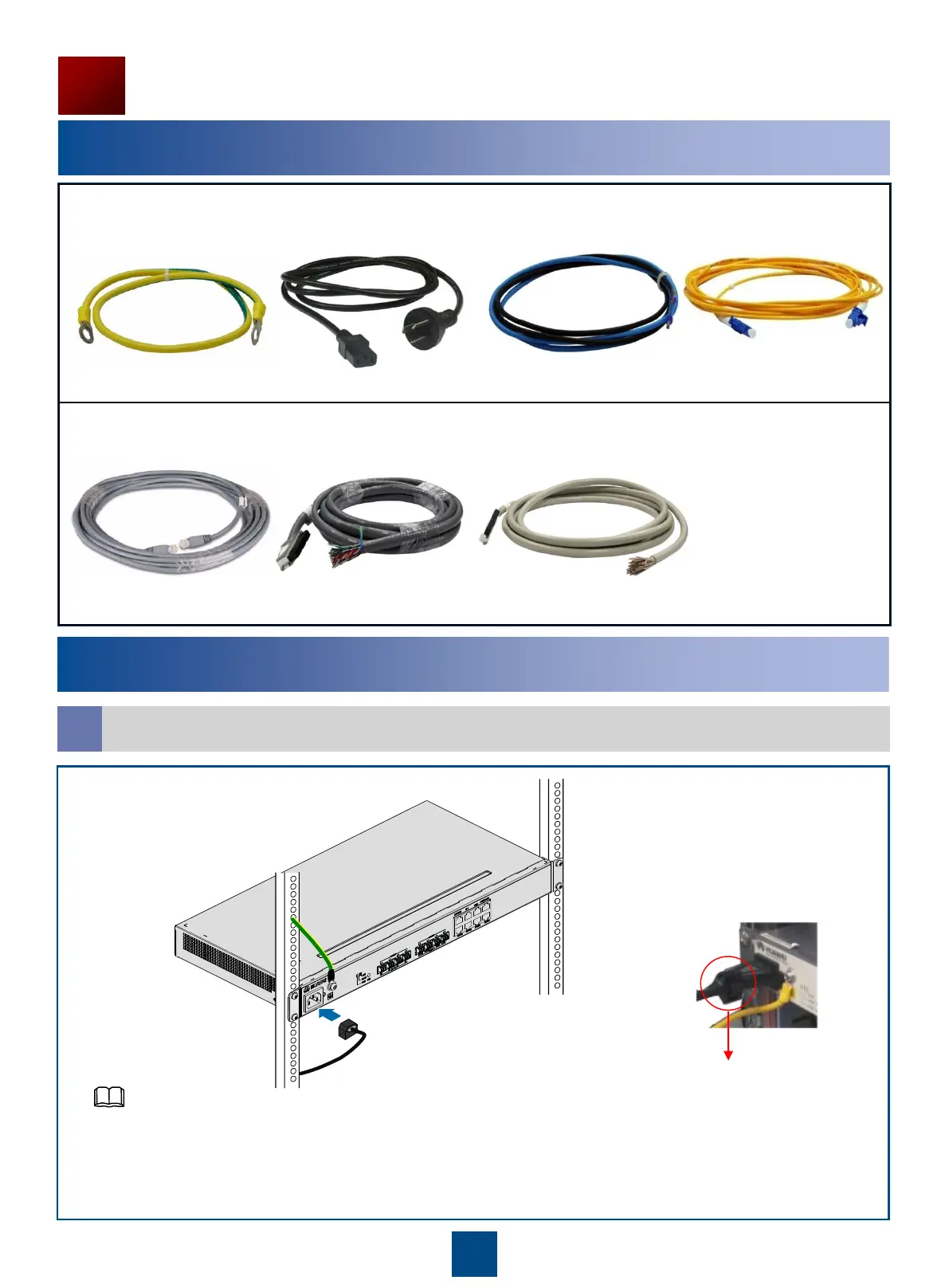

Connecting and Routing Cables
1
Common Cables for the Chassis
PGND cable
AC power cable DC power cable
Fiber
Shielded network cable E1 cable (120-ohm ) E1 cable (75-ohm)
2
Installing the Power Cable
the cable tie
a
Installing the AC Power Cable
NOTE
•Insert the power plug, and use the cable tie to fix the plug connected to the device, preventing
the plug from getting loose or falling off.
•Ensure that the power cable and other cables (E1 cable, optical fiber, and network cable) are
routed in opposite directions. Generally, insert power cables on the left and signal lines on the
right.
•If the NE05E-SQ requires AC power modules, you must install both AC power modules.
To Next Page
