3
Precautions
This document provides simple and distinctive guidelines for quick hardware installation of the
NE05E&NE08E(NE05E-SR/S2/SE/SF/SG/SH/SI/SQ&NE08E-S6/S6E/S9).
Based on the height of a device, the NE05E-SR/S2/SE/SF/SG/SH/SI/SQ are considered 1 U
devices, and the NE08E-S6/S6E are considered 2 U devices, and the NE08E-S9 are considered 3
U devices. 1 U = 44.45 mm (1.75 in.)
As the installation methods are similar, the fixed NE05E-SI is used as an example for the 1 U
device, and the card-inserted NE08E-S6 is used as an example for the 2 U device. The
installation differences are specially described in this document.
This document does not describe pre-delivery assembly. This document only describes
procedures for onsite installation.

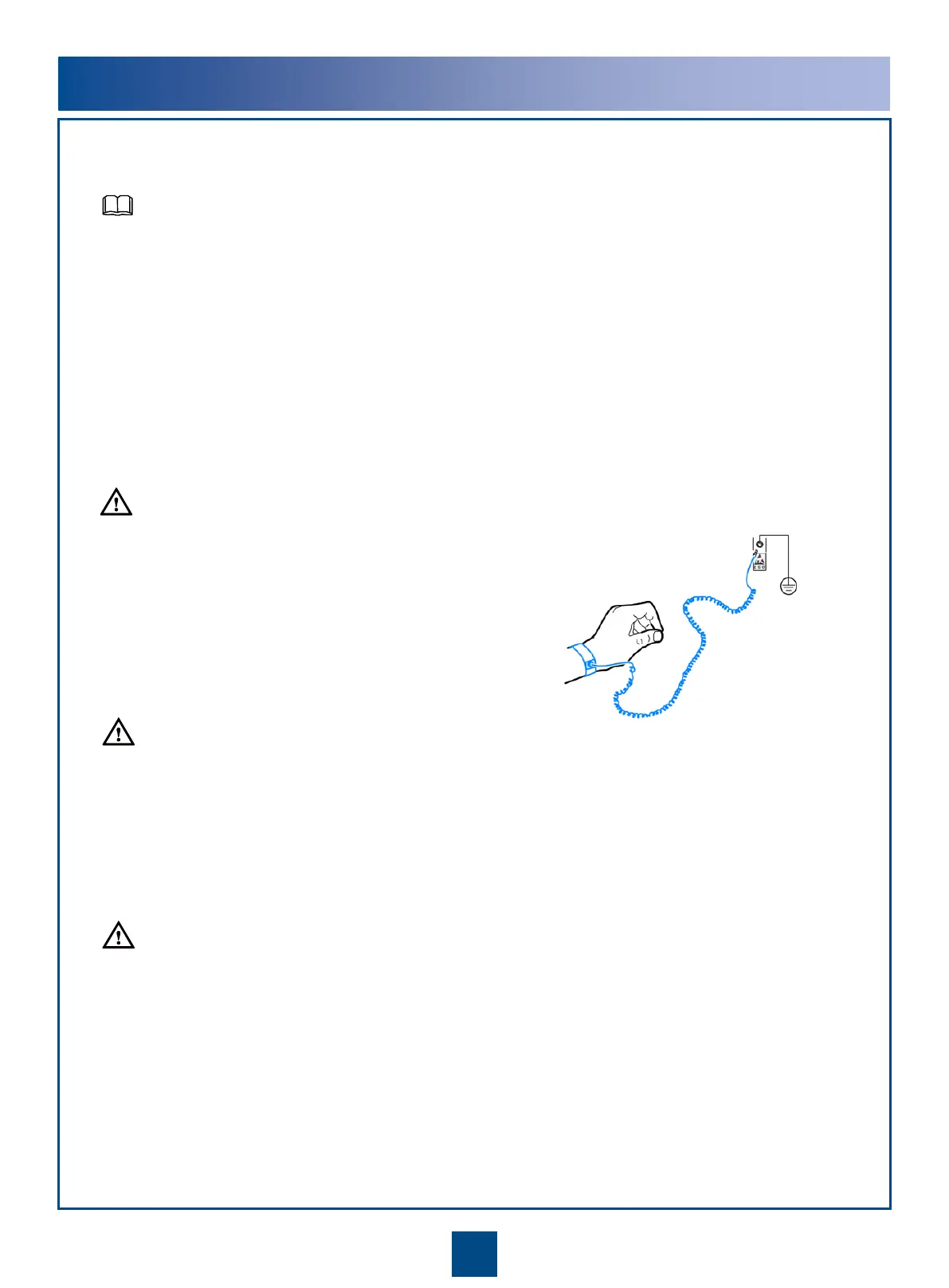

Wear ESD gloves or Antistatic Wrist Strap prior to
contact with the equipment or before handling the
plug-boards, boards, and IC chips to prevent
damage to sensitive components caused by
electrostatic discharge from the human body.
Binding intervals between cable ties or optical fiber binding straps inside the cabinet
cannot exceed 250 mm.
Electrostatic Discharge
Pre-Installation Check
Verify that the equipment room, power supply, ground cables and optical cables are ready
for installation. Start the installation according to the engineering design documents after
confirming that conditions are met. Refer to the
Installation Guide
for information about
specific operational requirements and technical specifications.
NOTE
CAUTION
CAUTION
CAUTION
Bundling cables
