Huawei PowerCube 500 Quick Guide

2
2

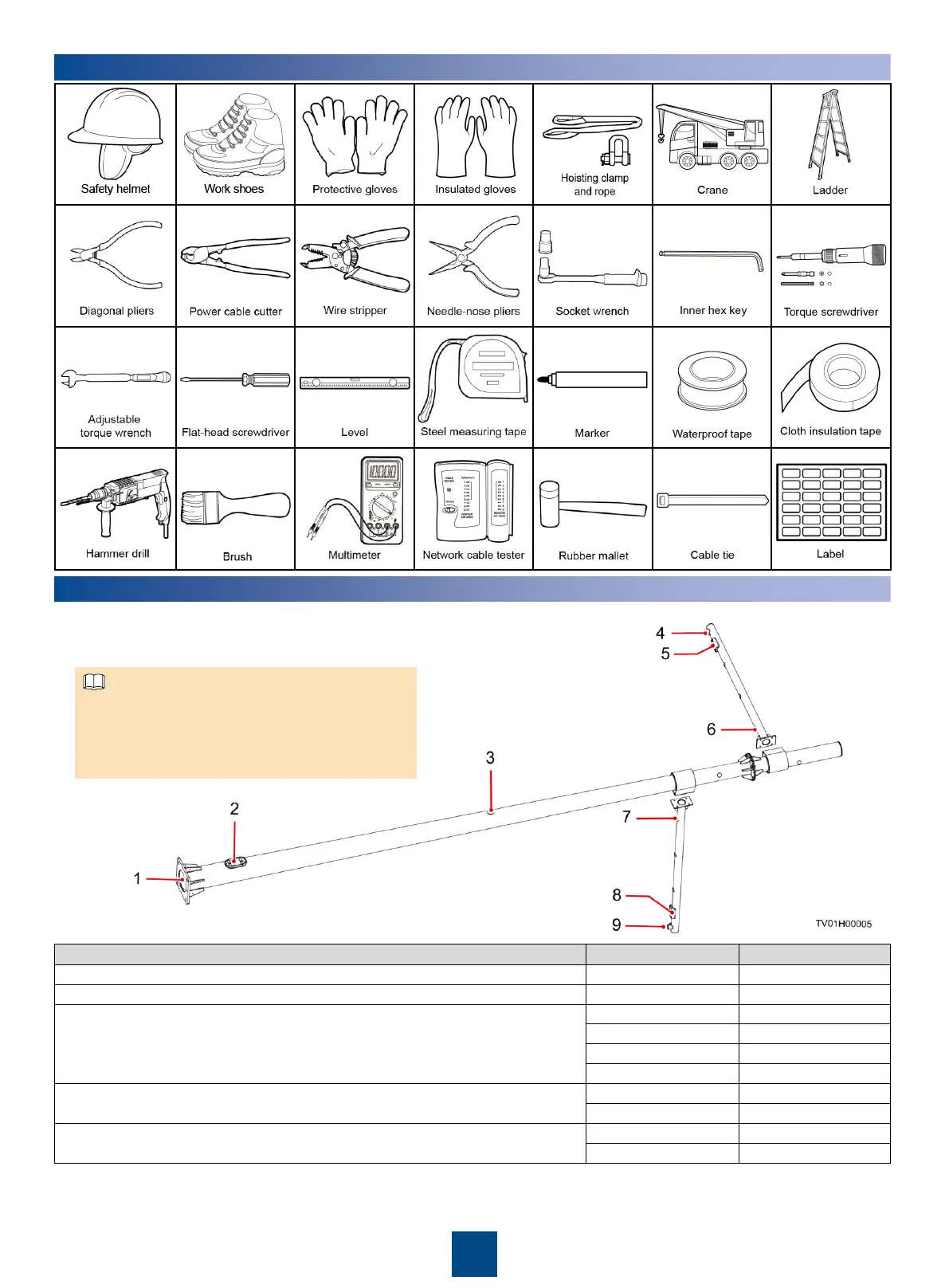

Tools
3
Routing Cables Through the Pole
1. Place the pole on a wooden case or a similar object.
2. Route a pull wire.
3. Route cables.
Cables
Inlet
Outlet
Mains AC cable and optical fiber
1
3
Module ground cable
2
3
Camera ground cable
4
5
6
5
7
8
9
8
Dome camera signal cable, power cable, and alarm cable
4
3
9
3
Bullet camera signal cable, and power cable
6
3
7
3

The cables routed from the pole cable hole have a
length of 1.5 m reserved. The cables routed from the
cantilever cable hole have a length of 0.5 m reserved.

The object where the pole is placed should be able to
bear a load above 700 kg.
