The optical modules supported by S1700-52GFR-4P-AC are the same as those
supported by S1700-28FR-2T2P-AC. For details, see the optical modules supported
by S1700-28FR-2T2P-AC.
5.1.5 S1728GWR-4P
Appearance

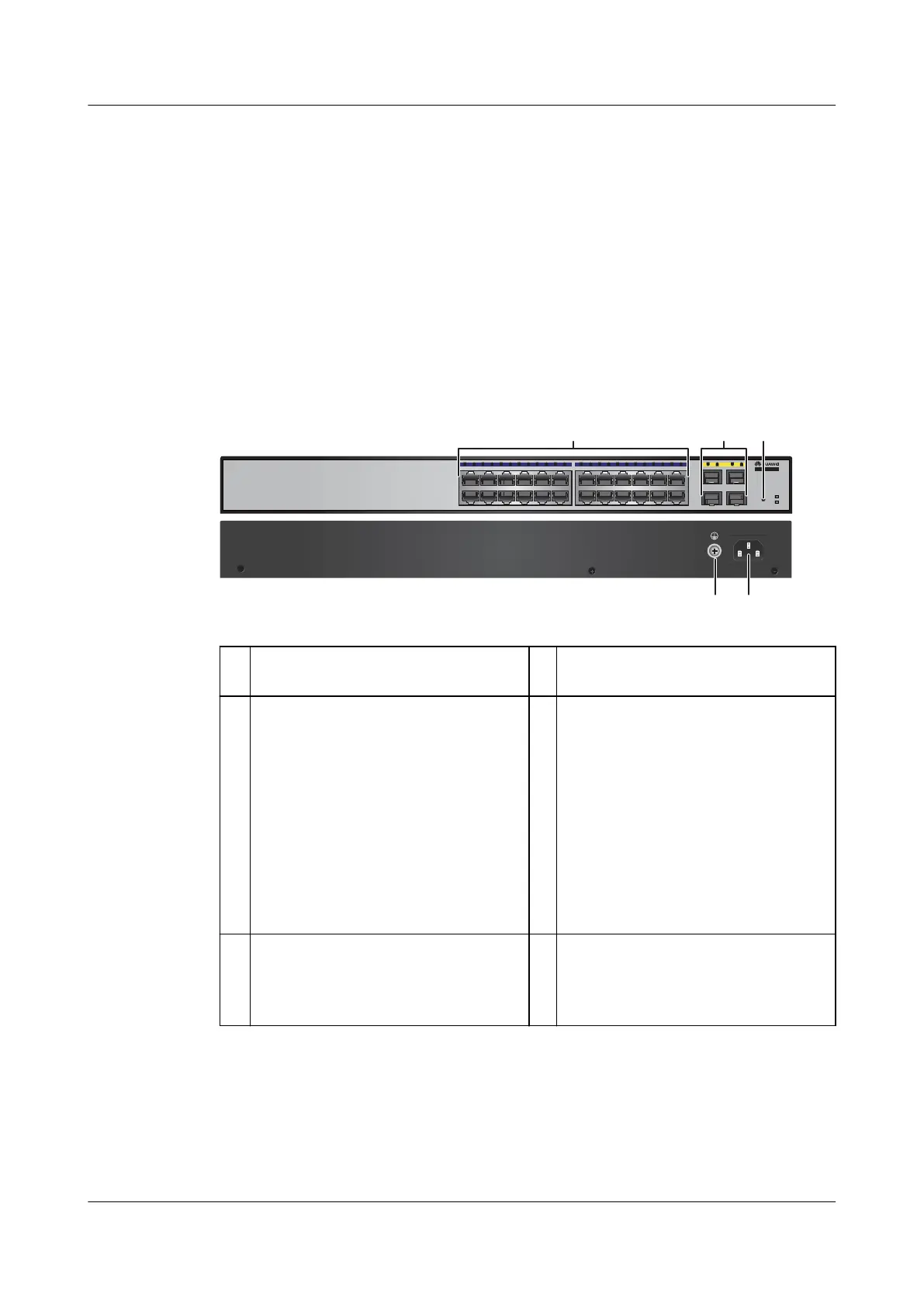

Figure 5-7 shows the appearance of an S1728GWR-4P.
Figure 5-7 Appearance of an S1728GWR-4P
Quidway S1700 Series
RESET
PWR
RUN
~100-240V;50/60Hz;0.4A
1
Green=1000M
Yellow=100M
11
12 23
1
2
3
4
5
6
7
8
9
10
11
12 22
23
24
21
22
23
24
2119
20
17
18
15
16
13
14
S1728GWR-4P
123
4 5
1 Twenty-four 10/100/1000BASE-T
ports
2 Four 1000BASE-X ports
3
Reset button
NOTICE
To restore the factory settings of a
switch, hold down the Reset button for
at least 6 seconds. This operation will
not reset the switch.
To reset a switch, press the Reset
button.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
4
Ground screw
NOTE
No ground cable is delivered with the
switch.
5
AC power socket
NOTE
It is used with an AC power cable.
- -
Indicators
The indicator description for S1728GWR-4P is the same as that for
S1700-28GFR-4P-AC. For details, see the indicator description for
S1700-28GFR-4P-AC.
