Appearance and Structure

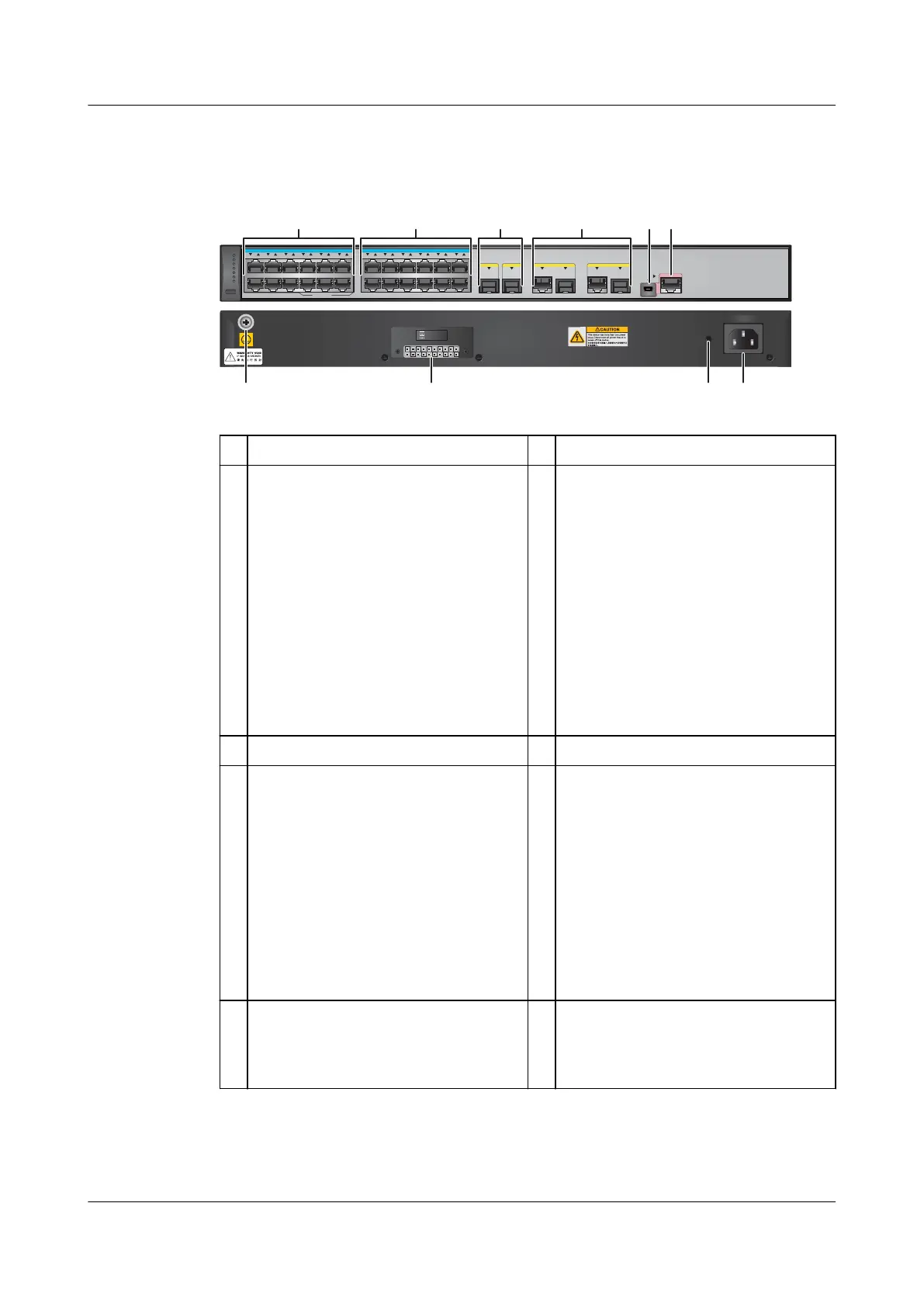

Figure 3-22 S5701-28TP-PWR-LI-AC appearance
12 34 56 78 910 11 12 13 14 15 16 17 18 19 20
21
22 23 24
CONSOLE
25 26 27
1G/STACK-5G 1G
MODE
HUAWEI
STCK
PoE
SPED
STAT
SYS
PWR
RPS
S5701-28TP-PWR-LI-AC
28
1G
PoE 1-12
1 234
56
~100-240 V; 50/60Hz; 3.5A
+12V;10A
-53.5V;8A
78 109
1 Twelve PoE+ 10/100/1000BASE-T ports 2 Twelve 10/100/1000BASE-T ports
3 Two 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
l Stack optical module (applicable in
V200R007C00 and later versions)
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
4 Two combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
5 One mini USB port 6 One console port
7 Ground screw
NOTE
It is used with a ground cable.
8 RPS socket
NOTE
l It is used with an RPS cable which is not
hot swappable.
l A PoE switch can have an RPS power
supply connected to this socket to
provide inputs for system power supply
and PoE power supply. The two inputs
are independent of each other. The RPS
power supply can also be used as a
backup of the system power supply when
it does not provide PoE power.
9 Jack for AC terminal locking latch
NOTE
The AC terminal locking latch is not
delivered with the switch.
10 AC socket
NOTE
It is used with an AC power cable.
Port Description
10/100/1000BASE-T port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
127
