The mini USB port is connected to a console for on-site configuration. When both the Mini
USB and console port have a cable connected, only the Mini USB port works.
Indicator Description
NOTE
In V200R007 and later versions, you can hold down the mode switch button for 6s and release it to start
the web initial login mode. Either of the following situations will occur:
l If the switch has no configuration file, the system attempts to enter the web initial login mode. In
this mode, the status of mode indicators is as follows:
l If the system enters the web initial login mode successfully, all mode indicators turn green
and stay on for a maximum of 10 minutes.
l If the system fails to enter the initial login mode, all mode indicators fast blink for 10
seconds and then restore to the default status.
l If the switch has a configuration file, the system cannot enter the web initial login mode. In this
case, all mode indicators fast blink for 10s, and then return to the default states.

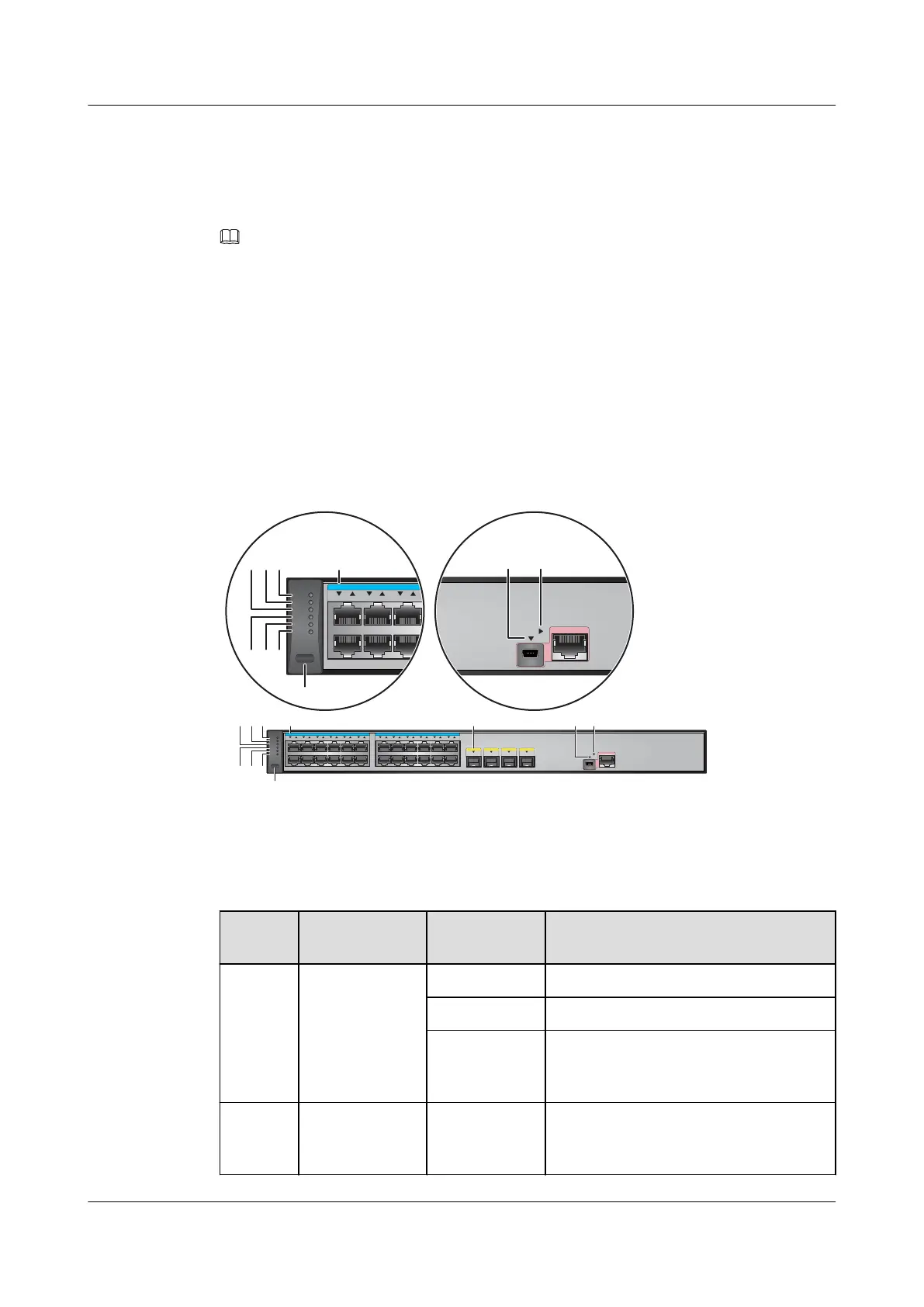

Figure 3-25 Indicators on the S5700-28X-LI-AC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
1
2
3 4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5700-28X-LI-AC
18 8910
7
23
654
12 34 56
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5700-28X-LI-AC
18
7
23
654
CONSOLE
910
Table 3-67 Description of indicators on the switch
Numbe
r
Indicator/
Button
Color Description
1 PWR: internal
power supply
indicator
- Off: The switch is powered off.
Green Steady on: The switch is powered on.
Yellow Steady on: The built-in power module is
faulty, and the switch is powered by the
RPS system.
2 RPS: RPS
power supply
indicator
- Off: No RPS is connected to the switch.
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
