Table 3-103 Version mapping
Series Model Software Version
S5700-LI S5701-28X-LI-24S-AC V200R003C00 and later versions
NOTE
This model does not match V200R003C02,
V200R003C10, V200R005C00SPC500,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
Appearance and Structure

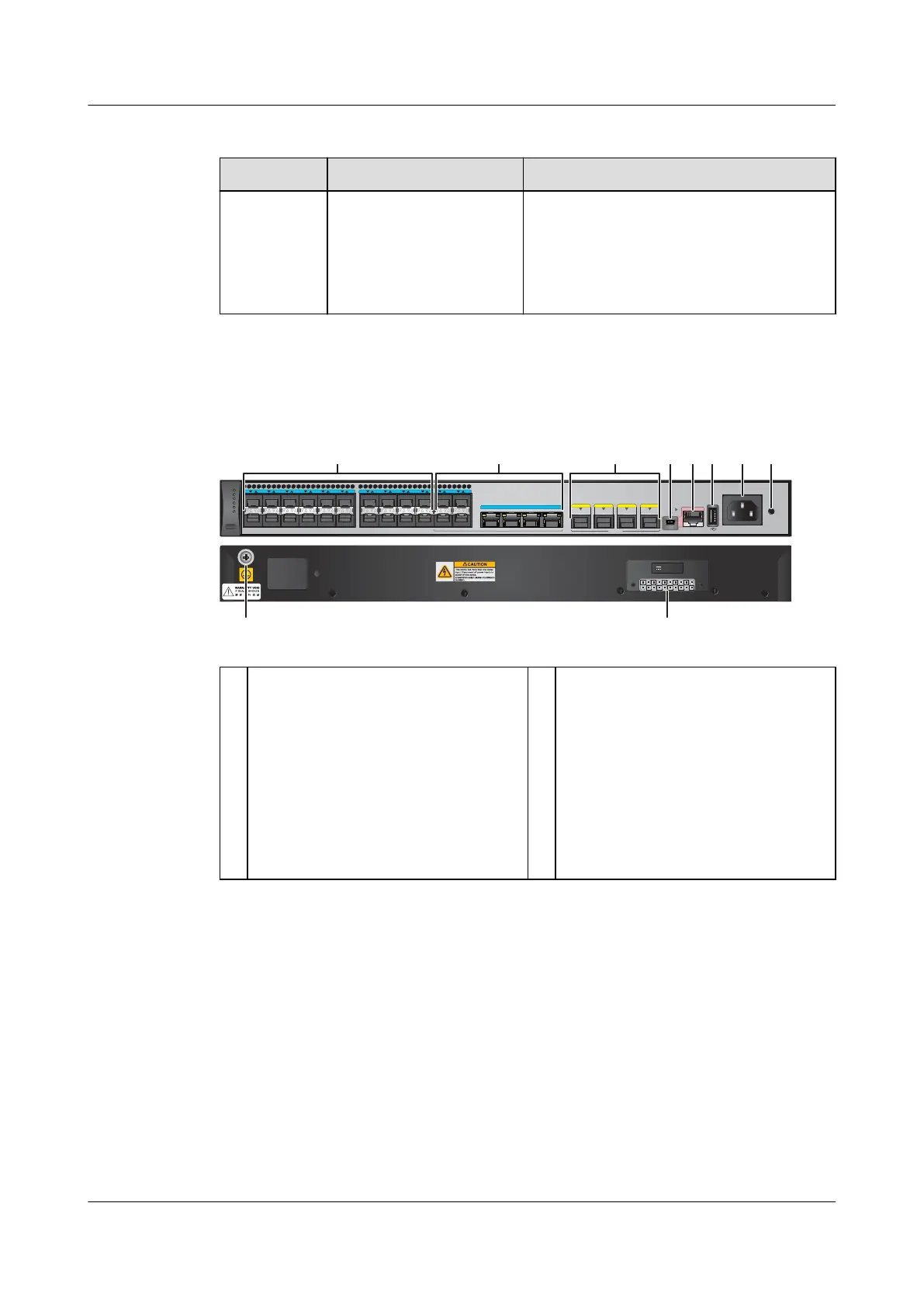

Figure 3-39 S5701-28X-LI-24S-AC appearance
CONSOLE
1 2 3
4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5701-28X-LI-24S-AC
1234567891011 12
13 14
15
16
17 18 19 20
21
22
23 24
21 22 23 24
10G/1G
~100-240V;50/60Hz;1.7A
1 23
456 7 8
910
+12V;8A
1 Twenty 100/1000BASE-X ports
Applicable modules:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
2 Four combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
182
