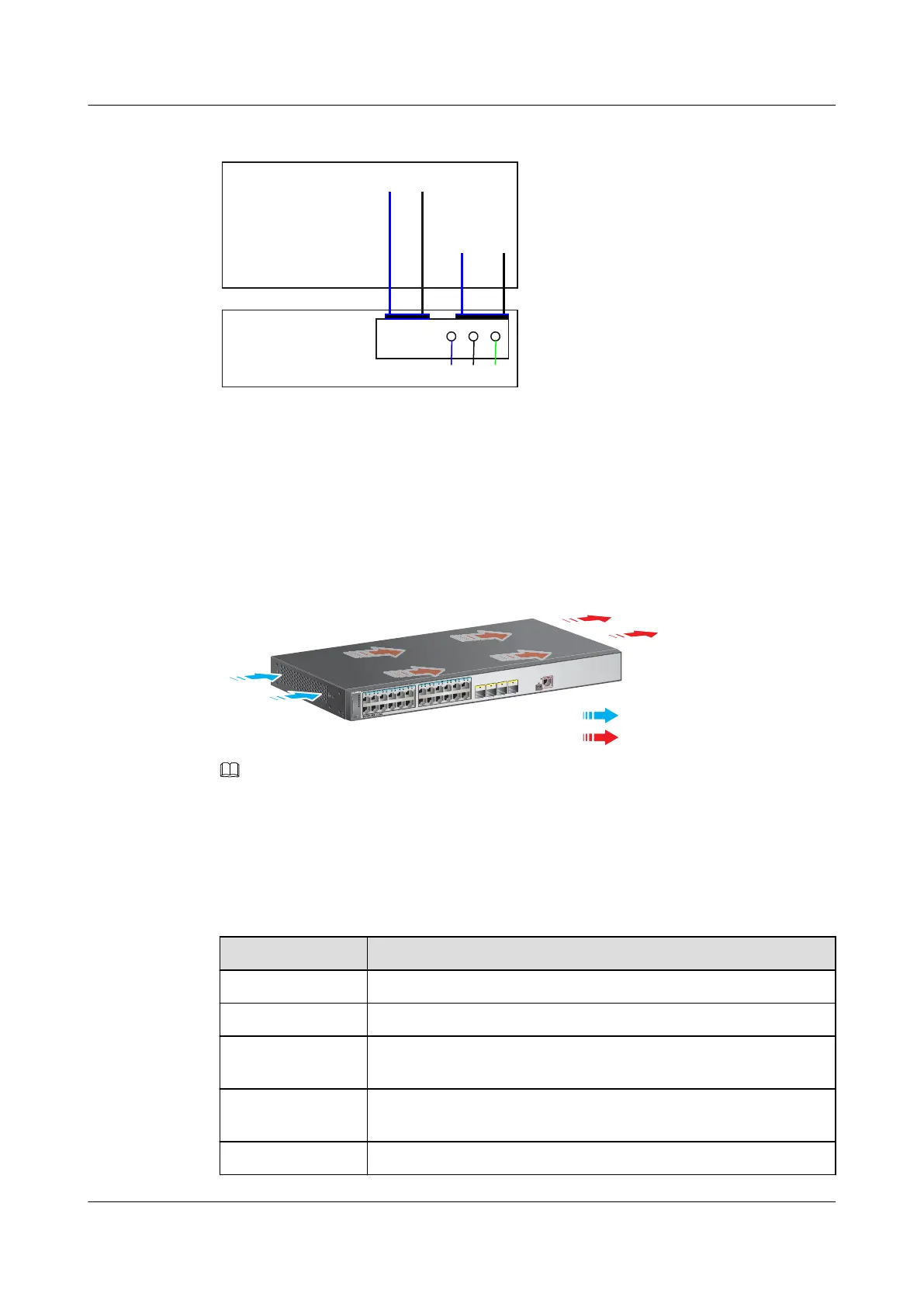

Figure 3-46 Power supply by a built-in AC PoE power module
Motherboard
GND
12V
PWR
L N PGND
-53V RTN
L: live wire N: neutral wire PGND: protection
ground
GND: 12 V reference
ground
RTN: -53 V reference
ground
Heat Dissipation
The S5700-52X-PWR-LI-AC has built-in fans for forced air cooling. The airflow direction is
left-to-right.
1
2
3
4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
Cold air
Hot air
NOTE
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 3-124 lists technical specifications of the S5700-52X-PWR-LI-AC.
Table 3-124 Technical specifications
Item
Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between
failures (MTBF)
40.72 years
Mean time to repair
(MTTR)
2 hours
Availability > 0.99999
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
202

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
