Version Mapping
Table 3-125 lists the mapping between the S5700-52X-LI-48CS-AC chassis and software
versions.
Table 3-125 Version mapping
Series Model Software Version
S5700-LI S5700-52X-LI-48CS-AC V200R003C02 and later versions
NOTE
This model does not match V200R003C10,
V200R005C00SPC500, V200R005C01,
V200R005C02, V200R005C03, or
V200R007C10.
Appearance and Structure

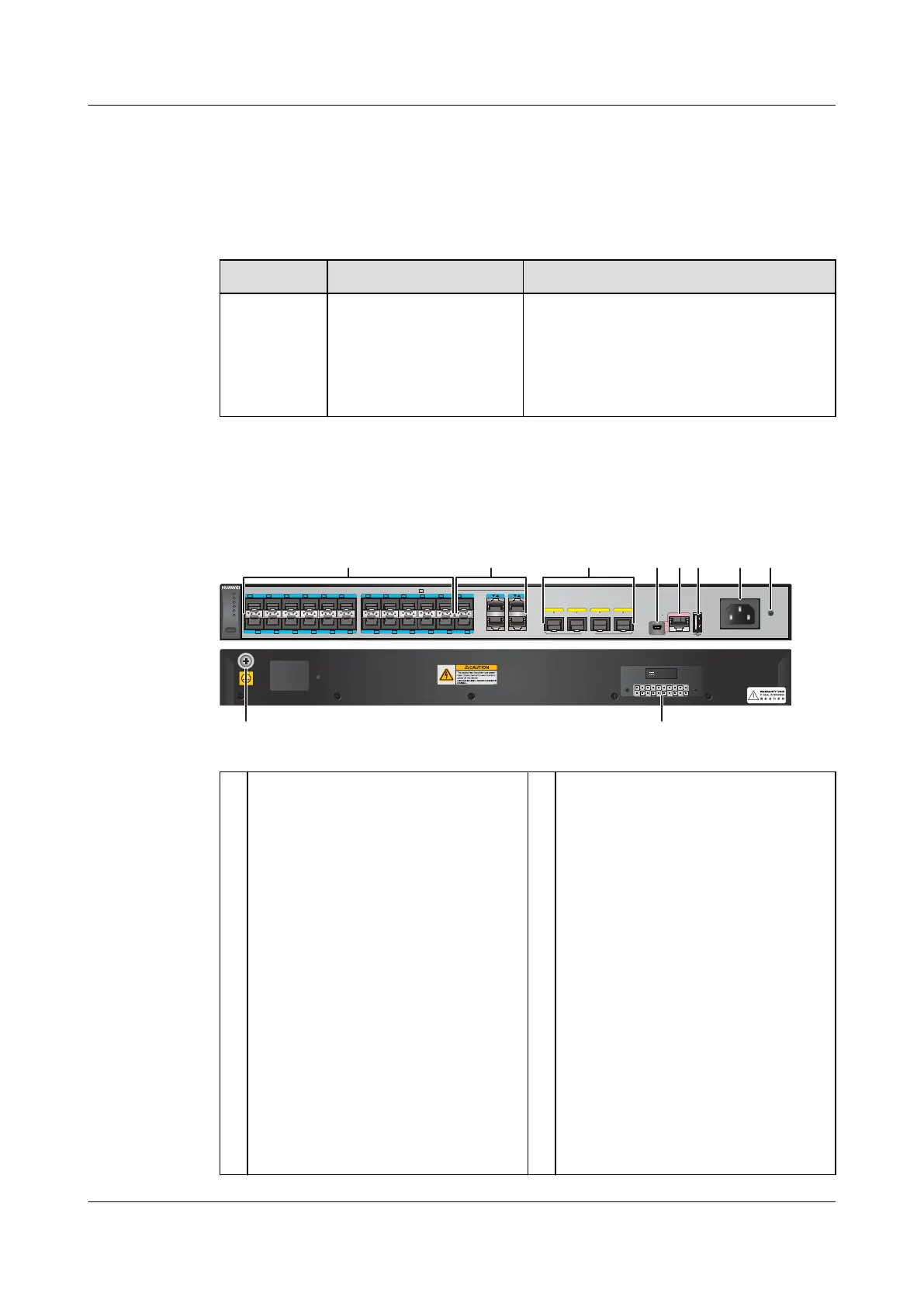

Figure 3-47 S5700-52X-LI-48CS-AC appearance
45 46
MODE
STCK
SPED
STAT
SYS
RPS
PWR
When SFP optical transceivers are used, the port numbers are marked with .
S5700-52X-LI-48CS-AC
1 2 3 4
10G/1G
2 4 6 8 10 12 14 16 18 20 22 24
1 3 5 7 9 11 1315 1719 2123
26 28 30 32 34 36 38 40 42 44 46 48
25 27 29 31 33 35 37 39 41 43 45 47
47 48
CONSOLE
~100-240V;50/60Hz;1.7A
213
456 7 8
910
+12V;8A
1 Forty-four 100/1000BASE-X CSFP
ports
Applicable modules:
l FE optical module
l GE optical module
l GE-CWDM optical module
l CSFP optical module
l GE copper module
NOTE
l When all the ports have CSFP optical
modules installed, each port functions as
two ports. The switch has a total of 44
ports in this case.
l When all the ports have SFP optical
modules installed, each port functions as
one port. The switch has a total of 22
ports.
2 Four combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l CSFP optical module
NOTE
The four combo ports (numbered 45, 46, 47,
and 48) on a CSFP switch include four
electrical ports and two optical ports. The
two optical ports can function as four optical
modules when they have Compact Small
Form-Factor Pluggable (CSFP) optical
modules installed. When the two optical
ports have SFP optical modules installed, the
electrical ports 45 and 48 can be used
normally.
