Appearance and Structure

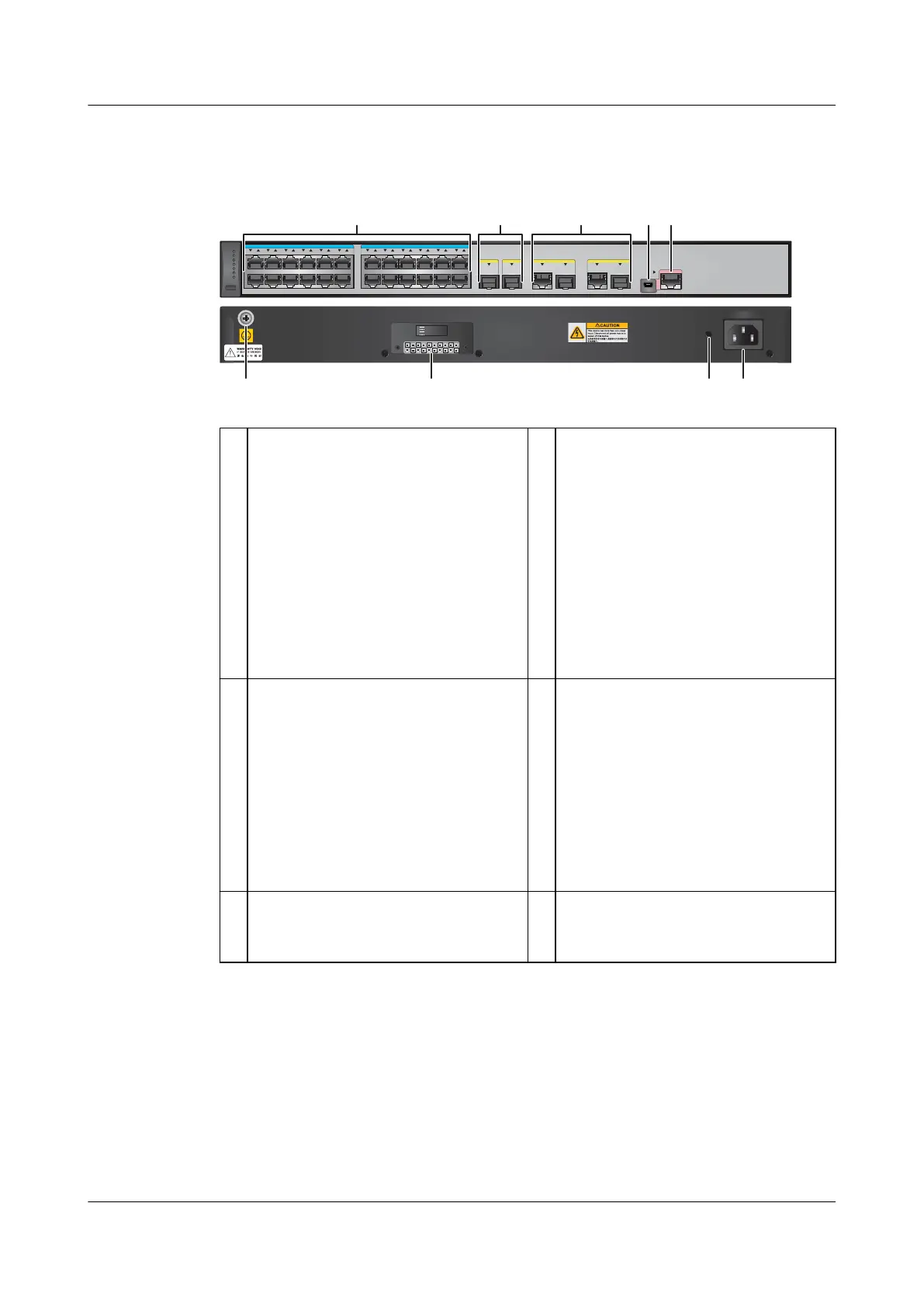

Figure 3-53 S5700S-28P-PWR-LI-AC appearance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
25 26 27
1G/STACK-5G 1G
MODE
HUAWEI
STCK
PoE
SPED
STAT
SYS
PWR
RPS
28
1G
S5700S-28P-PWR-LI-AC
~100-240 V; 50/60Hz; 7A
+12V;10A
-53.5V;15A
1
67 89
23
45
1 Twenty-four PoE+ 10/100/1000BASE-T
ports
2 Two 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
l Stack optical module
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
3 Two combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
4 One mini USB port
5 One console port 6 Ground screw
NOTE
It is used with a ground cable.
