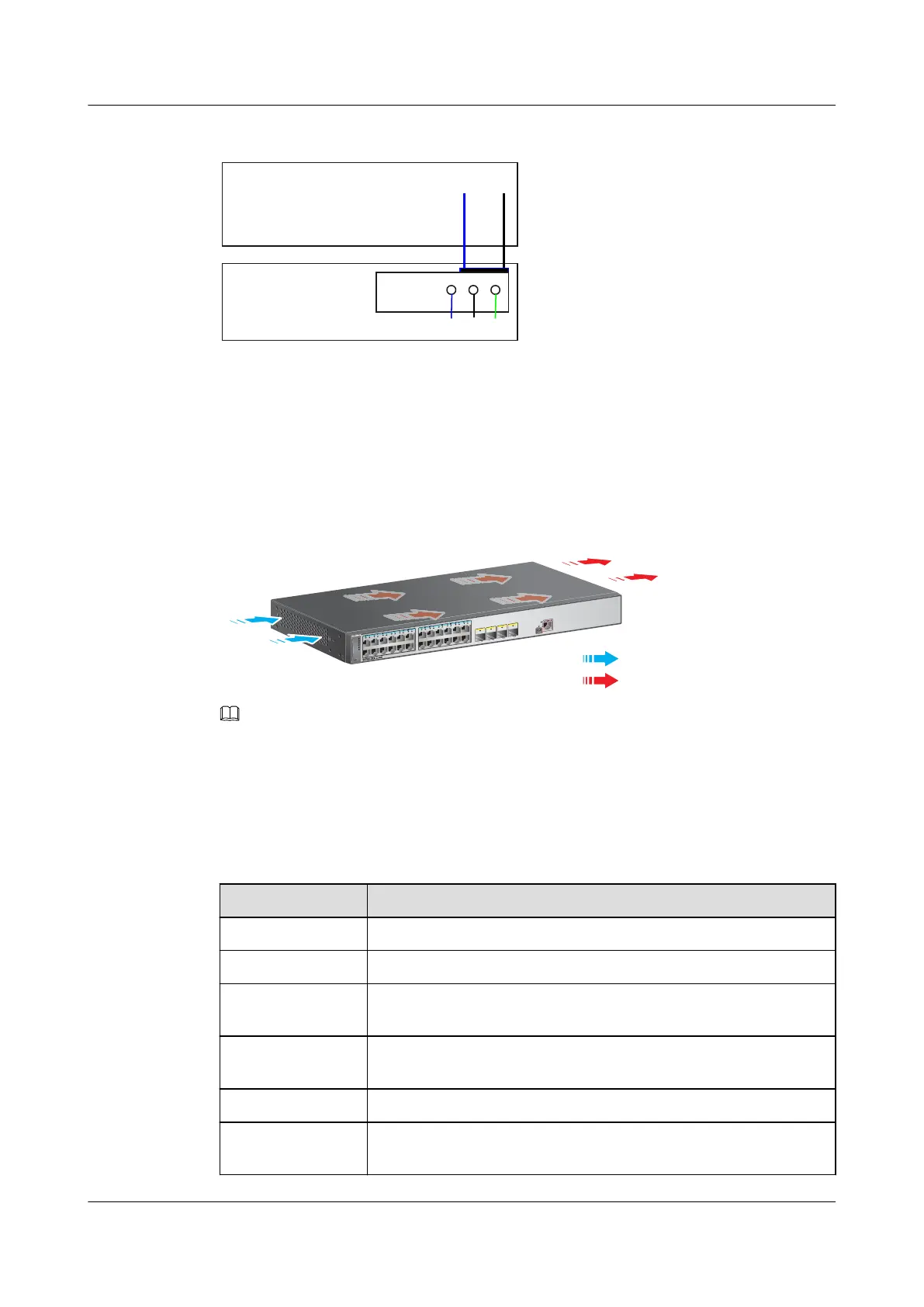

Figure 3-55 Power supply mode of a built-in AC power module
Motherboard
GND12V
PWR
L N PGND
L: live wire N: neutral wire PGND: protection ground GND: 12 V reference ground
Heat Dissipation
The S5700S-28P-PWR-LI-AC has built-in fans for forced air cooling. The airflow direction is
left-to-right.
1
2
3
4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
Cold air
Hot air
NOTE
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 3-147 lists technical specifications of the S5700S-28P-PWR-LI-AC.
Table 3-147 Technical specifications
Item
Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between
failures (MTBF)
46.2 years
Mean time to repair
(MTTR)
2 hours
Availability > 0.99999
Service port surge
protection
Common mode: ±6 kV
