Huawei S5700 Series Hardware Description

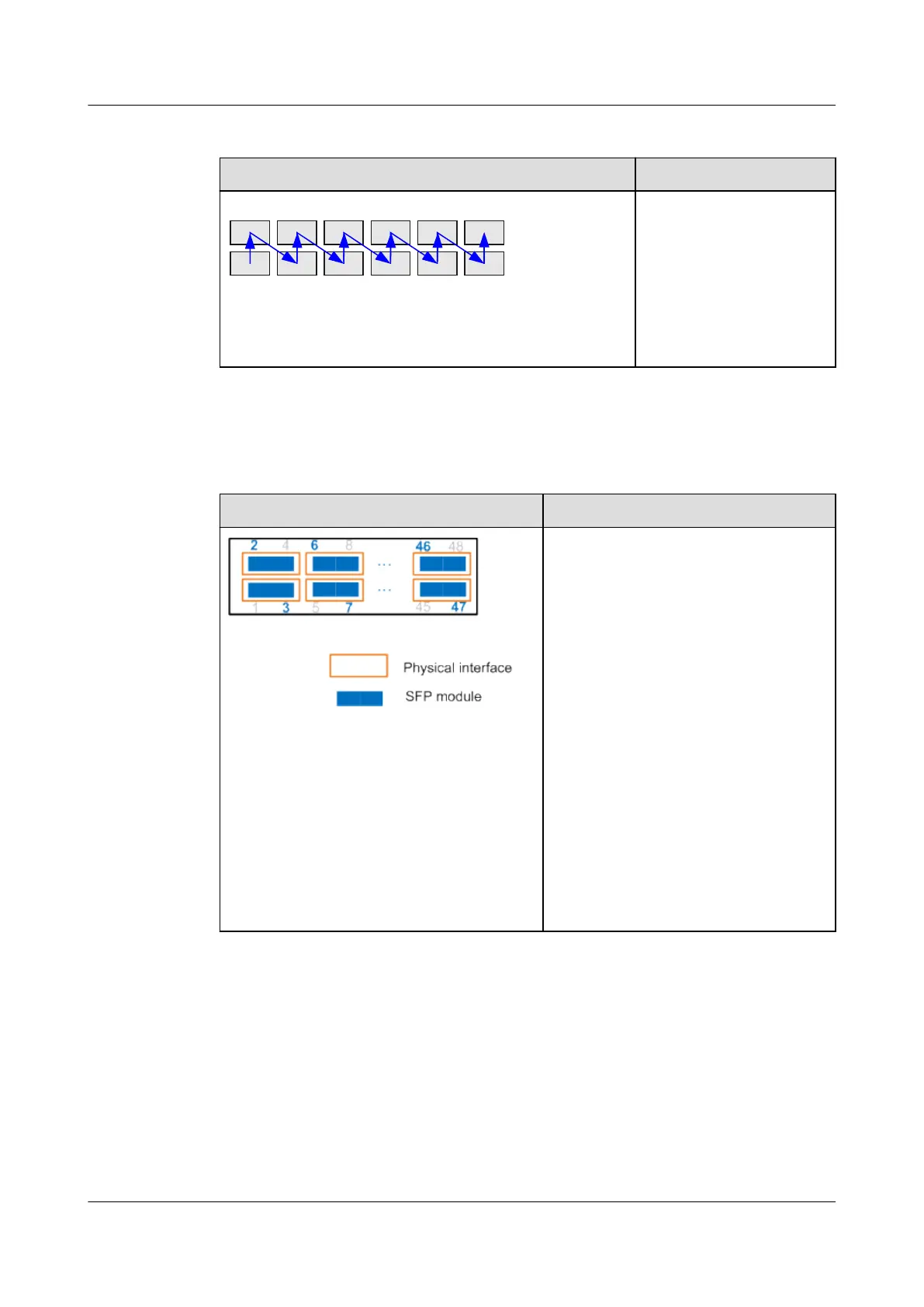

Table 3-2 Port numbering conventions
Port Numbering Diagram Description
1 3 5 7 9 11
2 4 6 8 10 12
There are two rows of
service ports on the device.
These ports are numbered
from bottom to top and left
to right, starting from 1.
For example, the port on
the top left is numbered
0/0/2.
Table 3-3 describes the CSFP port numbering conventions.
Table 3-3 CSFP port numbering conventions
Port Numbering Diagram
Description
For example, an S5700-52X-LI-48CS-AC
has 24 physical ports located in two rows
of service ports, 12 ports in each row.
When all the ports have SFP optical
modules installed, the ports are numbered
as follows:
l The ports in the lower row are
numbered starting with 3 from left to
right, with an increment of 4.
l The ports in the upper row are
numbered starting with 2 from left to
right, with an increment of 4.
For example, with SFP optical modules
installed, the first port at the lower left of
the panel is numbered 0/0/3; the second
port at the lower left is numbered 0/0/7;
the first port at the upper left is numbered
0/0/2; the second port at the upper left is
numbered 0/0/6.
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
74

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
