Huawei S5700 Series Hardware Description

Appearance and Structure

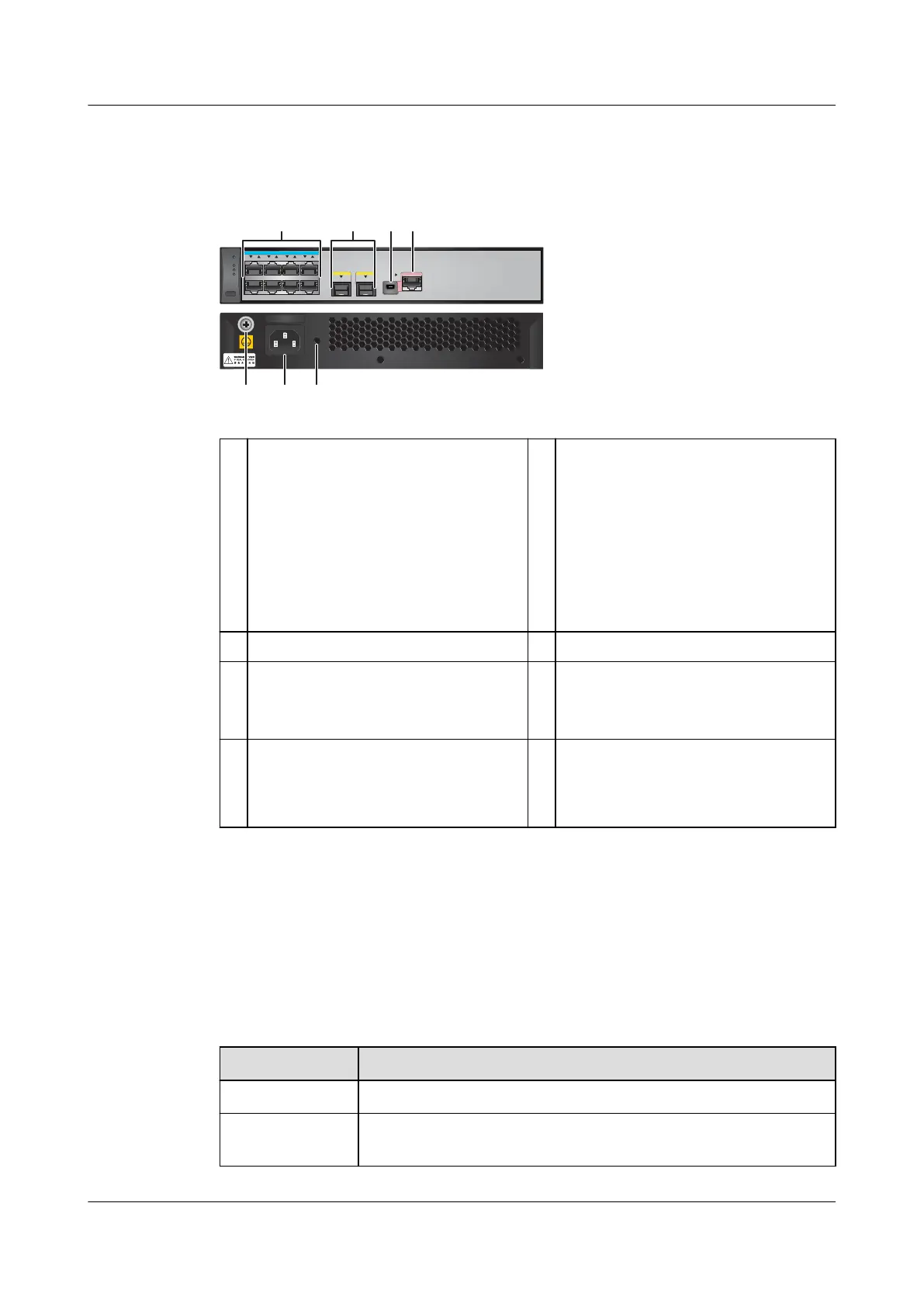

Figure 3-2 S5700-10P-LI-AC appearance
MODE
SPED
STAT
SYS
PWR
HUAWEI
CONSOLE
109
12 34 56 78
S5700-10P-LI-AC
1234
~100-240V;50/60Hz;0.8A
5 6 7
1 Eight 10/100/1000BASE-T ports 2 Two 1000BASE-X ports
Applicable modules:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (applicable in
V200R002C00 and later versions)
3 One mini USB port 4 One console port
5 Ground screw
NOTE
It is used with a ground cable.
6 AC socket
NOTE
It is used with an AC power cable.
7 Jack for AC terminal locking latch
NOTE
The AC terminal locking latch is not
delivered with the switch.
- -
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at
10/100/1000 Mbit/s, and must use network cables. Table 3-5 describes the attributes of a
10/100/1000BASE-T Ethernet electrical port.
Table 3-5 Attributes of a 10/100/1000BASE-T Ethernet electrical port
Attribute
Description
Connector type RJ45
Standards
compliance
IEEE802.3, IEEE802.3u, IEEE802.3ab
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
76

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
