Version Mapping
Table 3-9 lists the mapping between the S5700-10P-PWR-LI-AC chassis and software
versions.
Table 3-9 Version mapping
Series
Model Software Version
S5700-LI S5700-10P-PWR-LI-AC V200R002C00 and later versions
NOTE
This model does not match V200R001C01,
V200R003C02, V200R003C10,
V200R005C00SPC500, V200R005C01,
V200R005C02, V200R005C03, or
V200R007C10.
Appearance and Structure

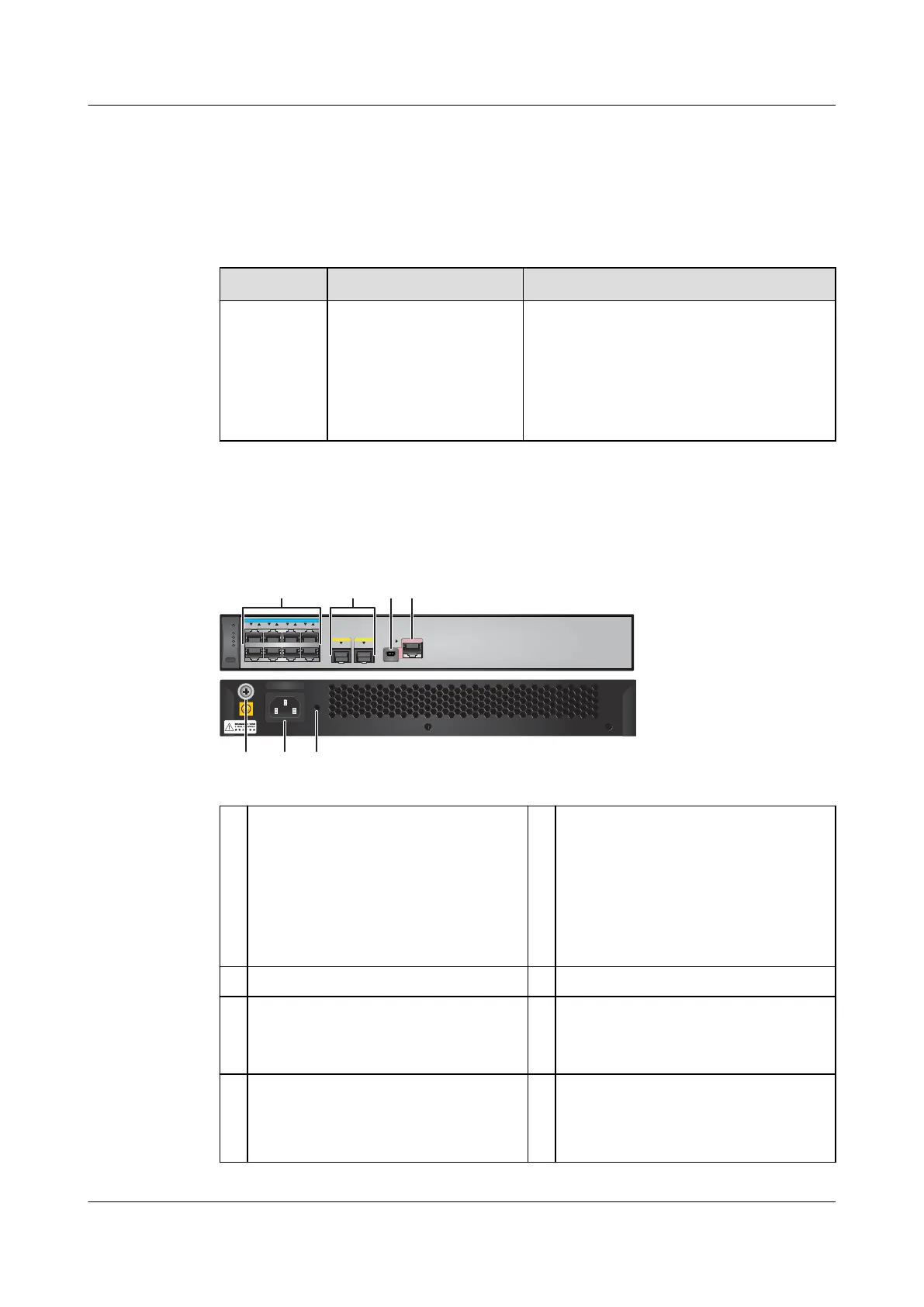

Figure 3-4 S5700-10P-PWR-LI-AC appearance
MODE
SPED
STAT
PoE
SYS
PWR
HUAWEI
CONSOLE
9 10
12 34 56 78
S5700-10P-PWR-LI-AC
1234
5
~100-240V;50/60Hz;2.5A-1.25A
6 7
1
Eight PoE+ 10/100/1000BASE-T ports 2 Two 1000BASE-X ports
Applicable modules:
l GE optical module (80 km and 100
km modules not supported)
l GE copper module (applicable in
V200R002C00 and later versions)
3 One mini USB port 4 One console port
5 Ground screw
NOTE
It is used with a ground cable.
6 AC socket
NOTE
It is used with an AC power cable.
7 Jack for AC terminal locking latch
NOTE
The AC terminal locking latch is not
delivered with the switch.
- -
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
