5.2.2 Version Mapping
Table 5-2 lists the mapping between the ES5D21Q04Q01 and software versions.
Table 5-2 Mappings between the ES5D21Q04Q01 and software versions
Card Name Software Version
ES5D21Q04Q01 V200R008C00 and later versions
5.2.3 Functions and Features
Table 5-3 describes functions and features of the ES5D21Q04Q01.
Table 5-3 Functions and features of the ES5D21Q04Q01
Function and Feature Description
Basic functions Provides four 40GE QSFP+ optical ports to
implement data access and line-speed switching.
Each 40GE port can be split into four 10GE ports.
Hot swap Supported
Service port stacking Ports on the card can be used as stack ports.
NOTE
A 40GE port cannot be used as a stack port after it is split
into four 10GE ports.
5.2.4 Indicators and Ports
Indicator Description

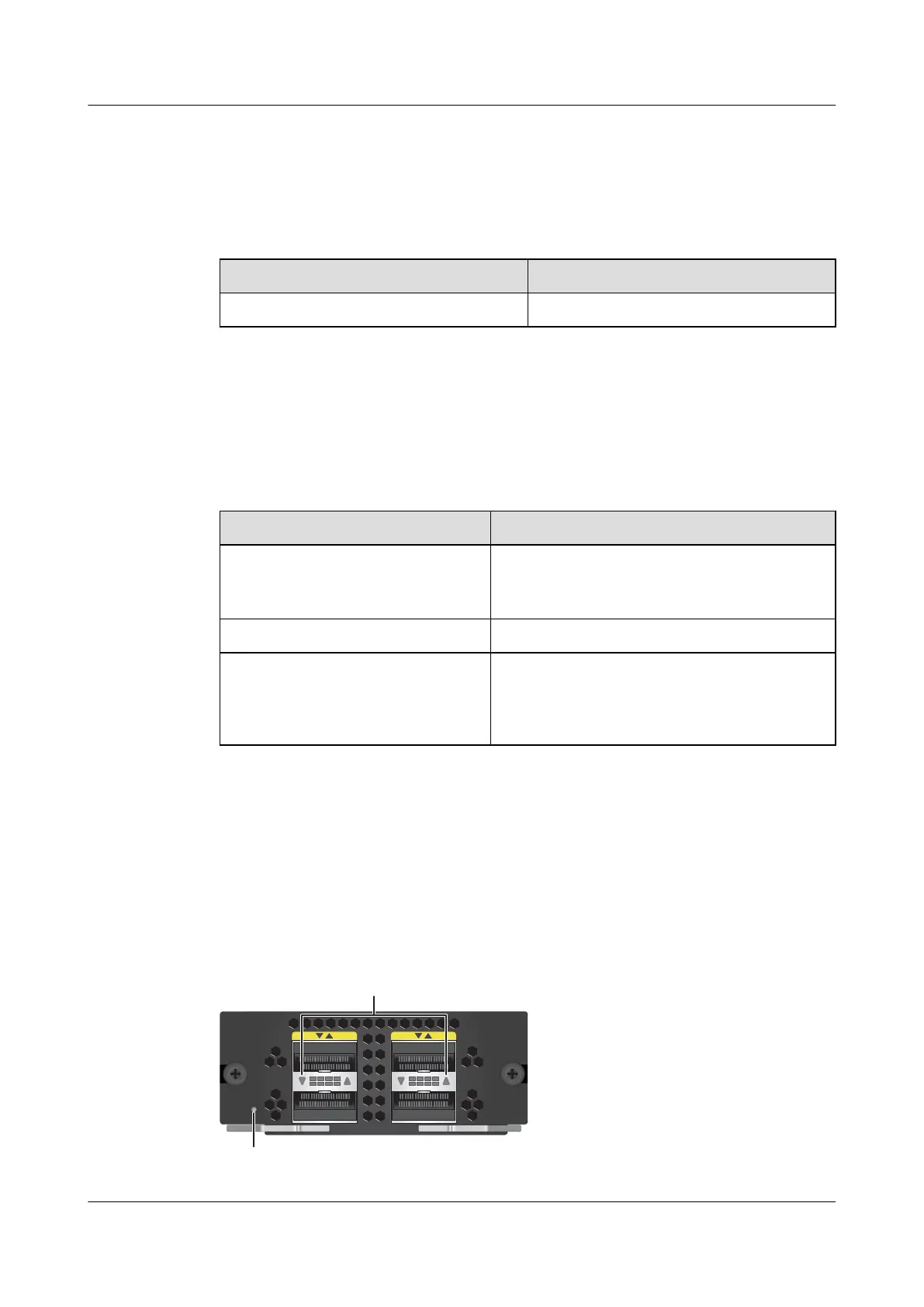

Figure 5-2 shows indicators on the ES5D21Q04Q01.
Figure 5-2 Indicators on the ES5D21Q04Q01
ES5D21Q04Q01
40G
STAT
12 34
1
2
