4.2 FAN-060B-B Fan Module
Version Mapping
Table 4-4 lists the switch chassis matching a FAN-060B-B fan module.
Table 4-4 Switch chassis matching a FAN-060B-B fan module
Fan Module
Name
Product Support
FAN-060B-B S6720-30C-EI-24S-AC and S6720-54C-EI-48S-AC
Appearance

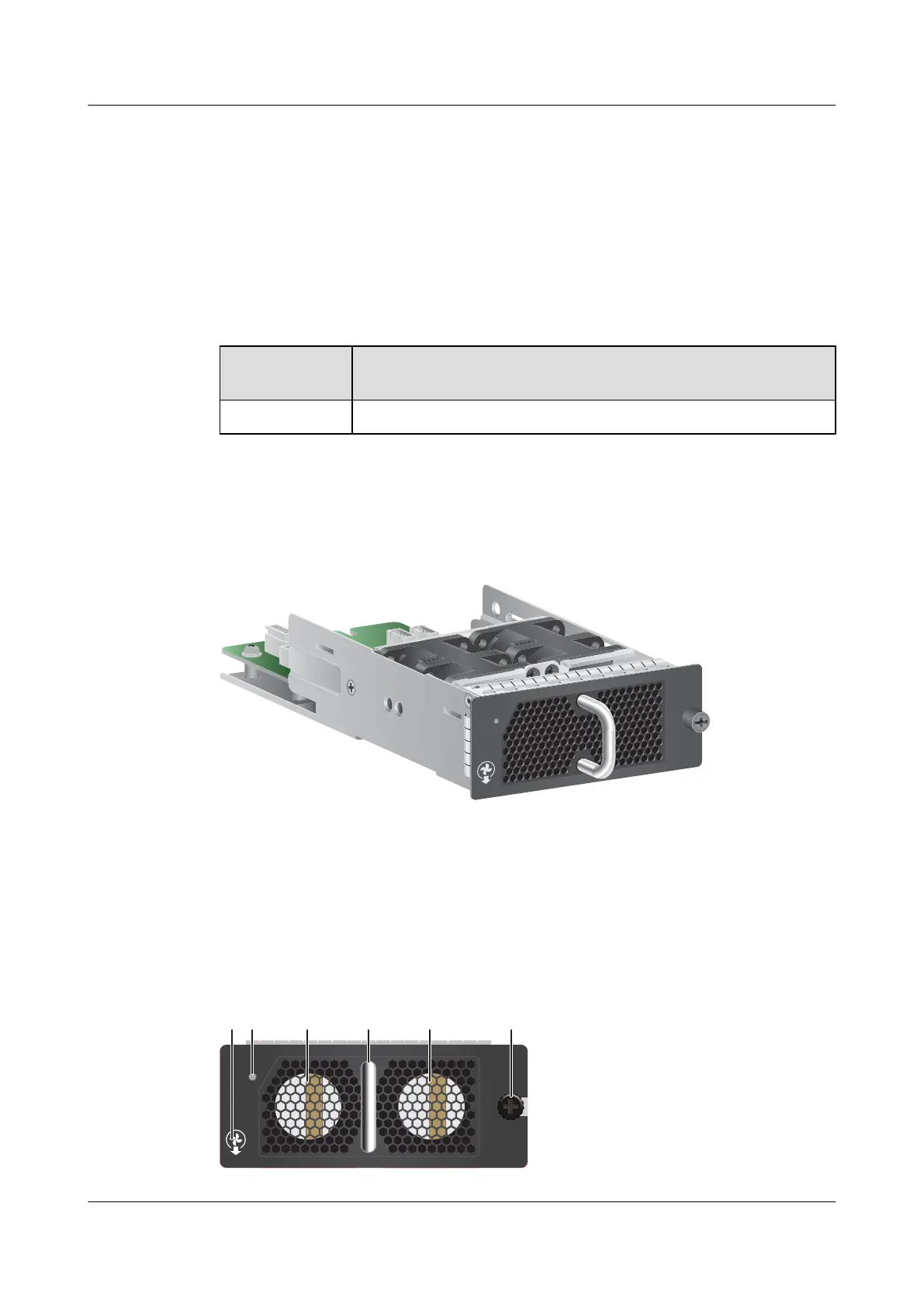

Figure 4-3 shows the appearance of a FAN-060B-B fan module.
Figure 4-3 Appearance of a FAN-060B-B fan module
Function
A FAN-060B-B fan module has two fans to cool the chassis. It is hot swappable.
Panel
Figure 4-4 shows the panel of a FAN-060B-B fan module.
Figure 4-4 Panel of a FAN-060B-B fan module
S6700 Series Ethernet Switches
Hardware Description
4 Fan Modules
