Types of DC Power Cables
DC power cables include a -48 V power return cable and a -48 V power cable. The -48 V power
return cable is connected to a terminal marked RTN (+), and the -48 V power cable is connected
to a terminal marked NEG (–).
Appearance and Structure
Figure 6-14 and Figure 6-15 show the appearance and structure of the 48 V power return cable
and -48 V power cable.

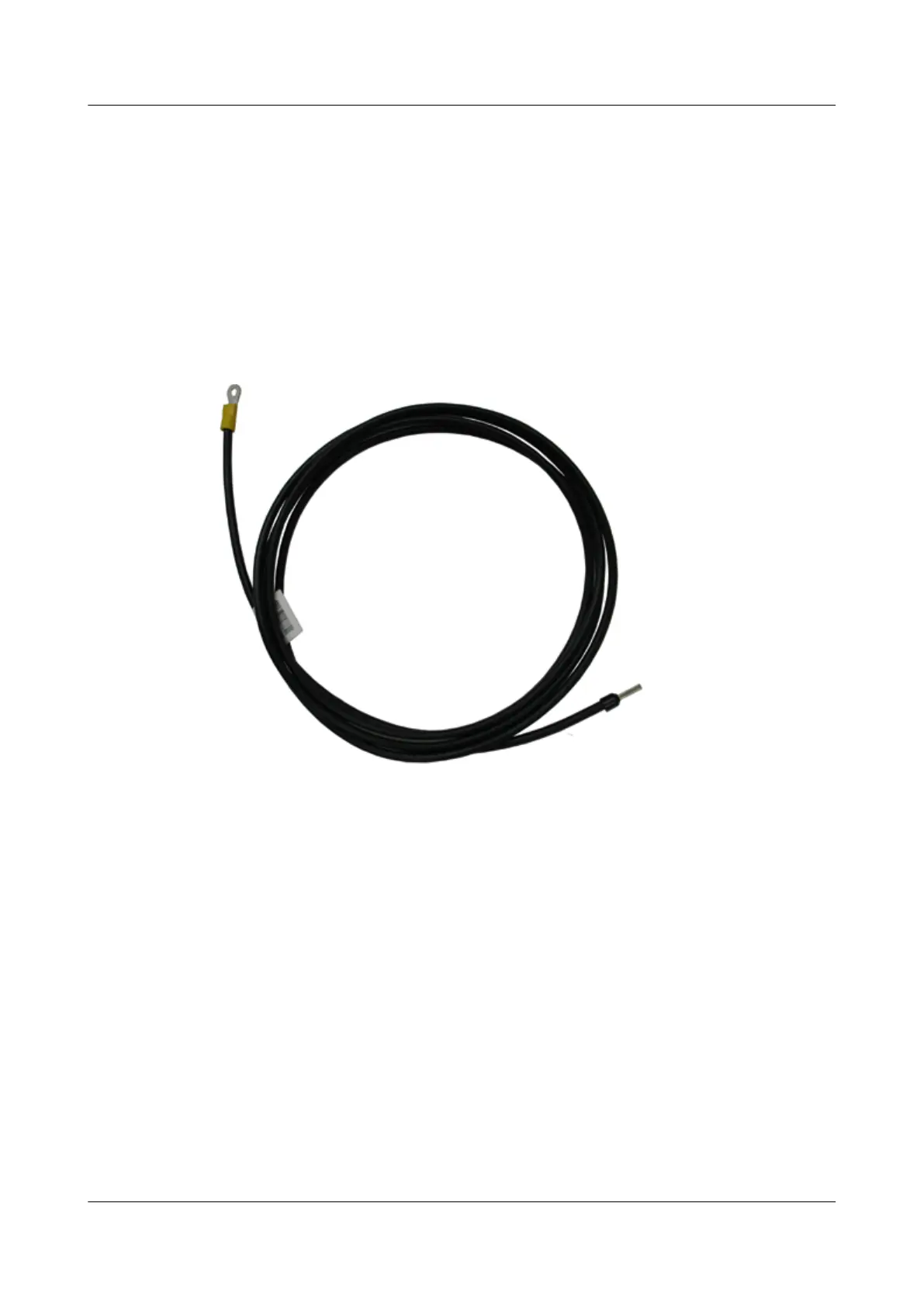

Figure 6-14 Appearance of a -48 V power return cable
